F3W-MA

Smart Muting Actuator

F3W-MA

Integrated muting sensor based on multi-beam photoelectric sensor

Troubleshooting

Select the indicator status to see the error cause and solution.

(Unit: mm)

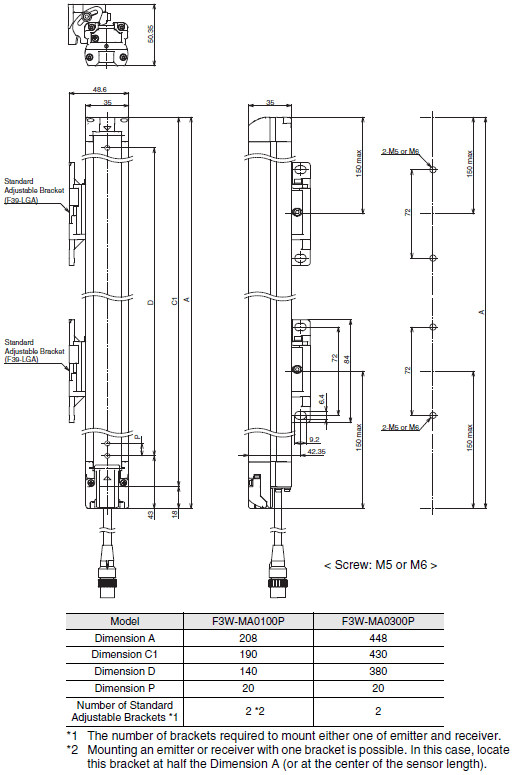

Mounted with Standard Adjustable Brackets (F39-LGA)

Backside Mounting

F3W-MA Dimensions 2

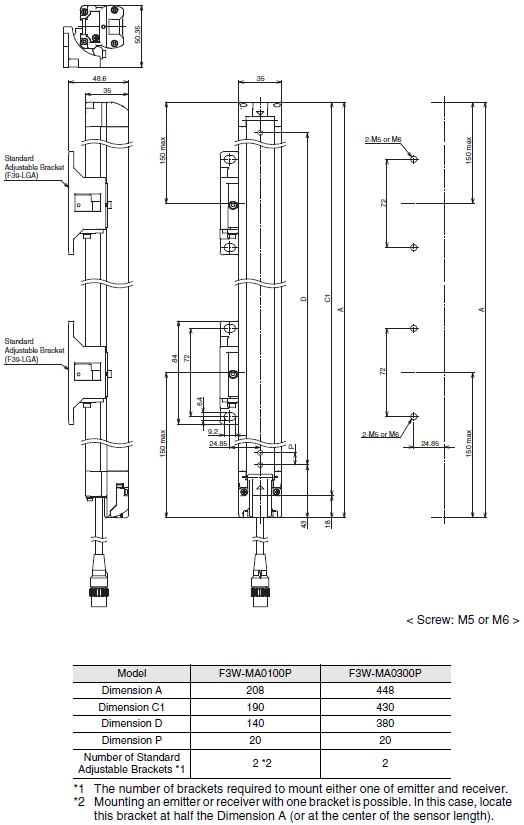

Side Mounting

F3W-MA Dimensions 3

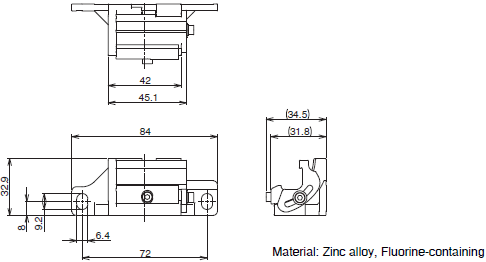

Standard Adjustable Bracket (F39-LGA, sold separately)

F3W-MA Dimensions 4

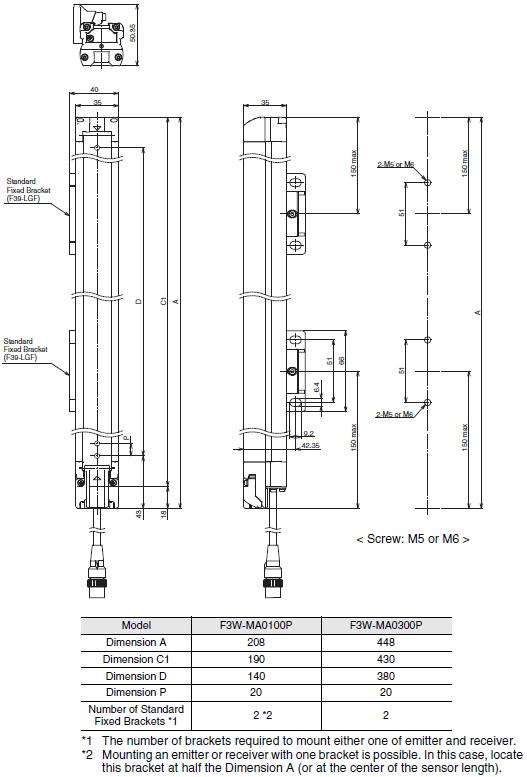

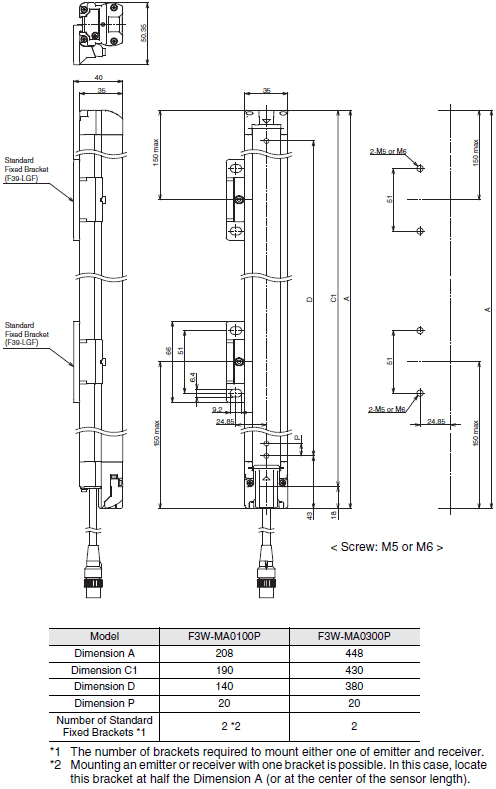

Mounted with Standard Fixed Brackets (F39-LGF)

Backside Mounting

F3W-MA Dimensions 6

Side Mounting

F3W-MA Dimensions 7

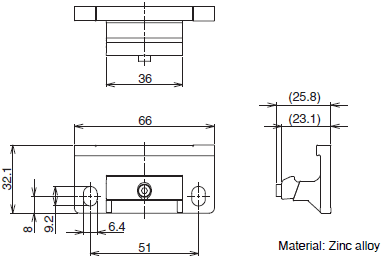

Standard Fixed Bracket (F39-LGF, sold separately)

F3W-MA Dimensions 8

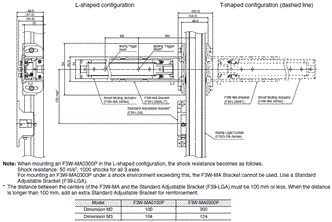

Mounted with F3W-MA Bracket (F39-LGMA[]) and Standard Adjustable Bracket (F39-LGA) on F3SG-RA

F3W-MA Dimensions 9

Accessories

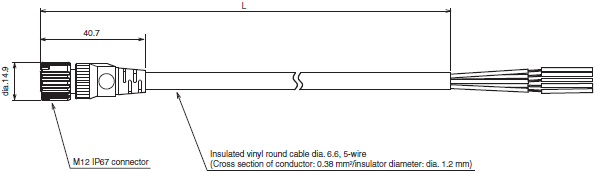

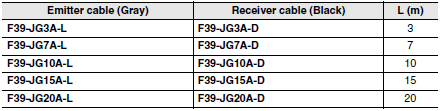

Single-Ended Cable for Emitter (F39-JG[]A-L, sold separately)

F3W-MA Dimensions 11

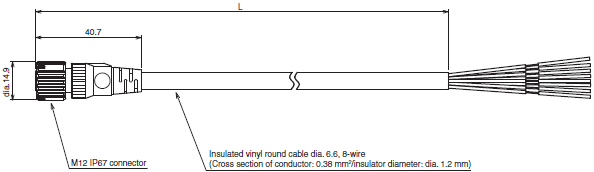

Single-Ended Cable for Receiver (F39-JG[]A-D, sold separately)

F3W-MA Dimensions 12
F3W-MA Dimensions 13

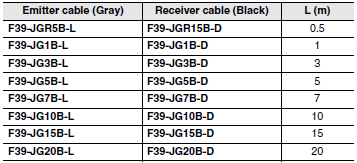

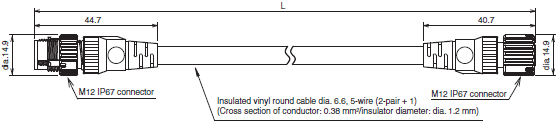

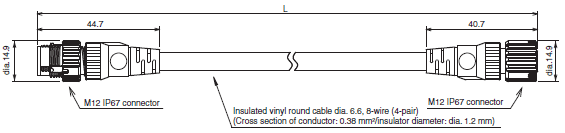

Double-Ended Cable for Emitter: Cable for extension (F39-JG[]B-L, sold separately)

F3W-MA Dimensions 14

Double-Ended Cable for Receiver: Cable for extension (F39-JG[]B-D, sold separately)

F3W-MA Dimensions 15
F3W-MA Dimensions 16

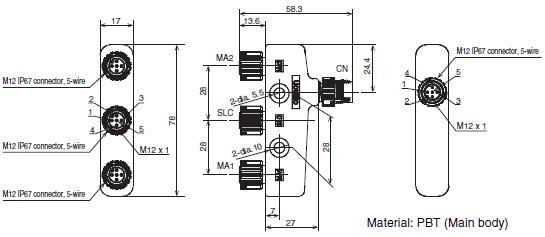

4-Joint Plug/Socket Connector for Emitter (F39-GCN4-L, sold separately)

F3W-MA Dimensions 17

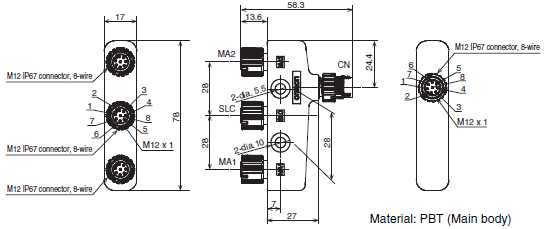

4-Joint Plug/Socket Connector for Receiver (F39-GCN4-D, sold separately)

F3W-MA Dimensions 18
