A22NN / A22NL

Pushbutton Switches

A22NN / A22NL

22-mm dia. Pushbutton Switches. Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring.

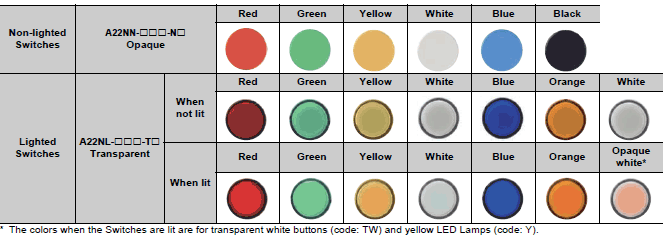

Button Colors

A22NN / A22NL Lineup 1

List of Models

A22NN / A22NL Lineup 2

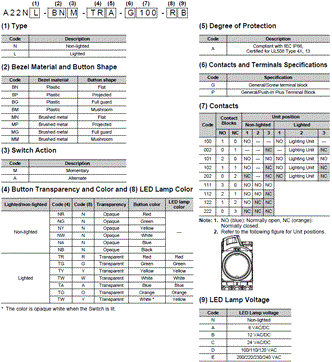

Model Number Structure

Model Number Legend

Shipped as a set that includes the Operation Unit, LED Lamp (lighted models only), Mounting Collar, Contact Block, and Lighting Unit (lighted models only).
For information on combinations, refer to Ordering Information on below.

Model Numbers for Sets

A22NN / A22NL Lineup 5

Ordering Information

Model Numbers for Sets

Shipped as a set that includes the Operation Unit, LED Lamp (lighted models only), Mounting Collar, Contact Block, and Lighting Unit (lighted models only).

Non-lighted, Flat Switches

Appearance Contacts Momentary action (self-resetting) (4)(4)
Button color
(7)(7)(7)
Contacts
Model
Plastic bezels
3443_lu_4_1
1 A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW:Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW:Transparent, white
UA: Transparent, blue
UO: Transparent, orange
100
002
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3443_lu_4_2
1 A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
3443_lu_4_3
1 A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN

Appearance Contacts Alternate action (self-holding) (4)(4)
Button color
(7)(7)(7)
Contacts
Model
Plastic bezels
3443_lu_4_1
1 A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW:Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW:Transparent, white
UA: Transparent, blue
UO: Transparent, orange
100
002
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3443_lu_4_2
1 A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
3443_lu_4_3
1 A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN

Lighted, Flat Switches

Appearance Con-
tacts
Momentary action
(self-resetting)
(4)(4)
Button color
(7)(7)(7)
Contacts
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Model
Plastic bezels
3443_lu_5_1
1 A22NL-BNM-
(4)(4)A-G(7)(7)(7)-(8)(9)
TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange
100
002
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BNM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-BNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
3443_lu_5_2
1 A22NL-MNM-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-MNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MNM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-MNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
3443_lu_5_3
1 A22NL-RNM-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-RNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RNM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-RNM-
(4)(4)A-P(7)(7)(7)-(8)(9)

Appearance Con-
tacts
Alternate action
(self-holding)
(4)(4)
Button color
(7)(7)(7)
Contacts
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Model
Plastic bezels
3443_lu_5_1
1 A22NL-BNA-
(4)(4)A-G(7)(7)(7)-(8)(9)
TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange
100
002
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BNA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-BNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
3443_lu_5_2
1 A22NL-MNA-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-MNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MNA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-MNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
3443_lu_5_3
1 A22NL-RNA-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-RNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RNA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-RNA-
(4)(4)A-P(7)(7)(7)-(8)(9)

Note: Normally, the Button and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Button and yellow LED. A22N[]-[][][]-TWA-[][][][]-Y[]

Non-lighted, Projected Switches

Appearance Contacts Momentary action (self-resetting) (4)(4)
Button color
(7)(7)(7)
Contacts
Model
Plastic bezels
3443_lu_6_1
1 A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange
100
002
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3443_lu_6_2
1 A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
3443_lu_6_3
1 A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN

Appearance Contacts Alternate action (self-holding) (4)(4)
Button color
(7)(7)(7)
Contacts
Model
Plastic bezels
3443_lu_6_1
1 A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange
100
002
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3443_lu_6_2
1 A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
3443_lu_6_3
1 A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN

Lighted, Projected Switches

Appearance Con-
tacts
Momentary action
(self-resetting)
(4)(4)
Button color
(7)(7)(7)
Contacts
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Model
Plastic bezels
3443_lu_7_1
1 A22NL-BPM-
(4)(4)A-G(7)(7)(7)-(8)(9)
TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange
100
002
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BPM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-BPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
3443_lu_7_2
1 A22NL-MPM-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-MPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MPM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-MPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
3443_lu_7_3
1 A22NL-RPM-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-RPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RPM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-RPM-
(4)(4)A-P(7)(7)(7)-(8)(9)

Appearance Con-
tacts
Alternate action
(self-holding)
(4)(4)
Button color
(7)(7)(7)
Contacts
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Model
Plastic bezels
3443_lu_7_1
1 A22NL-BPA-
(4)(4)A-G(7)(7)(7)-(8)(9)
TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange
100
002
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BPA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-BPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
3443_lu_7_2
1 A22NL-MPA-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-MPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MPA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-MPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
3443_lu_7_3
1 A22NL-RPA-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-RPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RPA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-RPA-
(4)(4)A-P(7)(7)(7)-(8)(9)

Note: Normally, the Button and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Button and yellow LED. A22N[]-[][][]-TWA-[][][][]-Y[]

Non-lighted, Full-guard Switches

Appearance Contacts Momentary action (self-resetting) (4)(4)
Button color
(7)(7)(7)
Contacts
Model
Plastic bezels
3443_lu_8_1
1 A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange
100
002
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3443_lu_8_2
1 A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN

Appearance Contacts Alternate action (self-holding) (4)(4)
Button color
(7)(7)(7)
Contacts
Model
Plastic bezels
3443_lu_8_1
1 A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange
100
002
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3443_lu_8_2
1 A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN

Lighted, Full-guard Switches

Appearance Con-
tacts
Momentary action
(self-resetting)
(4)(4)
Button color
(7)(7)(7)
Contacts
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Model
Plastic bezels
3443_lu_9_1
1 A22NL-BGM-
(4)(4)A-G(7)(7)(7)-(8)(9)
TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange
100
002
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BGM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BGM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-BGM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
3443_lu_9_2
1 A22NL-MGM-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-MGM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MGM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-MGM-
(4)(4)A-P(7)(7)(7)-(8)(9)

Appearance Con-
tacts
Alternate action
(self-holding)
(4)(4)
Button color
(7)(7)(7)
Contacts
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Model
Plastic bezels
3443_lu_9_1
1 A22NL-BGA-
(4)(4)A-G(7)(7)(7)-(8)(9)
TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange
100
002
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BGA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BGA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-BGA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
3443_lu_9_2
1 A22NL-MGA-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-MGA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MGA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-MGA-
(4)(4)A-P(7)(7)(7)-(8)(9)

Note: Normally, the Button and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Button and yellow LED. A22N[]-[][][]-TWA-[][][][]-Y[]

Non-lighted, Mushroom Switches

Appearance Contacts Momentary action (self-resetting) (4)(4)
Button color
(7)(7)(7)
Contacts
Model
Plastic bezels
3443_lu_10_1
1 A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange
100
002
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3443_lu_10_2
1 A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
3443_lu_10_3
1 A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN

Appearance Contacts Alternate action (self-holding) (4)(4)
Button color
(7)(7)(7)
Contacts
Model
Plastic bezels
3443_lu_10_1
1 A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange
100
002
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3443_lu_10_2
1 A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
3443_lu_10_3
1 A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN

Lighted, Mushroom Switches

Appearance Con-
tacts
Momentary action
(self-resetting)
(4)(4)
Button color
(7)(7)(7)
Contacts
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Model
Plastic bezels
3443_lu_11_1
1 A22NL-BMM-
(4)(4)A-G(7)(7)(7)-(8)(9)
TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange
100
002
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BMM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-BMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
3443_lu_11_2
1 A22NL-MMM-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-MMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MMM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-MMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
3443_lu_11_3
1 A22NL-RMM-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-RMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RMM-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-RMM-
(4)(4)A-P(7)(7)(7)-(8)(9)

Appearance Con-
tacts
Alternate action
(self-holding)
(4)(4)
Button color
(7)(7)(7)
Contacts
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Model
Plastic bezels
3443_lu_11_1
1 A22NL-BMA-
(4)(4)A-G(7)(7)(7)-(8)(9)
TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange
100
002
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BMA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-BMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
3443_lu_11_2
1 A22NL-MMA-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-MMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MMA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-MMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
3443_lu_11_3
1 A22NL-RMA-
(4)(4)A-G(7)(7)(7)-(8)(9)
100
002
A22NL-RMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RMA-
(4)(4)A-G(7)(7)(7)-(8)(9)
101
102
202
A22NL-RMA-
(4)(4)A-P(7)(7)(7)-(8)(9)

Note: Normally, the Button and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Button and yellow LED. A22N[]-[][][]-TWA-[][][][]-Y[]

Switch Structure

You can order Operation Units, LED Lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. Use them in combination for models that are not available as assembled Switches. They can also be used as inventory for maintenance parts.

A22NN / A22NL Lineup 28

Subassemblies

You can order Operation Units, LED Lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. Use them in combination for models that are not available as assembled Switches. They can also be used as inventory for maintenance parts.

Operation Units

Bezel material and button shape Plastic, flat
3443_lu_13_1
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-BNM-NRA A22NZ-BNA-NRA
Opaque Green A22NZ-BNM-NGA A22NZ-BNA-NGA
Opaque Yellow A22NZ-BNM-NYA A22NZ-BNA-NYA
Opaque White A22NZ-BNM-NWA A22NZ-BNA-NWA
Opaque Blue A22NZ-BNM-NAA A22NZ-BNA-NAA
Opaque Black A22NZ-BNM-NBA A22NZ-BNA-NBA
Transparent Red A22NZ-BNM-URA A22NZ-BNA-URA
Transparent Green A22NZ-BNM-UGA A22NZ-BNA-UGA
Transparent Yellow A22NZ-BNM-UYA A22NZ-BNA-UYA
Transparent White A22NZ-BNM-UWA A22NZ-BNA-UWA
Transparent Blue A22NZ-BNM-UAA A22NZ-BNA-UAA
Transparent Orange A22NZ-BNM-UOA A22NZ-BNA-UOA
Lighted Transparent Red A22NZ-BNM-TRA A22NZ-BNA-TRA
Transparent Green A22NZ-BNM-TGA A22NZ-BNA-TGA
Transparent Yellow A22NZ-BNM-TYA A22NZ-BNA-TYA
Transparent White A22NZ-BNM-TWA A22NZ-BNA-TWA
Transparent Blue A22NZ-BNM-TAA A22NZ-BNA-TAA
Transparent Orange A22NZ-BNM-TOA A22NZ-BNA-TOA

Bezel material and button shape Plastic, projected
3443_lu_13_2
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-BPM-NRA A22NZ-BPA-NRA
Opaque Green A22NZ-BPM-NGA A22NZ-BPA-NGA
Opaque Yellow A22NZ-BPM-NYA A22NZ-BPA-NYA
Opaque White A22NZ-BPM-NWA A22NZ-BPA-NWA
Opaque Blue A22NZ-BPM-NAA A22NZ-BPA-NAA
Opaque Black A22NZ-BPM-NBA A22NZ-BPA-NBA
Transparent Red A22NZ-BPM-URA A22NZ-BPA-URA
Transparent Green A22NZ-BPM-UGA A22NZ-BPA-UGA
Transparent Yellow A22NZ-BPM-UYA A22NZ-BPA-UYA
Transparent White A22NZ-BPM-UWA A22NZ-BPA-UWA
Transparent Blue A22NZ-BPM-UAA A22NZ-BPA-UAA
Transparent Orange A22NZ-BPM-UOA A22NZ-BPA-UOA
Lighted Transparent Red A22NZ-BPM-TRA A22NZ-BPA-TRA
Transparent Green A22NZ-BPM-TGA A22NZ-BPA-TGA
Transparent Yellow A22NZ-BPM-TYA A22NZ-BPA-TYA
Transparent White A22NZ-BPM-TWA A22NZ-BPA-TWA
Transparent Blue A22NZ-BPM-TAA A22NZ-BPA-TAA
Transparent Orange A22NZ-BPM-TOA A22NZ-BPA-TOA

Bezel material and button shape Plastic, full-guard
3443_lu_14_1
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-BGM-NRA A22NZ-BGA-NRA
Opaque Green A22NZ-BGM-NGA A22NZ-BGA-NGA
Opaque Yellow A22NZ-BGM-NYA A22NZ-BGA-NYA
Opaque White A22NZ-BGM-NWA A22NZ-BGA-NWA
Opaque Blue A22NZ-BGM-NAA A22NZ-BGA-NAA
Opaque Black A22NZ-BGM-NBA A22NZ-BGA-NBA
Transparent Red A22NZ-BGM-URA A22NZ-BGA-URA
Transparent Green A22NZ-BGM-UGA A22NZ-BGA-UGA
Transparent Yellow A22NZ-BGM-UYA A22NZ-BGA-UYA
Transparent White A22NZ-BGM-UWA A22NZ-BGA-UWA
Transparent Blue A22NZ-BGM-UAA A22NZ-BGA-UAA
Transparent Orange A22NZ-BGM-UOA A22NZ-BGA-UOA
Lighted Transparent Red A22NZ-BGM-TRA A22NZ-BGA-TRA
Transparent Green A22NZ-BGM-TGA A22NZ-BGA-TGA
Transparent Yellow A22NZ-BGM-TYA A22NZ-BGA-TYA
Transparent White A22NZ-BGM-TWA A22NZ-BGA-TWA
Transparent Blue A22NZ-BGM-TAA A22NZ-BGA-TAA
Transparent Orange A22NZ-BGM-TOA A22NZ-BGA-TOA

Bezel material and button shape Plastic, mushroom
3443_lu_14_2
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-BMM-NRA A22NZ-BMA-NRA
Opaque Green A22NZ-BMM-NGA A22NZ-BMA-NGA
Opaque Yellow A22NZ-BMM-NYA A22NZ-BMA-NYA
Opaque White A22NZ-BMM-NWA A22NZ-BMA-NWA
Opaque Blue A22NZ-BMM-NAA A22NZ-BMA-NAA
Opaque Black A22NZ-BMM-NBA A22NZ-BMA-NBA
Transparent Red A22NZ-BMM-URA A22NZ-BMA-URA
Transparent Green A22NZ-BMM-UGA A22NZ-BMA-UGA
Transparent Yellow A22NZ-BMM-UYA A22NZ-BMA-UYA
Transparent White A22NZ-BMM-UWA A22NZ-BMA-UWA
Transparent Blue A22NZ-BMM-UAA A22NZ-BMA-UAA
Transparent Orange A22NZ-BMM-UOA A22NZ-BMA-UOA
Lighted Transparent Red A22NZ-BMM-TRA A22NZ-BMA-TRA
Transparent Green A22NZ-BMM-TGA A22NZ-BMA-TGA
Transparent Yellow A22NZ-BMM-TYA A22NZ-BMA-TYA
Transparent White A22NZ-BMM-TWA A22NZ-BMA-TWA
Transparent Blue A22NZ-BMM-TAA A22NZ-BMA-TAA
Transparent Orange A22NZ-BMM-TOA A22NZ-BMA-TOA

Bezel material and button shape Brushed metal, flat
3443_lu_15_1
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-MNM-NRA A22NZ-MNA-NRA
Opaque Green A22NZ-MNM-NGA A22NZ-MNA-NGA
Opaque Yellow A22NZ-MNM-NYA A22NZ-MNA-NYA
Opaque White A22NZ-MNM-NWA A22NZ-MNA-NWA
Opaque Blue A22NZ-MNM-NAA A22NZ-MNA-NAA
Opaque Black A22NZ-MNM-NBA A22NZ-MNA-NBA
Transparent Red A22NZ-MNM-URA A22NZ-MNA-URA
Transparent Green A22NZ-MNM-UGA A22NZ-MNA-UGA
Transparent Yellow A22NZ-MNM-UYA A22NZ-MNA-UYA
Transparent White A22NZ-MNM-UWA A22NZ-MNA-UWA
Transparent Blue A22NZ-MNM-UAA A22NZ-MNA-UAA
Transparent Orange A22NZ-MNM-UOA A22NZ-MNA-UOA
Lighted Transparent Red A22NZ-MNM-TRA A22NZ-MNA-TRA
Transparent Green A22NZ-MNM-TGA A22NZ-MNA-TGA
Transparent Yellow A22NZ-MNM-TYA A22NZ-MNA-TYA
Transparent White A22NZ-MNM-TWA A22NZ-MNA-TWA
Transparent Blue A22NZ-MNM-TAA A22NZ-MNA-TAA
Transparent Orange A22NZ-MNM-TOA A22NZ-MNA-TOA

Bezel material and button shape Brushed metal, flat
3443_lu_15_2
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-MPM-NRA A22NZ-MPA-NRA
Opaque Green A22NZ-MPM-NGA A22NZ-MPA-NGA
Opaque Yellow A22NZ-MPM-NYA A22NZ-MPA-NYA
Opaque White A22NZ-MPM-NWA A22NZ-MPA-NWA
Opaque Blue A22NZ-MPM-NAA A22NZ-MPA-NAA
Opaque Black A22NZ-MPM-NBA A22NZ-MPA-NBA
Transparent Red A22NZ-MPM-URA A22NZ-MPA-URA
Transparent Green A22NZ-MPM-UGA A22NZ-MPA-UGA
Transparent Yellow A22NZ-MPM-UYA A22NZ-MPA-UYA
Transparent White A22NZ-MPM-UWA A22NZ-MPA-UWA
Transparent Blue A22NZ-MPM-UAA A22NZ-MPA-UAA
Transparent Orange A22NZ-MPM-UOA A22NZ-MPA-UOA
Lighted Transparent Red A22NZ-MPM-TRA A22NZ-MPA-TRA
Transparent Green A22NZ-MPM-TGA A22NZ-MPA-TGA
Transparent Yellow A22NZ-MPM-TYA A22NZ-MPA-TYA
Transparent White A22NZ-MPM-TWA A22NZ-MPA-TWA
Transparent Blue A22NZ-MPM-TAA A22NZ-MPA-TAA
Transparent Orange A22NZ-MPM-TOA A22NZ-MPA-TOA

Bezel material and button shape Brushed metal, full-guard
3443_lu_16_1
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-MGM-NRA A22NZ-MGA-NRA
Opaque Green A22NZ-MGM-NGA A22NZ-MGA-NGA
Opaque Yellow A22NZ-MGM-NYA A22NZ-MGA-NYA
Opaque White A22NZ-MGM-NWA A22NZ-MGA-NWA
Opaque Blue A22NZ-MGM-NAA A22NZ-MGA-NAA
Opaque Black A22NZ-MGM-NBA A22NZ-MGA-NBA
Transparent Red A22NZ-MGM-URA A22NZ-MGA-URA
Transparent Green A22NZ-MGM-UGA A22NZ-MGA-UGA
Transparent Yellow A22NZ-MGM-UYA A22NZ-MGA-UYA
Transparent White A22NZ-MGM-UWA A22NZ-MGA-UWA
Transparent Blue A22NZ-MGM-UAA A22NZ-MGA-UAA
Transparent Orange A22NZ-MGM-UOA A22NZ-MGA-UOA
Lighted Transparent Red A22NZ-MGM-TRA A22NZ-MGA-TRA
Transparent Green A22NZ-MGM-TGA A22NZ-MGA-TGA
Transparent Yellow A22NZ-MGM-TYA A22NZ-MGA-TYA
Transparent White A22NZ-MGM-TWA A22NZ-MGA-TWA
Transparent Blue A22NZ-MGM-TAA A22NZ-MGA-TAA
Transparent Orange A22NZ-MGM-TOA A22NZ-MGA-TOA

Bezel material and button shape Brushed metal, mushroom
3443_lu_16_2
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-MMM-NRA A22NZ-MMA-NRA
Opaque Green A22NZ-MMM-NGA A22NZ-MMA-NGA
Opaque Yellow A22NZ-MMM-NYA A22NZ-MMA-NYA
Opaque White A22NZ-MMM-NWA A22NZ-MMA-NWA
Opaque Blue A22NZ-MMM-NAA A22NZ-MMA-NAA
Opaque Black A22NZ-MMM-NBA A22NZ-MMA-NBA
Transparent Red A22NZ-MMM-URA A22NZ-MMA-URA
Transparent Green A22NZ-MMM-UGA A22NZ-MMA-UGA
Transparent Yellow A22NZ-MMM-UYA A22NZ-MMA-UYA
Transparent White A22NZ-MMM-UWA A22NZ-MMA-UWA
Transparent Blue A22NZ-MMM-UAA A22NZ-MMA-UAA
Transparent Orange A22NZ-MMM-UOA A22NZ-MMA-UOA
Lighted Transparent Red A22NZ-MMM-TRA A22NZ-MMA-TRA
Transparent Green A22NZ-MMM-TGA A22NZ-MMA-TGA
Transparent Yellow A22NZ-MMM-TYA A22NZ-MMA-TYA
Transparent White A22NZ-MMM-TWA A22NZ-MMA-TWA
Transparent Blue A22NZ-MMM-TAA A22NZ-MMA-TAA
Transparent Orange A22NZ-MMM-TOA A22NZ-MMA-TOA

Bezel material and button shape Metal, flat
3443_lu_17_1
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-RNM-NRA A22NZ-RNA-NRA
Opaque Green A22NZ-RNM-NGA A22NZ-RNA-NGA
Opaque Yellow A22NZ-RNM-NYA A22NZ-RNA-NYA
Opaque White A22NZ-RNM-NWA A22NZ-RNA-NWA
Opaque Blue A22NZ-RNM-NAA A22NZ-RNA-NAA
Opaque Black A22NZ-RNM-NBA A22NZ-RNA-NBA
Transparent Red A22NZ-RNM-URA A22NZ-RNA-URA
Transparent Green A22NZ-RNM-UGA A22NZ-RNA-UGA
Transparent Yellow A22NZ-RNM-UYA A22NZ-RNA-UYA
Transparent White A22NZ-RNM-UWA A22NZ-RNA-UWA
Transparent Blue A22NZ-RNM-UAA A22NZ-RNA-UAA
Transparent Orange A22NZ-RNM-UOA A22NZ-RNA-UOA
Lighted Transparent Red A22NZ-RNM-TRA A22NZ-RNA-TRA
Transparent Green A22NZ-RNM-TGA A22NZ-RNA-TGA
Transparent Yellow A22NZ-RNM-TYA A22NZ-RNA-TYA
Transparent White A22NZ-RNM-TWA A22NZ-RNA-TWA
Transparent Blue A22NZ-RNM-TAA A22NZ-RNA-TAA
Transparent Orange A22NZ-RNM-TOA A22NZ-RNA-TOA

Bezel material and button shape Metal, projected
3443_lu_17_2
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-RPM-NRA A22NZ-RPA-NRA
Opaque Green A22NZ-RPM-NGA A22NZ-RPA-NGA
Opaque Yellow A22NZ-RPM-NYA A22NZ-RPA-NYA
Opaque White A22NZ-RPM-NWA A22NZ-RPA-NWA
Opaque Blue A22NZ-RPM-NAA A22NZ-RPA-NAA
Opaque Black A22NZ-RPM-NBA A22NZ-RPA-NBA
Transparent Red A22NZ-RPM-URA A22NZ-RPA-URA
Transparent Green A22NZ-RPM-UGA A22NZ-RPA-UGA
Transparent Yellow A22NZ-RPM-UYA A22NZ-RPA-UYA
Transparent White A22NZ-RPM-UWA A22NZ-RPA-UWA
Transparent Blue A22NZ-RPM-UAA A22NZ-RPA-UAA
Transparent Orange A22NZ-RPM-UOA A22NZ-RPA-UOA
Lighted Transparent Red A22NZ-RPM-TRA A22NZ-RPA-TRA
Transparent Green A22NZ-RPM-TGA A22NZ-RPA-TGA
Transparent Yellow A22NZ-RPM-TYA A22NZ-RPA-TYA
Transparent White A22NZ-RPM-TWA A22NZ-RPA-TWA
Transparent Blue A22NZ-RPM-TAA A22NZ-RPA-TAA
Transparent Orange A22NZ-RPM-TOA A22NZ-RPA-TOA

Bezel material and button shape Metal, mushroom
3443_lu_18_1
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-RMM-NRA A22NZ-RMA-NRA
Opaque Green A22NZ-RMM-NGA A22NZ-RMA-NGA
Opaque Yellow A22NZ-RMM-NYA A22NZ-RMA-NYA
Opaque White A22NZ-RMM-NWA A22NZ-RMA-NWA
Opaque Blue A22NZ-RMM-NAA A22NZ-RMA-NAA
Opaque Black A22NZ-RMM-NBA A22NZ-RMA-NBA
Transparent Red A22NZ-RMM-URA A22NZ-RMA-URA
Transparent Green A22NZ-RMM-UGA A22NZ-RMA-UGA
Transparent Yellow A22NZ-RMM-UYA A22NZ-RMA-UYA
Transparent White A22NZ-RMM-UWA A22NZ-RMA-UWA
Transparent Blue A22NZ-RMM-UAA A22NZ-RMA-UAA
Transparent Orange A22NZ-RMM-UOA A22NZ-RMA-UOA
Lighted Transparent Red A22NZ-RMM-TRA A22NZ-RMA-TRA
Transparent Green A22NZ-RMM-TGA A22NZ-RMA-TGA
Transparent Yellow A22NZ-RMM-TYA A22NZ-RMA-TYA
Transparent White A22NZ-RMM-TWA A22NZ-RMA-TWA
Transparent Blue A22NZ-RMM-TAA A22NZ-RMA-TAA
Transparent Orange A22NZ-RMM-TOA A22NZ-RMA-TOA

Subassemblies (Common)

Subassemblies

You can order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

LED Lamps

Appearance Rated
voltage
Model
Color 6 VAC/DC 12 VAC/DC 24 VAC/DC 100/110/120
VAC
200/220/230/
240 VAC
a254-e1_lu_1_1 Red A22NZ-L-RA A22NZ-L-RB A22NZ-L-RC A22NZ-L-RD A22NZ-L-RE
Green A22NZ-L-GA A22NZ-L-GB A22NZ-L-GC A22NZ-L-GD A22NZ-L-GE
Yellow A22NZ-L-YA A22NZ-L-YB A22NZ-L-YC A22NZ-L-YD A22NZ-L-YE
White A22NZ-L-WA A22NZ-L-WB A22NZ-L-WC A22NZ-L-WD A22NZ-L-WE
Blue A22NZ-L-AA A22NZ-L-AB A22NZ-L-AC A22NZ-L-AD A22NZ-L-AE
Orange A22NZ-L-OA A22NZ-L-OB A22NZ-L-OC A22NZ-L-OD A22NZ-L-OE

Mounting Collar

Appearance Model
a254-e1_lu_2_1 A22NZ-H-01

Contact Blocks

Appearance Terminals Specifications Contacts Model
a254-e1_lu_3_1 Screw terminal block SPST-NO (blue) A22NZ-S-G1A
SPST-NC (orange) A22NZ-S-G1B
a254-e1_lu_3_2 Push-In Plus terminal block SPST-NO (blue) A22NZ-S-P1A
SPST-NC (red) A22NZ-S-P1B
a254-e1_lu_3_3 Push-In Plus terminal block DPST-NO (blue) A22NZ-S-P2A
DPST-NC (red) A22NZ-S-P2B
SPST-NO/SPST-NC (white) A22NZ-S-P2C

Lighting Units

Appearance Terminals Specifications Rated voltage Model
a254-e1_lu_4_1 Screw terminal block 6 VAC/DC A22NZ-T-A
12 VAC/DC A22NZ-T-B
24 VAC/DC A22NZ-T-C
100/110/120 VAC A22NZ-T-D
200/220/230/240 VAC A22NZ-T-E
a254-e1_lu_4_2 Push-In Plus terminal block 6 VAC/DC A22NZ-T-AP
12 VAC/DC A22NZ-T-BP
24 VAC/DC A22NZ-T-CP
100/110/120 VAC A22NZ-T-DP
200/220/230/240 VAC A22NZ-T-EP
