A22NS / A22NW

Selector Switches

A22NS / A22NW

22-mm dia. Knob-type Selector Switches. Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring.

(Unit: mm)

Lighted and Non-lighted Selection Switches

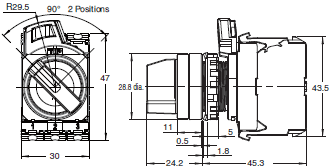

Two-position Switches with Plastic Bezels

A22N[]-2B[]-[][]A-G

A22NS / A22NW Dimensions 2

A22N[]-2B[]-[][]A-P

A22NS / A22NW Dimensions 3

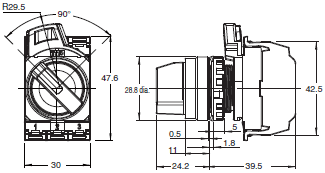

Three-position Switches with Plastic Bezels

A22N[]-3B[]-[][]A-G

A22NS / A22NW Dimensions 4

A22N[]-3B[]-[][]A-P

A22NS / A22NW Dimensions 5

Two-position Switches with Brushed Metal Bezels

A22N[]-2M[]-[][]A-G

A22NS / A22NW Dimensions 6

A22N[]-2M[]-[][]A-P

A22NS / A22NW Dimensions 7

Three-position Switches with Brushed Metal Bezels

A22N[]-3M[]-[][]A-G

A22NS / A22NW Dimensions 8

A22N[]-3M[]-[][]A-P

A22NS / A22NW Dimensions 9

Two-position Switches with Metal Bezels

A22N[]-2R[]-[][]A-G

A22NS / A22NW Dimensions 10

A22N[]-2R[]-[][]A-P

A22NS / A22NW Dimensions 11

Three-position Switches with Metal Bezels

A22N[]-3R[]-[][]A-G

A22NS / A22NW Dimensions 12

A22N[]-3R[]-[][]A-P

A22NS / A22NW Dimensions 13

Depth with Linked Units

(Screw terminal block type)

A22NS / A22NW Dimensions 14

Depth when a double-contact unit is mounted

(Push-In Plus terminal block type)

A22NS / A22NW Dimensions 15

Subassemblies (Common)

LED Lamps

A22NZ-L-[][]

A22NS / A22NW Dimensions 17

Mounting Collar

A22NZ-H-01

A22NS / A22NW Dimensions 18

Screw terminal block

Contact Blocks

A22NZ-S-G1[]

A22NS / A22NW Dimensions 20

Lighting Units

A22NZ-T-[]

A22NS / A22NW Dimensions 21

Push-In Plus Terminal Blocks

Contact Blocks (Single Contact)

A22NZ-S-P1[]

A22NS / A22NW Dimensions 23

Contact Blocks (Double Contact)

A22NZ-S-P2[]

A22NS / A22NW Dimensions 24

Lighting Units

A22NZ-T-[]P

A22NS / A22NW Dimensions 25

Accessories and Tools

Protective Cover

A22NZ-A303

A22NS / A22NW Dimensions 27

Plastic Hole Plug

A22NZ-A-401

A22NS / A22NW Dimensions 28

Metal Hole Plug

A22NZ-A-402

A22NS / A22NW Dimensions 29

Lock Ring

A22NZ-A-403

A22NS / A22NW Dimensions 30

Lock Ring

A22NZ-A-50501

A22NS / A22NW Dimensions 31

Reinforcement Plate

A22NZ-A-C01

A22NS / A22NW Dimensions 32

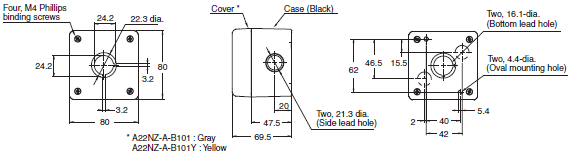

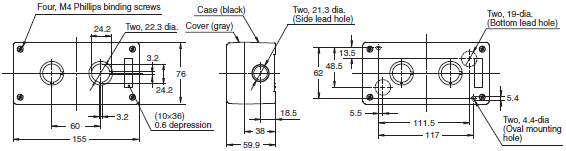

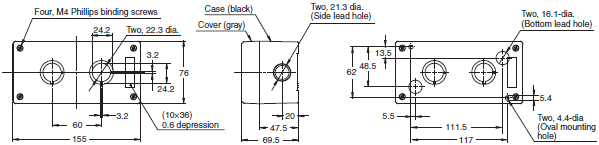

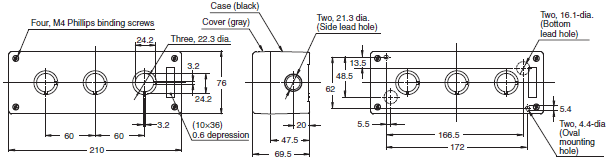

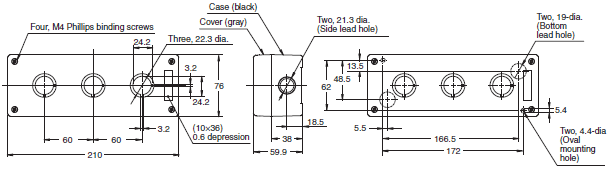

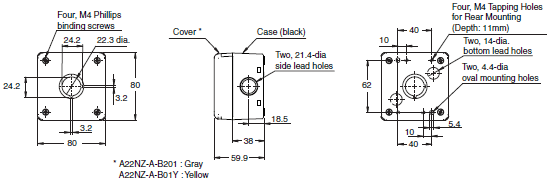

Control Box

A22NZ-A-B01Y

A22NS / A22NW Dimensions 33

Sealing cap

For Flat Models A22Z-3600F

A22NS / A22NW Dimensions 34

For projection models A22Z-3600T

A22NS / A22NW Dimensions 35

For full-guard models A22Z-3600G

A22NS / A22NW Dimensions 36

Resin Attachment for 30 dia.

A22Z-A30

A22NS / A22NW Dimensions 37

Legend Plate Frames

General A22NZ-A-50103

A22NS / A22NW Dimensions 38

Large A22NZ-A-51103

A22NS / A22NW Dimensions 39

Legend Plates

General A22Z-3443[]-[]

A22NS / A22NW Dimensions 40

Large A22Z-3453[]

A22NS / A22NW Dimensions 41

Tightening Wrench

A22NZ-A-301

A22NS / A22NW Dimensions 42

LED Lamp Extractor

A22NZ-A-302

A22NS / A22NW Dimensions 43

Cap Tightening Wrench

A22Z-3908

A22NS / A22NW Dimensions 44
