A30NS / A30NW

Selector Switches

A30NS / A30NW

30-mm dia. Knob-type Selector Switches Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring. Workability and safety improvements.

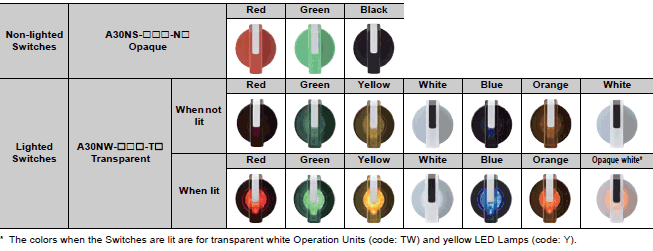

Operation Unit Colors

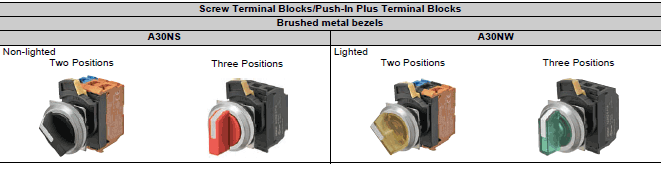

A30NS / A30NW Lineup 1

List of Models

A30NS / A30NW Lineup 2

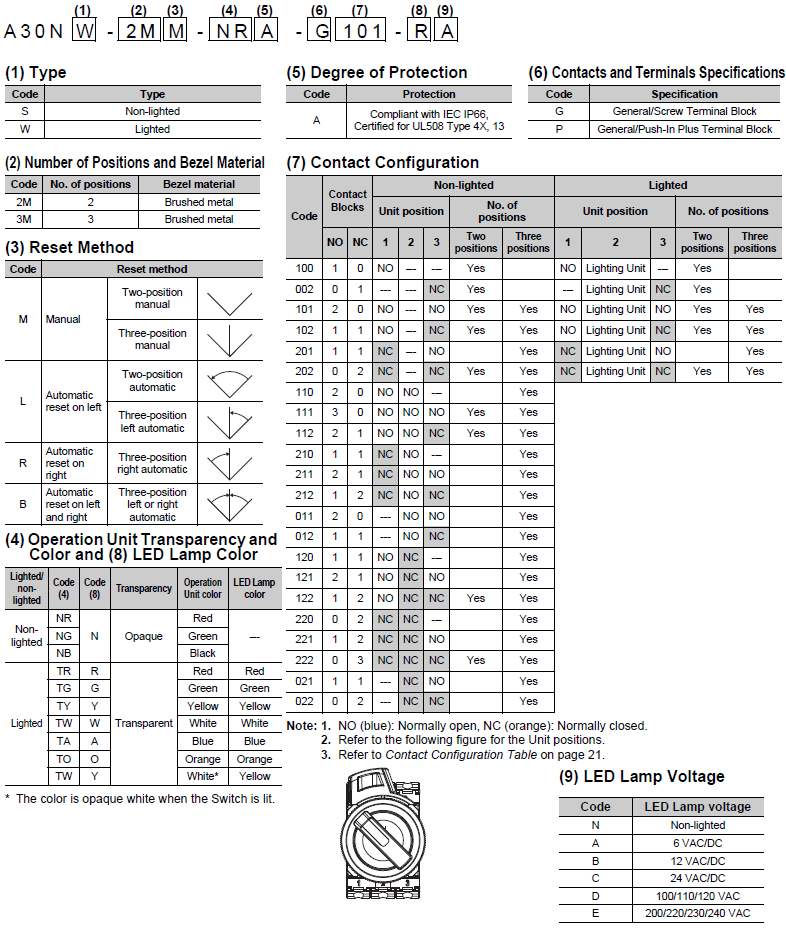

Model Number Structure

Model Number Legend

Please order Operation Units, LED lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. LED lamps, Mounting Collars, Contact Blocks, and Lighting Units can also be used with the A22N series.

Model Numbers for Sets

A30NS / A30NW Lineup 5

Ordering Information

Model Numbers for Sets

Shipped as a set that includes the Operation Unit, Mounting Collar, and Contact Block.

Non-lighted, Two-position, Selector Switches

Appearance Bezel
material
No. of
outputs
Model (3)
Reset
method
(4)(4)
Operation Unit
color
(7)(7)(7)
Contact
configuration
Brushed metal
bezels
3448_lu_4_1
2M 1 A30NS-2M(3)-
(4)(4)A-G(7)(7)(7)-NN
M: Manual
L: Automatic
reset on left
NR: Opaque red
NG: Opaque green
NY: Opaque yellow
NW:Opaque white
NA: Opaque blue
NB: Opaque black
100
002
A30NS-2M(3)-
(4)(4)A-P(7)(7)(7)-NN
2 A30NS-2M(3)-
(4)(4)A-G(7)(7)(7)-NN
102
101
202
A30NS-2M(3)-
(4)(4)A-P(7)(7)(7)-NN
3 A30NS-2M(3)-
(4)(4)A-G(7)(7)(7)-NN
111
222
122
112
A30NS-2M(3)-
(4)(4)A-P(7)(7)(7)-NN

Non-lighted, Three-position, Selector Switches

Appearance Bezel
material
No. of
outputs
Model (3)
Reset
method
(4)(4)
Operation Unit
color
(7)(7)(7)
Contact
configuration
Brushed metal
bezels
3448_lu_5_1
3M 2 A30NS-3M(3)-
(4)(4)A-G(7)(7)(7)-NN
M: Manual
L: Automatic
reset on left
R: Automatic
reset on right
B: Automatic
reset on left
and right
NR: Opaque red
NG: Opaque green
NY: Opaque yellow
NW:Opaque white
NA: Opaque blue
NB: Opaque black
110
011
101
220
022
202
120
102
210
201
012
021
A30NS-3M(3)-
(4)(4)A-P(7)(7)(7)-NN
3 A30NS-3M(3)-
(4)(4)A-G(7)(7)(7)-NN
111
222
122
212
221
211
121
112
A30NS-3M(3)-
(4)(4)A-P(7)(7)(7)-NN

Model Numbers for Sets

Shipped as a set that includes the Operation Unit, LED Lamp, Mounting Collar, Contact Block, and Lighting Unit.

Lighted, Two-position, Selector Switches

Bezel material : 2M

Appearance No. of
outputs
Model (3)
Reset
method
(4)(4)
Operation Unit
color
(7)(7)(7)
Contact
configu-
ration
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Brushed metal
bezels
3448_lu_6_1
1 A30NW-2M(3)-
(4)(4)A-G(7)(7)(7)-
(8)(9)
M: Manual
L: Automatic
reset on left
TR: Transparent
red
TG: Transparent
green
TY: Transparent
yellow
TW:Transparent
white
TA: Transparent
blue
TO: Transparent
orange
100
002
R: Red
G: Green
Y: Yellow
A: Blue
O: Orange
W:White
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A30NW-2M(3)-
(4)(4)A-P(7)(7)(7)-
(8)(9)
2 A30NW-2M(3)-
(4)(4)A-G(7)(7)(7)-
(8)(9)
102
101
202
A30NW-2M(3)-
(4)(4)A-P(7)(7)(7)-
(8)(9)

Lighted, Three-position, Selector Switches

Bezel material : 3M

Appearance No. of
outputs
Model (3)
Reset
method
(4)(4)
Operation Unit
color
(7)(7)(7)
Contact
configu-
ration
(8)
LED
Lamp
color
(9)
LED Lamp
voltage
Brushed metal
bezels
3448_lu_7_1
2 A30NW-3M(3)-
(4)(4)A-G(7)(7)(7)-
(8)(9)
M: Manual
L: Automatic
reset on left
R: Automatic
reset on right
B: Automatic
reset on left
and right
TR: Transparent
red
TG: Transparent
green
TY: Transparent
yellow
TW:Transparent
white
TA: Transparent
blue
TO: Transparent
orange
101
202
102
201
R: Red
G: Green
Y: Yellow
A: Blue
O: Orange
W:White
A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A30NW-3M(3)-
(4)(4)A-P(7)(7)(7)-
(8)(9)

Note: Normally, the Operation Unit and LED Lamp with the same color are combined.
          However, opaque white is available by combining a white Operation Unit and yellow LED. A30N[]-[][][]-TWA-[][][][]-Y[]

Subassemblies

Please order Operation Units, LED lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. LED lamps, Mounting Collars, Contact Blocks, and Lighting Units can also be used with the A22N series.

A30NS / A30NW Lineup 16

Operation Units

Non-lighted Switches

Bezel material and shape Brushed metal
3448_lu_9_1
No. of
positions
Reset method Operation
Unit color
Model
2 Manual Opaque red A30NZ-2MM-NRA
Automatic reset on left A30NZ-2ML-NRA
3 Manual A30NZ-3MM-NRA
Automatic reset on left A30NZ-3ML-NRA
Automatic reset on right A30NZ-3MR-NRA
Automatic reset on left and right A30NZ-3MB-NRA
2 Manual Opaque green A30NZ-2MM-NGA
Automatic reset on left A30NZ-2ML-NGA
3 Manual A30NZ-3MM-NGA
Automatic reset on left A30NZ-3ML-NGA
Automatic reset on right A30NZ-3MR-NGA
Automatic reset on left and right A30NZ-3MB-NGA
2 Manual Opaque yellow A30NZ-2MM-NYA
Automatic reset on left A30NZ-2ML-NYA
3 Manual A30NZ-3MM-NYA
Automatic reset on left A30NZ-3ML-NYA
Automatic reset on right A30NZ-3MR-NYA
Automatic reset on left and right A30NZ-3MB-NYA
2 Manual Opaque white A30NZ-2MM-NWA
Automatic reset on left A30NZ-2ML-NWA
3 Manual A30NZ-3MM-NWA
Automatic reset on left A30NZ-3ML-NWA
Automatic reset on right A30NZ-3MR-NWA
Automatic reset on left and right A30NZ-3MB-NWA
2 Manual Opaque blue A30NZ-2MM-NAA
Automatic reset on left A30NZ-2ML-NAA
3 Manual A30NZ-3MM-NAA
Automatic reset on left A30NZ-3ML-NAA
Automatic reset on right A30NZ-3MR-NAA
Automatic reset on left and right A30NZ-3MB-NAA
2 Manual Opaque black A30NZ-2MM-NBA
Automatic reset on left A30NZ-2ML-NBA
3 Manual A30NZ-3MM-NBA
Automatic reset on left A30NZ-3ML-NBA
Automatic reset on right A30NZ-3MR-NBA
Automatic reset on left and right A30NZ-3MB-NBA

Lighted Switches

Bezel material and shape Brushed metal
3448_lu_10_1
No. of
positions
Reset method Operation
Unit color
Model
2 Manual Transparent red A30NZ-2MM-TRA
Automatic reset on left A30NZ-2ML-TRA
3 Manual A30NZ-3MM-TRA
Automatic reset on left A30NZ-3ML-TRA
Automatic reset on right A30NZ-3MR-TRA
Automatic reset on left and right A30NZ-3MB-TRA
2 Manual Transparent green A30NZ-2MM-TGA
Automatic reset on left A30NZ-2ML-TGA
3 Manual A30NZ-3MM-TGA
Automatic reset on left A30NZ-3ML-TGA
Automatic reset on right A30NZ-3MR-TGA
Automatic reset on left and right A30NZ-3MB-TGA
2 Manual Transparent yellow A30NZ-2MM-TYA
Automatic reset on left A30NZ-2ML-TYA
3 Manual A30NZ-3MM-TYA
Automatic reset on left A30NZ-3ML-TYA
Automatic reset on right A30NZ-3MR-TYA
Automatic reset on left and right A30NZ-3MB-TYA
2 Manual Transparent white A30NZ-2MM-TWA
Automatic reset on left A30NZ-2ML-TWA
3 Manual A30NZ-3MM-TWA
Automatic reset on left A30NZ-3ML-TWA
Automatic reset on right A30NZ-3MR-TWA
Automatic reset on left and right A30NZ-3MB-TWA
2 Manual Transparent blue A30NZ-2MM-TAA
Automatic reset on left A30NZ-2ML-TAA
3 Manual A30NZ-3MM-TAA
Automatic reset on left A30NZ-3ML-TAA
Automatic reset on right A30NZ-3MR-TAA
Automatic reset on left and right A30NZ-3MB-TAA
2 Manual Transparent orange A30NZ-2MM-TOA
Automatic reset on left A30NZ-2ML-TOA
3 Manual A30NZ-3MM-TOA
Automatic reset on left A30NZ-3ML-TOA
Automatic reset on right A30NZ-3MR-TOA
Automatic reset on left and right A30NZ-3MB-TOA

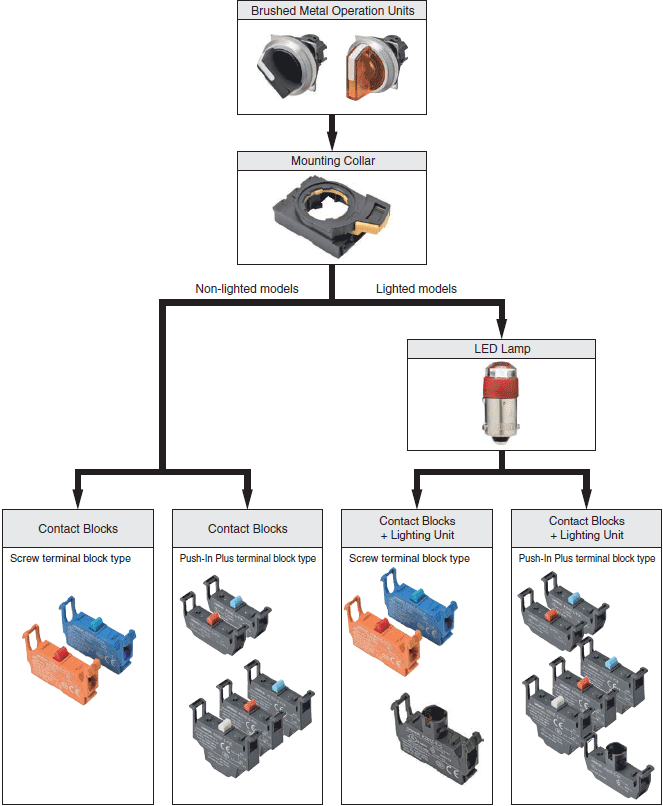

Subassemblies (Common)

Subassemblies

You can order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

LED Lamps

Appearance Rated
voltage
Model
Color 6 VAC/DC 12 VAC/DC 24 VAC/DC 100/110/120
VAC
200/220/230/
240 VAC
a254-e1_lu_1_1 Red A22NZ-L-RA A22NZ-L-RB A22NZ-L-RC A22NZ-L-RD A22NZ-L-RE
Green A22NZ-L-GA A22NZ-L-GB A22NZ-L-GC A22NZ-L-GD A22NZ-L-GE
Yellow A22NZ-L-YA A22NZ-L-YB A22NZ-L-YC A22NZ-L-YD A22NZ-L-YE
White A22NZ-L-WA A22NZ-L-WB A22NZ-L-WC A22NZ-L-WD A22NZ-L-WE
Blue A22NZ-L-AA A22NZ-L-AB A22NZ-L-AC A22NZ-L-AD A22NZ-L-AE
Orange A22NZ-L-OA A22NZ-L-OB A22NZ-L-OC A22NZ-L-OD A22NZ-L-OE

Mounting Collar

Appearance Model
a254-e1_lu_2_1 A22NZ-H-01

Contact Blocks

Appearance Terminals Specifications Contacts Model
a254-e1_lu_3_1 Screw terminal block SPST-NO (blue) A22NZ-S-G1A
SPST-NC (orange) A22NZ-S-G1B
a254-e1_lu_3_2 Push-In Plus terminal block SPST-NO (blue) A22NZ-S-P1A
SPST-NC (red) A22NZ-S-P1B
a254-e1_lu_3_3 Push-In Plus terminal block DPST-NO (blue) A22NZ-S-P2A
DPST-NC (red) A22NZ-S-P2B
SPST-NO/SPST-NC (white) A22NZ-S-P2C

Lighting Units

Appearance Terminals Specifications Rated voltage Model
a254-e1_lu_4_1 Screw terminal block 6 VAC/DC A22NZ-T-A
12 VAC/DC A22NZ-T-B
24 VAC/DC A22NZ-T-C
100/110/120 VAC A22NZ-T-D
200/220/230/240 VAC A22NZ-T-E
a254-e1_lu_4_2 Push-In Plus terminal block 6 VAC/DC A22NZ-T-AP
12 VAC/DC A22NZ-T-BP
24 VAC/DC A22NZ-T-CP
100/110/120 VAC A22NZ-T-DP
200/220/230/240 VAC A22NZ-T-EP
