A30NK

Key-type Selector Switches

A30NK

30-mm dia. Key-type Selector Switches Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring. Workability and safety improvements.

(Unit: mm)

Key-type Selection Switches

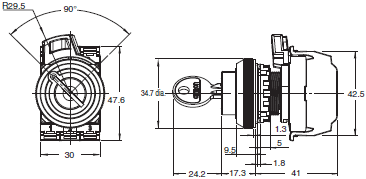

Two-position Switches with Brushed Metal Bezels

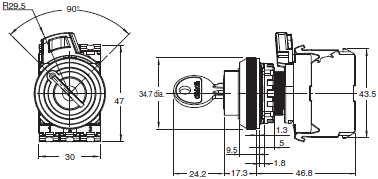

A30NK-2M[]-01[]A-G[]

A30NK Dimensions 2

A30NK-2M[]-01[]A-P[]

A30NK Dimensions 3

Three-position Switches with Brushed Metal Bezels

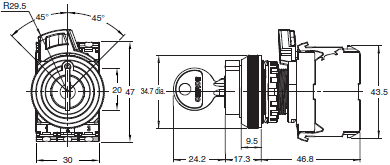

A30NK-3M[]-01[]A-G[]

A30NK Dimensions 4

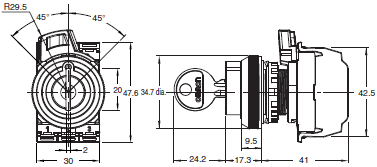

A30NK-3M[]-01[]A-P[]

A30NK Dimensions 5

Depth with Linked Units

(Screw terminal block type)

A30NK Dimensions 6

Depth when a double-contact unit is mounted

(Push-In Plus terminal block type)

A30NK Dimensions 7

Subassemblies (Common)

Mounting Collar

A22NZ-H-01

A30NK Dimensions 9

Screw terminal block

Contact Blocks

A22NZ-S-G1[]

A30NK Dimensions 11

Push-In Plus Terminal Blocks

Contact Blocks (Single Contact)

A22NZ-S-P1[]

A30NK Dimensions 13

Contact Blocks (Double Contact)

A22NZ-S-P2[]

A30NK Dimensions 14

Accessories and Tools

Protective Cover

A22NZ-A303

A30NK Dimensions 16

Plastic Hole Plug

A22NZ-A-401

A30NK Dimensions 17

Metal Hole Plug

A22NZ-A-402

A30NK Dimensions 18

Lock Ring

A22NZ-A-403

A30NK Dimensions 19

Lock Ring

A22NZ-A-50501

A30NK Dimensions 20

Reinforcement Plate

A22NZ-A-C01

A30NK Dimensions 21

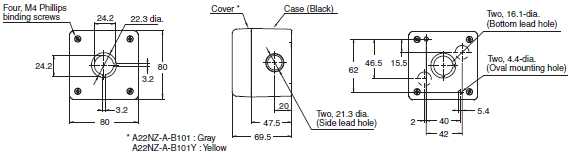

Control Box

A22NZ-A-B101
A22NZ-A-B101Y

A30NK Dimensions 22

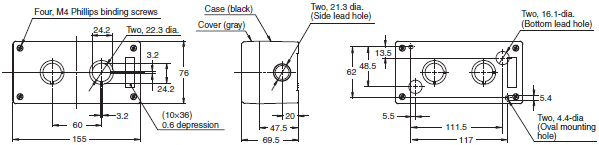

Control Box (2 holes)

A22NZ-A-B102

A30NK Dimensions 23

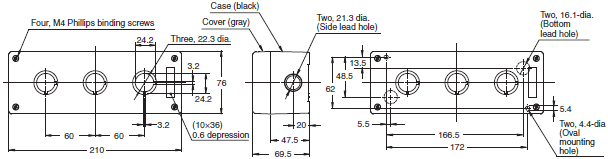

Control Box (3 holes)

A22NZ-A-B103

A30NK Dimensions 24

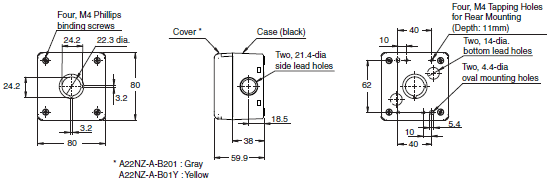

Control Box

A22NZ-A-B201
A22NZ-A-B01Y

A30NK Dimensions 25

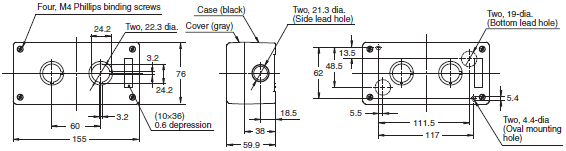

Control Box (2 holes)

A22NZ-A-B202

A30NK Dimensions 26

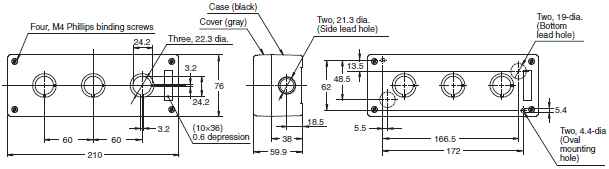

Control Box (3 holes)

A22NZ-A-B203

A30NK Dimensions 27

Sealing cap

For Flat Models A22Z-3600F

A30NK Dimensions 28

For projection models A22Z-3600T

A30NK Dimensions 29

For full-guard models A22Z-3600G

A30NK Dimensions 30

Resin Attachment for 30 dia.

A22Z-A30

A30NK Dimensions 31

Legend Plate Frames

General A22NZ-A-50103

A30NK Dimensions 32

Large A22NZ-A-51103

A30NK Dimensions 33

Legend Plates

General A22Z-3443[]-[]

A30NK Dimensions 34

Large A22Z-3453[]

A30NK Dimensions 35

Tightening Wrench

A22NZ-A-301

A30NK Dimensions 36

LED Lamp Extractor

A22NZ-A-302

A30NK Dimensions 37

Cap Tightening Wrench

A22Z-3908

A30NK Dimensions 38
