A30NN / A30NL
Pushbutton Switches
30-mm dia. Pushbutton Switches Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring. Workability and safety improvements.
Related Contents
- Push Buttons / Indicator Lamps
last update: April 3, 2023
Button Colors
List of Models
Model Number Structure

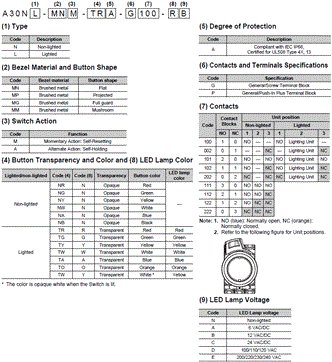

Model Number Legend
Model Numbers for Sets
Ordering Information
Model Numbers for Sets
Shipped as a set that includes the Operation Unit, LED Lamp (lighted models only), Mounting Collar, Contact Block, and Lighting Unit (lighted models only).
Non-lighted, Flat Switches
|
Appea-
rance |
Con-
tacts |
Momentary action
(self-resetting) |
Alternate action
(self-holding) |
(4)(4)
Button color |
(7)(7)(7)
Contacts |
|---|---|---|---|---|---|
| Model | Model | ||||
| Brushed
metal bezels  |
1 |
A30NN-
MNM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MNA-(4)(4)A-G(7)(7)(7)-NN |
NR: Opaque, red
NG: Opaque, green NY: Opaque, yellow NW:Opaque, white NA: Opaque, blue NB: Opaque, black |
100
002 |
|
A30NN-
MNM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MNA-(4)(4)A-P(7)(7)(7)-NN |
||||
| 2 |
A30NN-
MNM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MNA-(4)(4)A-G(7)(7)(7)-NN |
101
102 202 |
||
|
A30NN-
MNM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MNA-(4)(4)A-P(7)(7)(7)-NN |
||||
| 3 |
A30NN-
MNM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MNA-(4)(4)A-G(7)(7)(7)-NN |
111
112 122 222 |
||
|
A30NN-
MNM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MNA-(4)(4)A-P(7)(7)(7)-NN |
Lighted, Flat Switches
|
Appea-
rance |
Con-
tacts |
Momentary action
(self-resetting) |
Alternate action
(self-holding) |
(4)(4)
Button color |
(7)(7)(7)
Contacts |
(8)
LED Lamp color |
(9)
LED Lamp voltage |
|---|---|---|---|---|---|---|---|
| Model | Model | ||||||
| Brushed
metal bezels
|
1 |
A30NL-MNM-
(4)(4)A-G(7)(7)(7)- (8)(9) |
A30NL-MNA-
(4)(4)A-G(7)(7)(7)- (8)(9) |
TR: Transparent,
red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange |
100
002 |
R: Red
G: Green Y: Yellow W: White A: Blue O: Orange |
A: 6 VAC/DC
B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC |
|
A30NL-MNM-
(4)(4)A-P(7)(7)(7)- (8)(9) |
A30NL-MNA-
(4)(4)A-P(7)(7)(7)- (8)(9) |
||||||
| 2 |
A30NL-MNM-
(4)(4)A-G(7)(7)(7)- (8)(9) |
A30NL-MNA-
(4)(4)A-G(7)(7)(7)- (8)(9) |
101
102 202 |
||||
|
A30NL-MNM-
(4)(4)A-P(7)(7)(7)- (8)(9) |
A30NL-MNA-
(4)(4)A-P(7)(7)(7)- (8)(9) |
Non-lighted, Projected Switches
|
Appea-
rance |
Con-
tacts |
Momentary action
(self-resetting) |
Alternate action
(self-holding) |
(4)(4)
Button color |
(7)(7)(7)
Contacts |
|---|---|---|---|---|---|
| Model | Model | ||||
| Brushed
metal bezels  |
1 |
A30NN-
MPM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MPA-(4)(4)A-G(7)(7)(7)-NN |
NR: Opaque, red
NG: Opaque, green NY: Opaque, yellow NW:Opaque, white NA: Opaque, blue NB: Opaque, black |
100
002 |
|
A30NN-
MPM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MPA-(4)(4)A-P(7)(7)(7)-NN |
||||
| 2 |
A30NN-
MPM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MPA-(4)(4)A-G(7)(7)(7)-NN |
101
102 202 |
||
|
A30NN-
MPM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MPA-(4)(4)A-P(7)(7)(7)-NN |
||||
| 3 |
A30NN-
MPM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MPA-(4)(4)A-G(7)(7)(7)-NN |
111
112 122 222 |
||
|
A30NN-
MPM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MPA-(4)(4)A-P(7)(7)(7)-NN |
Lighted, Projected Switches
|
Appea-
rance |
Con-
tacts |
Momentary action
(self-resetting) |
Alternate action
(self-holding) |
(4)(4)
Button color |
(7)(7)(7)
Contacts |
(8)
LED Lamp color |
(9)
LED Lamp voltage |
|---|---|---|---|---|---|---|---|
| Model | Model | ||||||
| Brushed
metal bezels
|
1 |
A30NL-MPM-
(4)(4)A-G(7)(7)(7)- (8)(9) |
A30NL-MPA-
(4)(4)A-G(7)(7)(7)- (8)(9) |
TR: Transparent,
red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange |
100
002 |
R: Red
G: Green Y: Yellow W: White A: Blue O: Orange |
A: 6 VAC/DC
B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC |
|
A30NL-MPM-
(4)(4)A-P(7)(7)(7)- (8)(9) |
A30NL-MPA-
(4)(4)A-P(7)(7)(7)- (8)(9) |
||||||
| 2 |
A30NL-MPM-
(4)(4)A-G(7)(7)(7)- (8)(9) |
A30NL-MPA-
(4)(4)A-G(7)(7)(7)- (8)(9) |
101
102 202 |
||||
|
A30NL-MPM-
(4)(4)A-P(7)(7)(7)- (8)(9) |
A30NL-MPA-
(4)(4)A-P(7)(7)(7)- (8)(9) |
Non-lighted, Full-guard Switches
|
Appea-
rance |
Con-
tacts |
Momentary action
(self-resetting) |
Alternate action
(self-holding) |
(4)(4)
Button color |
(7)(7)(7)
Contacts |
|---|---|---|---|---|---|
| Model | Model | ||||
| Brushed
metal bezels  |
1 |
A30NN-
MGM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MGA-(4)(4)A-G(7)(7)(7)-NN |
NR: Opaque, red
NG: Opaque, green NY: Opaque, yellow NW:Opaque, white NA: Opaque, blue NB: Opaque, black |
100
002 |
|
A30NN-
MGM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MGA-(4)(4)A-P(7)(7)(7)-NN |
||||
| 2 |
A30NN-
MGM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MGA-(4)(4)A-G(7)(7)(7)-NN |
101
102 202 |
||
|
A30NN-
MGM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MGA-(4)(4)A-P(7)(7)(7)-NN |
||||
| 3 |
A30NN-
MGM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MGA-(4)(4)A-G(7)(7)(7)-NN |
111
112 122 222 |
||
|
A30NN-
MGM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MGA-(4)(4)A-P(7)(7)(7)-NN |
Lighted, Full-guard Switches
|
Appea-
rance |
Con-
tacts |
Momentary action
(self-resetting) |
Alternate action
(self-holding) |
(4)(4)
Button color |
(7)(7)(7)
Contacts |
(8)
LED Lamp color |
(9)
LED Lamp voltage |
|---|---|---|---|---|---|---|---|
| Model | Model | ||||||
| Brushed
metal bezels
|
1 |
A30NL-MGM-
(4)(4)A-G(7)(7)(7)- (8)(9) |
A30NL-MGA-
(4)(4)A-G(7)(7)(7)- (8)(9) |
TR: Transparent,
red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange |
100
002 |
R: Red
G: Green Y: Yellow W: White A: Blue O: Orange |
A: 6 VAC/DC
B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC |
|
A30NL-MGM-
(4)(4)A-P(7)(7)(7)- (8)(9) |
A30NL-MGA-
(4)(4)A-P(7)(7)(7)- (8)(9) |
||||||
| 2 |
A30NL-MGM-
(4)(4)A-G(7)(7)(7)- (8)(9) |
A30NL-MGA-
(4)(4)A-G(7)(7)(7)- (8)(9) |
101
102 202 |
||||
|
A30NL-MGM-
(4)(4)A-P(7)(7)(7)- (8)(9) |
A30NL-MGA-
(4)(4)A-P(7)(7)(7)- (8)(9) |
Non-lighted, Mushroom Switches
|
Appea-
rance |
Con-
tacts |
Momentary action
(self-resetting) |
Alternate action
(self-holding) |
(4)(4)
Button color |
(7)(7)(7)
Contacts |
|---|---|---|---|---|---|
| Model | Model | ||||
| Brushed
metaz bezels  |
1 |
A30NN-
MMM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MMA-(4)(4)A-G(7)(7)(7)-NN |
NR: Opaque, red
NG: Opaque, green NY: Opaque, yellow NW:Opaque, white NA: Opaque, blue NB: Opaque, black |
100
002 |
|
A30NN-
MMM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MMA-(4)(4)A-P(7)(7)(7)-NN |
||||
| 2 |
A30NN-
MMM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MMA-(4)(4)A-G(7)(7)(7)-NN |
101
102 202 |
||
|
A30NN-
MMM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MMA-(4)(4)A-P(7)(7)(7)-NN |
||||
| 3 |
A30NN-
MMM-(4)(4)A-G(7)(7)(7)-NN |
A30NN-
MMA-(4)(4)A-G(7)(7)(7)-NN |
111
112 122 222 |
||
|
A30NN-
MMM-(4)(4)A-P(7)(7)(7)-NN |
A30NN-
MMA-(4)(4)A-P(7)(7)(7)-NN |
Lighted, Mushroom Switches
|
Appea-
rance |
Con-
tacts |
Momentary action
(self-resetting) |
Alternate action
(self-holding) |
(4)(4)
Button color |
(7)(7)(7)
Contacts |
(8)
LED Lamp color |
(9)
LED Lamp voltage |
|---|---|---|---|---|---|---|---|
| Model | Model | ||||||
| Brushed
metal bezels
|
1 |
A30NL-MMM-
(4)(4)A-G(7)(7)(7)- (8)(9) |
A30NL-MMA-
(4)(4)A-G(7)(7)(7)- (8)(9) |
TR: Transparent,
red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange |
100
002 |
R: Red
G: Green Y: Yellow W: White A: Blue O: Orange |
A: 6 VAC/DC
B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC |
|
A30NL-MMM-
(4)(4)A-P(7)(7)(7)- (8)(9) |
A30NL-MMA-
(4)(4)A-P(7)(7)(7)- (8)(9) |
||||||
| 2 |
A30NL-MMM-
(4)(4)A-G(7)(7)(7)- (8)(9) |
A30NL-MMA-
(4)(4)A-G(7)(7)(7)- (8)(9) |
101
102 202 |
||||
|
A30NL-MMM-
(4)(4)A-P(7)(7)(7)- (8)(9) |
A30NL-MMA-
(4)(4)A-P(7)(7)(7)- (8)(9) |
Note: Normally, the Button and LED Lamp with the same color are combined.
However, opaque white is available by combining a white Button and yellow LED. A30N[]-[][][]-TWA-[][][][]-Y[]
Switch Structure
Please order Operation Units, LED lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. LED lamps, Mounting Collars, Contact Blocks, Lighting Units, and Lock Ring can also be used with the A22N series.
Subassemblies
Please order Operation Units, LED lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. LED lamps, Mounting Collars, Contact Blocks, Lighting Units, and Lock Ring can also be used with the A22N series.
Operation Units
| Bezel material and button shape |
Brushed metal, flat
|
Brushed metal, projected
|
||||
|---|---|---|---|---|---|---|
| Switch Action | Momentary | Alternate | Momentary | Alternate | ||
|
Lighted/
non- lighted |
Transparency | Color | Model | Model | Model | Model |
|
Non-
lighted |
Opaque | Red | A30NZ-MNM-NRA | A30NZ-MNA-NRA | A30NZ-MPM-NRA | A30NZ-MPA-NRA |
| Opaque | Green | A30NZ-MNM-NGA | A30NZ-MNA-NGA | A30NZ-MPM-NGA | A30NZ-MPA-NGA | |
| Opaque | Yellow | A30NZ-MNM-NYA | A30NZ-MNA-NYA | A30NZ-MPM-NYA | A30NZ-MPA-NYA | |
| Opaque | White | A30NZ-MNM-NWA | A30NZ-MNA-NWA | A30NZ-MPM-NWA | A30NZ-MPA-NWA | |
| Opaque | Blue | A30NZ-MNM-NAA | A30NZ-MNA-NAA | A30NZ-MPM-NAA | A30NZ-MPA-NAA | |
| Opaque | Black | A30NZ-MNM-NBA | A30NZ-MNA-NBA | A30NZ-MPM-NBA | A30NZ-MPA-NBA | |
| Lighted | Transparent | Red | A30NZ-MNM-TRA | A30NZ-MNA-TRA | A30NZ-MPM-TRA | A30NZ-MPA-TRA |
| Transparent | Green | A30NZ-MNM-TGA | A30NZ-MNA-TGA | A30NZ-MPM-TGA | A30NZ-MPA-TGA | |
| Transparent | Yellow | A30NZ-MNM-TYA | A30NZ-MNA-TYA | A30NZ-MPM-TYA | A30NZ-MPA-TYA | |
| Transparent | White | A30NZ-MNM-TWA | A30NZ-MNA-TWA | A30NZ-MPM-TWA | A30NZ-MPA-TWA | |
| Transparent | Blue | A30NZ-MNM-TAA | A30NZ-MNA-TAA | A30NZ-MPM-TAA | A30NZ-MPA-TAA | |
| Transparent | Orange | A30NZ-MNM-TOA | A30NZ-MNA-TOA | A30NZ-MPM-TOA | A30NZ-MPA-TOA | |
| Bezel material and button shape |
Brushed metal, full-guard
|
Brushed metal, mushroom
|
||||
|---|---|---|---|---|---|---|
| Switch Action | Momentary | Alternate | Momentary | Alternate | ||
|
Lighted/
non- lighted |
Transparency | Color | Model | Model | Model | Model |
|
Non-
lighted |
Opaque | Red | A30NZ-MGM-NRA | A30NZ-MGA-NRA | A30NZ-MMM-NRA | A30NZ-MMA-NRA |
| Opaque | Green | A30NZ-MGM-NGA | A30NZ-MGA-NGA | A30NZ-MMM-NGA | A30NZ-MMA-NGA | |
| Opaque | Yellow | A30NZ-MGM-NYA | A30NZ-MGA-NYA | A30NZ-MMM-NYA | A30NZ-MMA-NYA | |
| Opaque | White | A30NZ-MGM-NWA | A30NZ-MGA-NWA | A30NZ-MMM-NWA | A30NZ-MMA-NWA | |
| Opaque | Blue | A30NZ-MGM-NAA | A30NZ-MGA-NAA | A30NZ-MMM-NAA | A30NZ-MMA-NAA | |
| Opaque | Black | A30NZ-MGM-NBA | A30NZ-MGA-NBA | A30NZ-MMM-NBA | A30NZ-MMA-NBA | |
| Lighted | Transparent | Red | A30NZ-MGM-TRA | A30NZ-MGA-TRA | A30NZ-MMM-TRA | A30NZ-MMA-TRA |
| Transparent | Green | A30NZ-MGM-TGA | A30NZ-MGA-TGA | A30NZ-MMM-TGA | A30NZ-MMA-TGA | |
| Transparent | Yellow | A30NZ-MGM-TYA | A30NZ-MGA-TYA | A30NZ-MMM-TYA | A30NZ-MMA-TYA | |
| Transparent | White | A30NZ-MGM-TWA | A30NZ-MGA-TWA | A30NZ-MMM-TWA | A30NZ-MMA-TWA | |
| Transparent | Blue | A30NZ-MGM-TAA | A30NZ-MGA-TAA | A30NZ-MMM-TAA | A30NZ-MMA-TAA | |
| Transparent | Orange | A30NZ-MGM-TOA | A30NZ-MGA-TOA | A30NZ-MMM-TOA | A30NZ-MMA-TOA | |
Subassemblies (Common)
Subassemblies
You can order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.
LED Lamps
| Appearance |
Rated
voltage |
Model | ||||
|---|---|---|---|---|---|---|
| Color | 6 VAC/DC | 12 VAC/DC | 24 VAC/DC |
100/110/120
VAC |
200/220/230/
240 VAC |
|
|
Red | A22NZ-L-RA | A22NZ-L-RB | A22NZ-L-RC | A22NZ-L-RD | A22NZ-L-RE |
| Green | A22NZ-L-GA | A22NZ-L-GB | A22NZ-L-GC | A22NZ-L-GD | A22NZ-L-GE | |
| Yellow | A22NZ-L-YA | A22NZ-L-YB | A22NZ-L-YC | A22NZ-L-YD | A22NZ-L-YE | |
| White | A22NZ-L-WA | A22NZ-L-WB | A22NZ-L-WC | A22NZ-L-WD | A22NZ-L-WE | |
| Blue | A22NZ-L-AA | A22NZ-L-AB | A22NZ-L-AC | A22NZ-L-AD | A22NZ-L-AE | |
| Orange | A22NZ-L-OA | A22NZ-L-OB | A22NZ-L-OC | A22NZ-L-OD | A22NZ-L-OE | |
Mounting Collar
| Appearance | Model |
|---|---|
|
A22NZ-H-01 |
Contact Blocks
| Appearance | Terminals Specifications | Contacts | Model |
|---|---|---|---|
|
Screw terminal block | SPST-NO (blue) | A22NZ-S-G1A |
| SPST-NC (orange) | A22NZ-S-G1B | ||
|
Push-In Plus terminal block | SPST-NO (blue) | A22NZ-S-P1A |
| SPST-NC (red) | A22NZ-S-P1B | ||
|
Push-In Plus terminal block | DPST-NO (blue) | A22NZ-S-P2A |
| DPST-NC (red) | A22NZ-S-P2B | ||
| SPST-NO/SPST-NC (white) | A22NZ-S-P2C |
Lighting Units
| Appearance | Terminals Specifications | Rated voltage | Model |
|---|---|---|---|
|
Screw terminal block | 6 VAC/DC | A22NZ-T-A |
| 12 VAC/DC | A22NZ-T-B | ||
| 24 VAC/DC | A22NZ-T-C | ||
| 100/110/120 VAC | A22NZ-T-D | ||
| 200/220/230/240 VAC | A22NZ-T-E | ||
|
Push-In Plus terminal block | 6 VAC/DC | A22NZ-T-AP |
| 12 VAC/DC | A22NZ-T-BP | ||
| 24 VAC/DC | A22NZ-T-CP | ||
| 100/110/120 VAC | A22NZ-T-DP | ||
| 200/220/230/240 VAC | A22NZ-T-EP |
last update: April 3, 2023
Top of Page
© Copyright OMRON Corporation 2007 - 2024. All Rights Reserved.
