E52 (For Packing Machine)

Temperature Sensors for Packaging Machines

E52 (For Packing Machine)

Accurately Measure Seal Temperature. Temperature Sensors for Packaging Machines.

(Unit: mm)

Y-type crimp terminals for M3.0

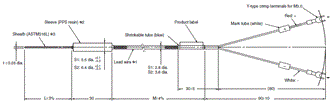

E52 (For Packing Machine) Dimensions 1

Ferrules

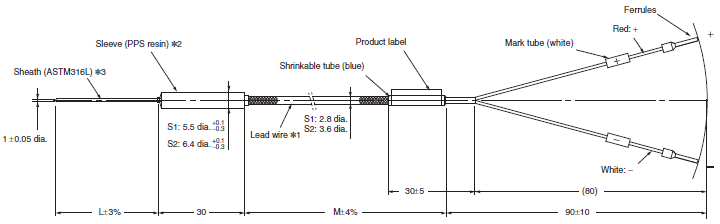

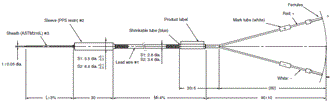

E52 (For Packing Machine) Dimensions 2

*1. Lead wires (compensating conductor) (excluding Y-type crimp terminals)
Heat-resistance model (0 to 200°C): PFA glass-wool sheath with stainless outer shield
Flexible, heat-resistance model (0 to 200°C): PFA glass-wool sheath with stainless outer shield
*2. Temperature range of sleeve: 0 to 260°C
*3. The sheath can be easily bent. Performance will not be adversely affected even if the sheath is bent somewhat.
Do not bend the sheath beyond the following value.
Minimum bending radius: 2 mm
Bendable section: 8 mm or farther from the end
