E2NC

Smart Proximity Sensor

E2NC

Smart Proximity Sensor with Separate Amplifier Enables Easily Making Highprecision Sensitivity Settings.

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensor Heads

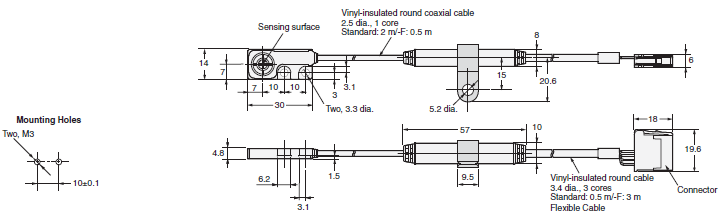

E2NC-EDR6-F

E2NC Dimensions 3

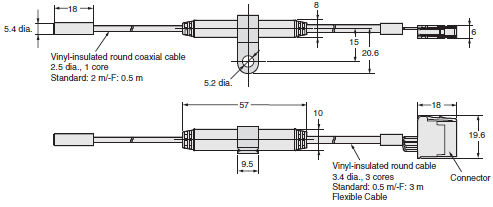

E2NC-ED01(-F)

E2NC Dimensions 4

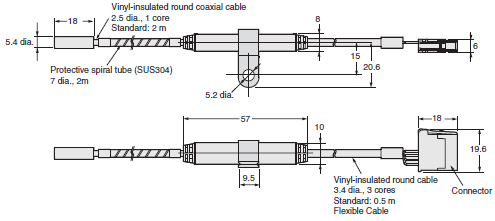

E2NC-ED01-S

E2NC Dimensions 5

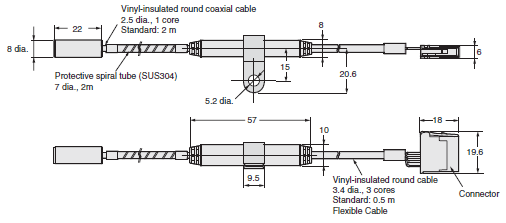

E2NC-ED02(-F)

E2NC Dimensions 6

E2NC-ED02-S

E2NC Dimensions 7

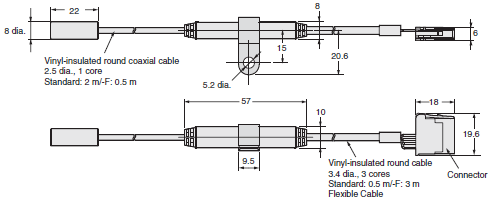

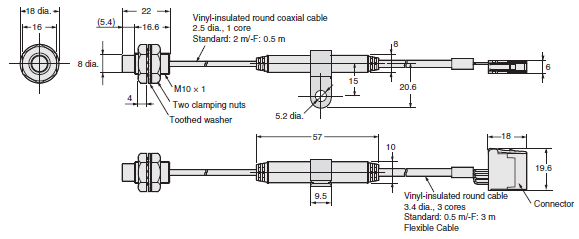

E2NC-EM02(-F)

E2NC Dimensions 8

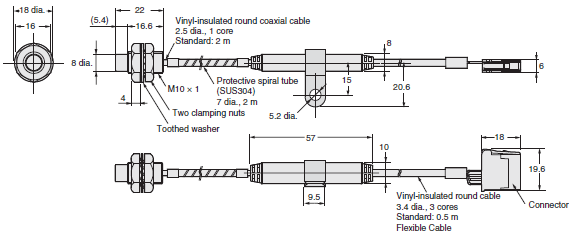

E2NC-EM02-S

E2NC Dimensions 9

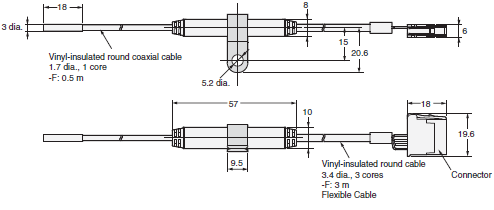

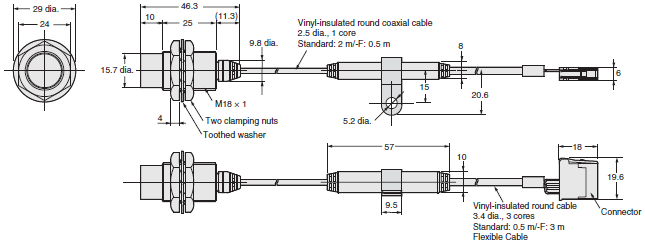

E2NC-EM07M(-F)

E2NC Dimensions 10

E2NC-EM07M-S

E2NC Dimensions 11

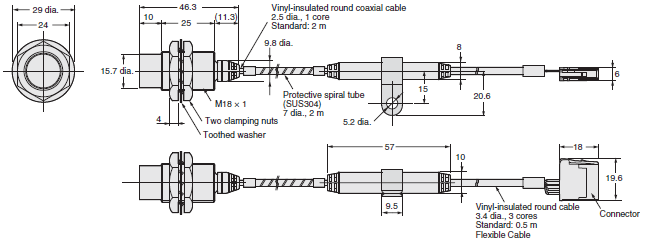

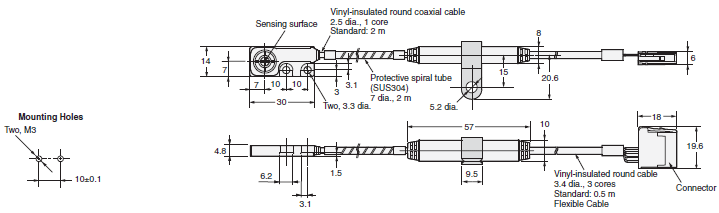

E2NC-EV05(-F)

E2NC Dimensions 12

E2NC-EV05-S

E2NC Dimensions 13

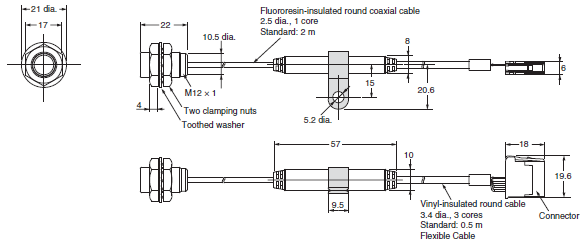

E2NC-EM02H

E2NC Dimensions 14

Amplifier Unit

Pre-wired Amplifier Units

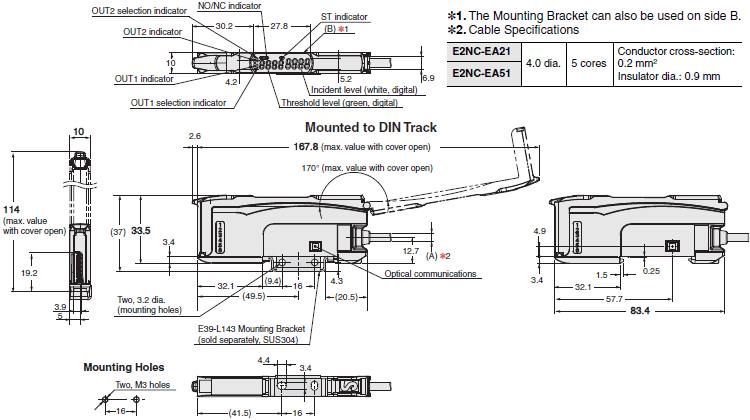

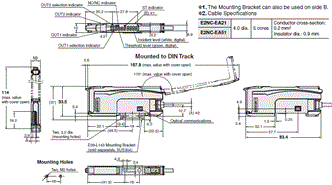

E2NC-EA21
E2NC-EA51

E2NC Dimensions 16

Amplifier Units with Wire-saving Connectors

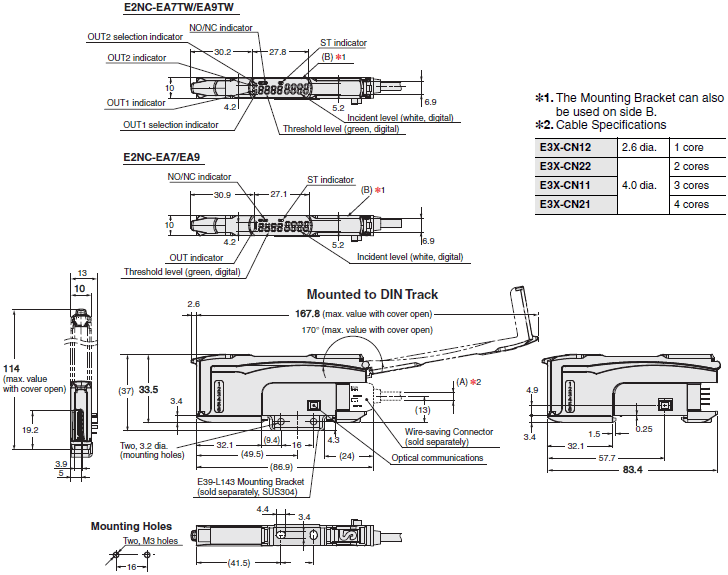

E2NC-EA7TW
E2NC-EA9TW
E2NC-EA7
E2NC-EA9

E2NC Dimensions 17

Amplifier Unit with Connector for Sensor Communications Unit

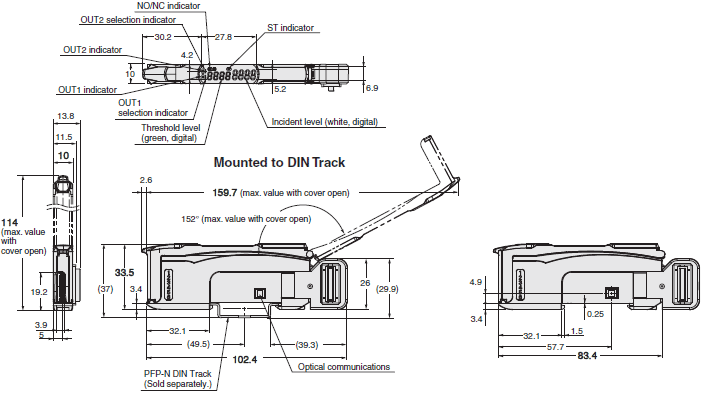

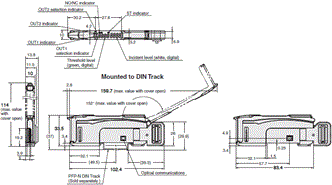

E2NC-EA0

E2NC Dimensions 18

Amplifier Unit with Connector for Sensor Communications Unit (Pre-wired)

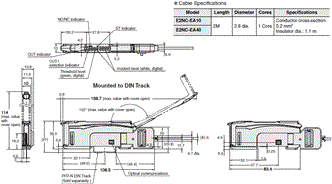

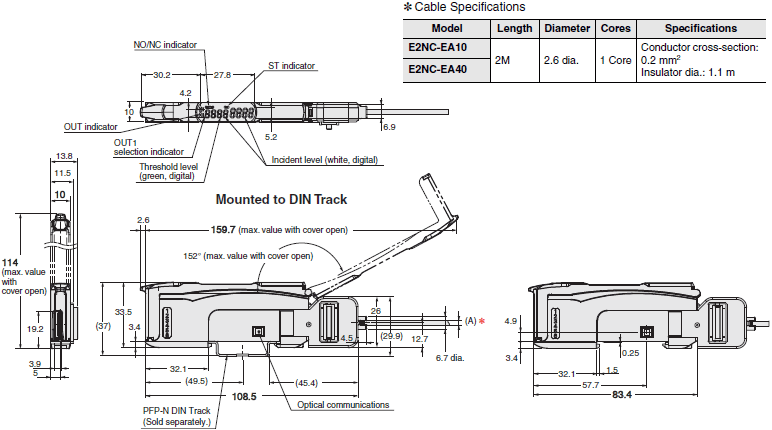

E2NC-EA10
E2NC-EA40

E2NC Dimensions 19

Accessories (Sold Separately)

Wire-saving Connectors

Master Connector

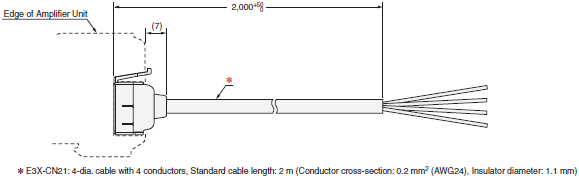

E3X-CN21

E2NC Dimensions 21

Slave Connector

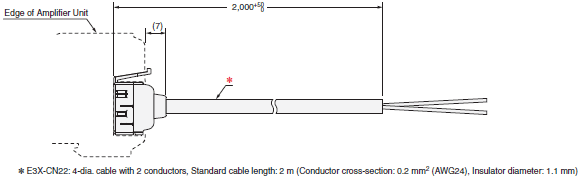

E3X-CN22

E2NC Dimensions 22

Mounting Bracket

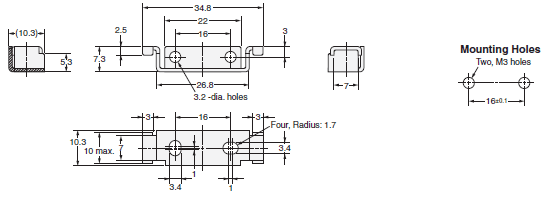

E39-L143

E2NC Dimensions 23

End Plate

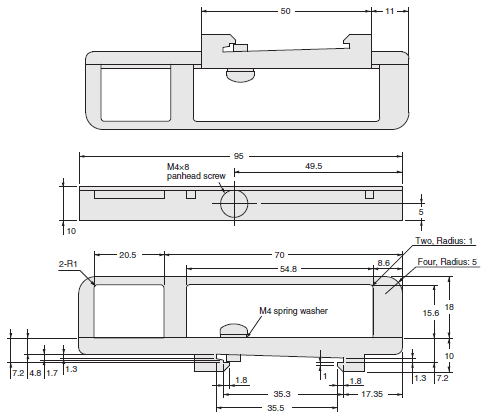

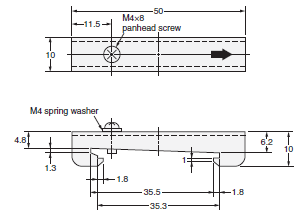

PFP-M

E2NC Dimensions 24

E39-EP1

E2NC Dimensions 25
