NX-HAD[][][]

NX-series High-speed Analog Input Unit

NX-HAD[][][]

Simultaneous sampling of 4 channels with sampling times down to 5 μs

General Specifications

This section provides the general specifications of the High-speed Analog Input Units.

Item Specification
Enclosure Mounted in a panel
Grounding methods Ground of 100 Ω or less
Operating
environment
Ambient operating temperature 0 to 55°C
Ambient operating humidity 10% to 95% (with no condensation or icing)
Atmosphere Must be free from corrosive gases.
Ambient storage temperature -25 to 70°C (with no condensation or icing)
Altitude 2,000 m max.
Pollution degree 2 or less: Meets IEC 61010-2-201.
Noise immunity Conforms to IEC 61000-4-4, 2 kV (power supply line)
Overvoltage category Category II: Meets IEC 61010-2-201.
EMC immunity level Zone B
Vibration resistance Conforms to IEC 60068-2-6.
5 to 8.4 Hz with amplitude of 3.5 mm,
8.4 to 150 Hz, acceleration of 9.8 m/s2
100 min each in X, Y, and Z directions (10 sweeps of 10 min each =
100 min total)
Shock resistance Conforms to IEC 60068-2-27, 147 m/s2, 3 times each in X, Y, and
Z directions
Insulation resistance Refer to the individual specifications of NX Units.
Dielectric strength Refer to the individual specifications of NX Units.
Applicable standards cULus: Listed (UL61010-2-201), ANSI/ISA 12.12.01,
EU: EN 61131-2, RCM, KC (KC Registration), and EAC, NK, LR

Note: 1. The specifications of insulation resistance and dielectric strength vary with NX Unit Models.
         2. Ask your OMRON representative for the most recent applicable standards for each model.

Specifications of Individual Units

NX-HAD401

Unit name High-speed Analog Input Unit Model NX-HAD401
External connection
terminals
Screwless clamping terminal block (16 terminals ×2)
I/O refreshing method Synchronous I/O refreshing
Indicators TS indicator, IN indicator
3708_sp_2_1
Analog
input
section
Number of points 4 points Trigger
input
section
Number of
points
4 points
Input method Differential input Internal I/O
common
NPN
Input range Voltage:
• -10 to 10 V
• -5 to 5 V
• 0 to 10 V
• 0 to 5 V
• 1 to 5 V
Current:
• 0 to 20 mA
• 4 to 20 mA
Rated input
voltage
24 VDC (20.4 to 28.8 VDC)
Input conversion
range
• Input range of -10 to 10 V or
-5 to 5 V
-1% to 101% (full scale)
• Other input ranges
-2% to 102% (full scale)
Input
current
3.5 mA typical (24 VDC)
Absolute
maximum rating
Voltage: ±15 V
Input current: ±30 mA
ON voltage/
ON current
15 VDC min./3 mA min.
(between IOV and each signal)
Input Impedance Voltage: 1 MΩ min.
Current: 250 Ω
OFF voltage/
OFF current
5 VDC max./1 mA max.
(between IOV and each signal)
Resolution • Input range of -10 to 10 V or
-5 to 5 V
1/64000 (full scale)
• Other input ranges
1/32000 (full scale)
ON/OFF
response
time
1 μs max./1 μs max.
Overall
accuracy
25°C ±0.1% (full scale) Input filter
time
No filter, 4 μs, 8 μs (default),
16 μs, 32 μs, 64 μs, 128 μs,
256 μs
0 to
55°C
±0.2% (full scale)
Conversion time 5 μs per channel*1
Dimensions 24 (W) × 100 (H) × 71 (D) Isolation method Between the analog input and
the NX bus:
Power = Transformer, Signal =
Digital isolator
Between analog inputs:
Power = Transformer, Signal =
Digital isolator
Between the trigger input and
the NX bus:
Signal = Digital isolator
Between the analog input and
the trigger input:
Power = Transformer, Signal =
Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength 510 VAC between isolated
circuits for 1 minute at a
leakage current of 5 mA max.
I/O power supply method Supply from the NX Bus Current capacity of
I/O power supply
terminals
IOV: 0.1 A max. per terminal
IOG: 0.1 A max. per terminal
NX Unit power
consumption
• Connected to a CPU Unit
3.30 W max.
• Connected to a
Communications Coupler Unit
2.95 W max.
Current consumption
from I/O power supply
30 mA max.
Weight 140 g max.

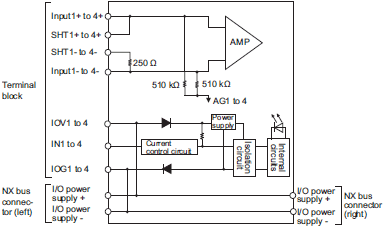

Circuit Configuration 3708_sp_2_2
The following channels are individually isolated.
• Input1+, Input1-, SHT1+, SHT1-
• Input2+, Input2-, SHT2+, SHT2-
• Input3+, Input3-, SHT3+, SHT3-
• Input4+, Input4-, SHT4+, SHT4-
Installation orientation
and restrictions*2
Installation orientation:
• Connected to a CPU Unit
Possible in upright installation.
• Connected to a Communications Coupler Unit
Possible in upright installation.
Restrictions: No restrictions

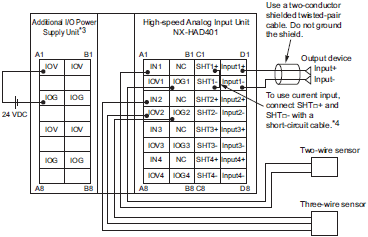

Terminal connection
diagram
3708_sp_2_3
Input disconnection
detection*5
• When the input range is 1 to 5 V or 4 to 20 mA: Supported
• Other input range: Not supported

*1. This is the minimum value. The Units perform conversion in the sampling period determined based on the Number of
     Samplings Setting. The sampling period must be set to this value or longer.
*2. The following Unit cannot be connected next to the Unit.
      · Relay Output Unit (NX-OC[][][][])
*3. Besides the Additional I/O Power Supply Unit, there are Units that can supply I/O power to the NX bus. For example,
      you can use a Connected Communications Coupler Unit. If you use this Unit to supply I/O power to the High-speed
      Analog Input Units, the Additional I/O Power Supply Unit is unnecessary. The Additional I/O Power Supply Unit is also
      unnecessary if you do not use the trigger inputs of the High-speed Analog Input Units.
*4. Short-circuit cables are not included in the product. The cable length must be 4 cm or less and allow for wiring to the
      screwless clamping terminal block. Be sure to use cables and ferrules that are applicable to the screwless clamping
      terminal block.
      If the cable is too long, the analog input values may not be accurate.
*5. To use this function, set the Disconnection Detection Enable/Disable to Enable.

NX-HAD402

Unit name High-speed Analog Input Unit Model NX-HAD402
External connection
terminals
Screwless clamping terminal block (16 terminals ×2)
I/O refreshing method Synchronous I/O refreshing
Indicators TS indicator, IN indicator
3708_sp_3_1
Analog
input
section
Number of points 4 points Trigger
input
section
Number of
points
4 points
Input method Differential input Internal I/O
common
PNP
Input range Voltage:
• -10 to 10 V
• -5 to 5 V
• 0 to 10 V
• 0 to 5 V
• 1 to 5 V
Current:
• 0 to 20 mA
• 4 to 20 mA
Rated input
voltage
24 VDC (20.4 to 28.8 VDC)
Input conversion
range
• Input range of -10 to 10 V or
-5 to 5 V
-1% to 101% (full scale)
• Other input ranges
-2% to 102% (full scale)
Input
current
3.5 mA typical (24 VDC)
Absolute
maximum rating
Voltage: ±15 V
Input current: ±30 mA
ON voltage/
ON current
15 VDC min./3 mA min.
(between IOG and each signal)
Input Impedance Voltage: 1 MΩ min.
Current: 250 Ω
OFF voltage/
OFF current
5 VDC max./1 mA max.
(between IOG and each signal)
Resolution • Input range of -10 to 10 V or
-5 to 5 V
1/64000 (full scale)
• Other input ranges
1/32000 (full scale)
ON/OFF
response
time
1 μs max./1 μs max.
Overall
accuracy
25°C ±0.1% (full scale) Input filter
time
No filter, 4 μs, 8 μs (default),
16 μs, 32 μs, 64 μs, 128 μs,
256 μs
0 to
55°C
±0.2% (full scale)
Conversion time 5 μs per channel*1
Dimensions 24 (W) × 100 (H) × 71 (D) Isolation method Between the analog input and
the NX bus:
Power = Transformer, Signal =
Digital isolator
Between analog inputs:
Power = Transformer, Signal =
Digital isolator
Between the trigger input and
the NX bus:
Signal = Digital isolator
Between the analog input and
the trigger input:
Power = Transformer, Signal =
Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength 510 VAC between isolated
circuits for 1 minute at a
leakage current of 5 mA max.
I/O power supply method Supply from the NX bus Current capacity of
I/O power supply
terminals
IOV: 0.1 A max. per terminal
IOG: 0.1 A max. per terminal
NX Unit power
consumption
• Connected to a CPU Unit
3.30 W max.
• Connected to a
Communications Coupler Unit
2.95 W max.
Current consumption
from I/O power supply
30 mA max.
Weight 140 g max.

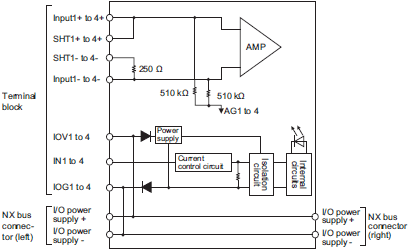

Circuit Configuration 3708_sp_3_2
The following channels are individually isolated.
• Input1+, Input1-, SHT1+, SHT1-
• Input2+, Input2-, SHT2+, SHT2-
• Input3+, Input3-, SHT3+, SHT3-
• Input4+, Input4-, SHT4+, SHT4-
Installation orientation
and restrictions*2
Installation orientation:
• Connected to a CPU Unit
Possible in upright installation.
• Connected to a Communications Coupler Unit
Possible in upright installation.
Restrictions: No restrictions

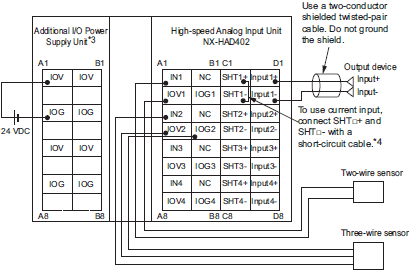

Terminal connection
diagram
3708_sp_3_3
Input disconnection
detection*5
• When the input range is 1 to 5 V or 4 to 20 mA: Supported
• Other input range: Not supported

*1. This is the minimum value. The Units perform conversion in the sampling period determined based on the Number of
      Samplings Setting. The sampling period must be set to this value or longer.
*2. The following Unit cannot be connected next to the Unit.
      · Relay Output Unit (NX-OC[][][][])
*3. Besides the Additional I/O Power Supply Unit, there are Units that can supply I/O power to the NX bus. For example,
      you can use a Connected Communications Coupler Unit. If you use this Unit to supply I/O power to the High-speed
      Analog Input Units, the Additional I/O Power Supply Unit is unnecessary. The Additional I/O Power Supply Unit is also
      unnecessary if you do not use the trigger inputs of the High-speed Analog Input Units.
*4. Short-circuit cables are not included in the product. The cable length must be 4 cm or less and allow for wiring to the
      screwless clamping terminal block. Be sure to use cables and ferrules that are applicable to the screwless clamping
      terminal block.
      If the cable is too long, the analog input values may not be accurate.
*5. To use this function, set the Disconnection Detection Enable/Disable to Enable.

Version Information

Connected to a CPU Unit

Refer to the user's manual for the CPU Unit for details on the CPU Units to which NX Units can be connected.

NX Unit Corresponding unit versions/versions *
Model Unit version CPU Unit Sysmac Studio
NX-HAD401 Ver.1.0 Ver. 1.18 Ver.1.23
NX-HAD402

* Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support
   is provided by the oldest available version after the specified version. Refer to the user's manuals for the specific Units for
   the relation between models and versions.

Connected to an EtherCAT Coupler Unit

The items that are used in the version combination table are given below.

NX Unit Corresponding unit versions/versions *
Model Unit version EtherCAT Coupler Unit CPU Unit or Industrial PC Sysmac Studio
NX-HAD401 Ver.1.0 Ver.1.0 Ver. 1.18 Ver.1.23
NX-HAD402

* Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support
   is provided by the oldest available version after the specified version. Refer to the user's manuals for the specific Units for
   the relation between models and versions.
