E3Z-LS

Distance-settable Photoelectric Sensor

E3Z-LS

Distance-settable Sensor Unaffected by Workpiece Color and Background

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Pre-wired Models
E3Z-LS61
E3Z-LS81
E3Z-LS63
E3Z-LS83

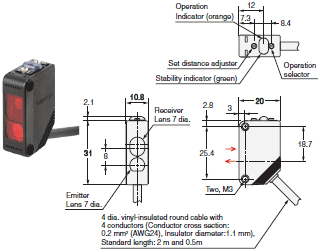

E3Z-LS Dimensions 2

Connector Models
E3Z-LS66
E3Z-LS86
E3Z-LS68
E3Z-LS88

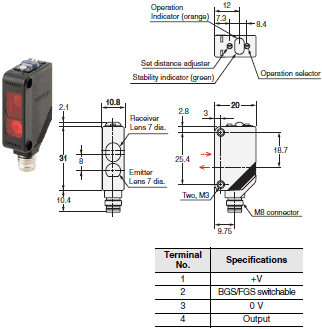

E3Z-LS Dimensions 3
