E3JM

Built-in Power Supply Photoelectric Sensor

E3JM

Model Contribute to Overall Cost Reduction

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

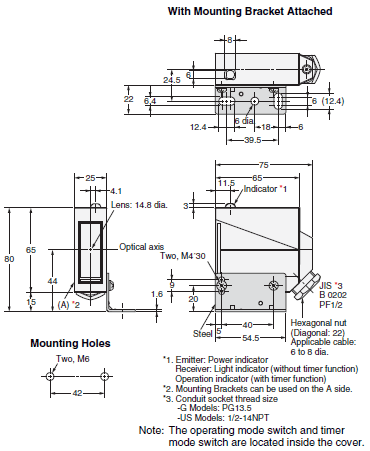

E3JM-10[]4(T)-N *

E3JM Dimensions 3

Note: The operating mode switch and timer mode switch are located inside the cover.

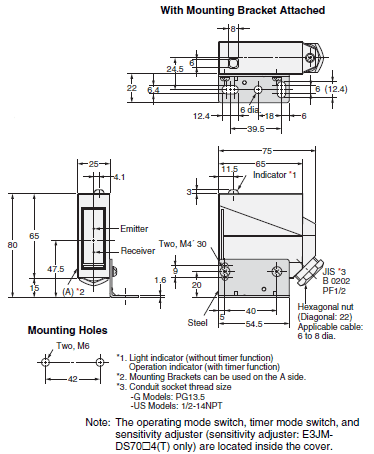

E3JM-R4[]4(T)
E3JM-DS70[]4(T)

E3JM Dimensions 4

Note: The operating mode switch, timer mode switch, and sensitivity adjuster (sensitivity adjuster: E3JM-DS70[]4(T) only) are located inside the cover.

* Models numbers for Through-beam Sensors (E3JM-10[]4(T)-N) are for sets that include both the Emitter and Receiver.
   The model number of the Emitter is always E3JM-10L-N. Add a “D” to get the model number of the Receiver (example:
   EE3JM-10DM4-N). Confirm the model numbers of the Emitter and Receiver in Ordering Information.

Accessories (Order separately)

Seal-type Long Slit
E39-S39

E3JM Dimensions 7
