EE-SPX301 / 401, EE-SPY30 / 40

Slot-type Reflective Photomicrosensor

EE-SPX301 / 401, EE-SPY30 / 40

Photomicrosensor with light modulation is not influenced by external light.

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

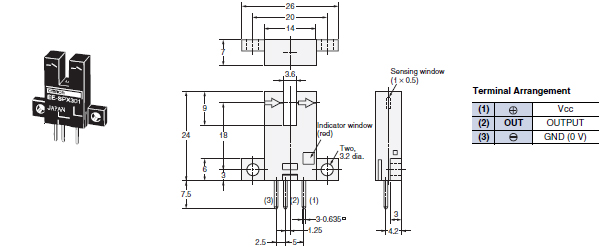

EE-SPX301, EE-SPX401

EE-SPX301 / 401, EE-SPY30 / 40 Dimensions 3

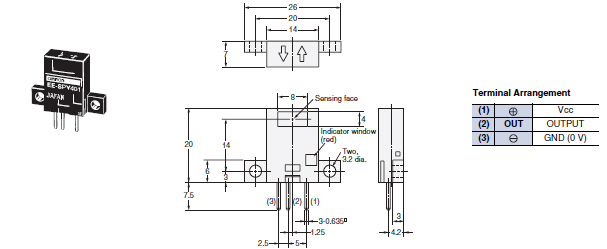

EE-SPY301, EE-SPY401

EE-SPX301 / 401, EE-SPY30 / 40 Dimensions 4

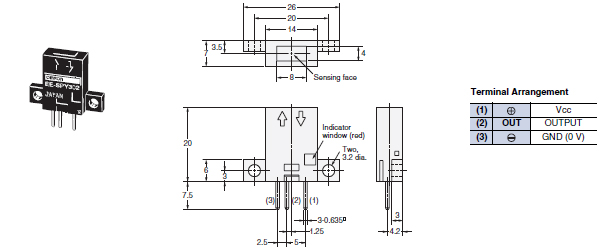

EE-SPY302, EE-SPY402

EE-SPX301 / 401, EE-SPY30 / 40 Dimensions 5
