E2E

Standard Proximity Sensor

E2E

Standard Sensors for Detecting Ferrous Metals under Standard Conditions

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Main Units

Model Number-Dimensions Drawing Number Lookup Table

E2E Dimensions 3

Note 1. Two clamping nuts and one toothed washer are provided with M8 to M30 Models.
         2. The model numbers of M8 to M30 Pre-wired Models are laser-marked on the milled section and cable section.
              This does not apply, however, to models that end in -U.

Pre-wired Models (Shielded)

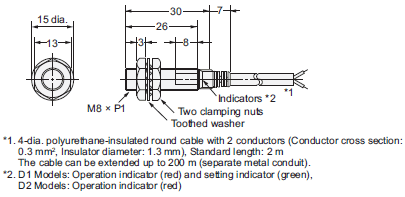

E2E Dimensions 5 E2E_Pre-wired Models (Shielded)_Dim1
E2E Dimensions 6 E2E_Pre-wired Models (Shielded)_Dim2

Diagram 1
E2E-CR6B[]/CR6C[]

E2E Dimensions 7 E2E-CR6B[]/CR6C[]_Dim

Diagram 3
E2E-C1B[]/C1C[]

E2E Dimensions 8 E2E-C1B[]/C1C[]_Dim

Diagram 2
E2E-CR8B[]/CR8C[]

E2E Dimensions 9 E2E-CR8B[]/CR8C[]_Dim

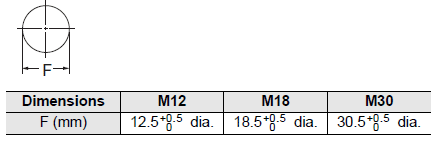

Mounting Hole Dimensions

E2E Dimensions 10 E2E_Mounting Hole Dimensions_Dim1

Pre-wired Models (Shielded)

E2E Dimensions 11 E2E_Pre-wired Models(Shielded)_Dim3

Diagram 4
E2E-X1B[]/X1C[]

E2E Dimensions 12 E2E-X1B[]/X1C[]_Dim

Pre-wired Models (Unshielded)

E2E Dimensions 13 E2E_Pre-wired Models (Unshielded)_Dim1



Diagram 5
E2E-X2D[], E2E-X1R5E[]/F[]

E2E Dimensions 15 E2E-X2D[]_Dim

Diagram 6
E2E-X4MD[], E2E-X2ME[]/F[]

E2E Dimensions 16 E2E-X4MD[]_Dim

Diagram 7
E2E-X1R5Y[]

E2E Dimensions 17 E2E-X1R5Y[]_Dim

Diagram 8
E2E-X2MY[]

E2E Dimensions 18 E2E-X2MY[]_Dim

Diagram 9
E2E-X3D[], E2E-X2E[]/F[]

E2E Dimensions 19 E2E-X3D[]_Dim

Diagram 10
E2E-X8MD[], E2E-X5ME[]/F[]

E2E Dimensions 20 E2E-X8MD[]_Dim

Diagram 11
E2E-X2Y[]

E2E Dimensions 21 E2E-X2Y[]_Dim

Diagram 12
E2E-X5MY[]

E2E Dimensions 22 E2E-X5MY[]

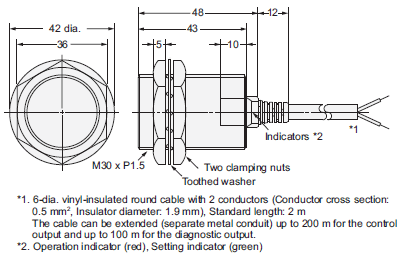

Pre-wired Models (Shielded)

E2E Dimensions 23 E2E_Pre-wired Models (Shielded)_Dim

Diagram 13
E2E-X3T1

E2E Dimensions 24 E2E-X3T1_Dim

Pre-wired Models (Unshielded)

E2E Dimensions 25 E2E_Pre-wired Models (Unshielded)_Dim2



Diagram 14
E2E-X7D[]/E2E-X5E[]/F[]
E2E-X5Y[]/E2E-X7T1

E2E Dimensions 27 E2E-X7D[]_Dim

Diagram 15
E2E-X14MD[]/E2E-X10ME[]/F[]
E2E-X10MY[]

E2E Dimensions 28 E2E-X14MD[]_Dim



Diagram 16
E2E-X10D[]/E2E-X10E[]/F[]
E2E-X10Y[]/E2E-X10T1

E2E Dimensions 30 E2E-X10D[]_Dim

Diagram 17
E2E-X20MD[]/E2E-X18ME[]/F[]
E2E-X18MY[]

E2E Dimensions 31 E2E-X20MD[]_Dim



M8 Connector Models
(Shielded)

E2E Dimensions 33 E2E_M8 Connector Models (Shielded)_Dim

M8 Connector Models
(Unshielded)

E2E Dimensions 34 E2E_M8 Connector Models (Unshielded)_Dim



Diagram 28
E2E-X2D[]-M3G/E2E-X1R5E[]-M3/X1RF[]-M3

E2E Dimensions 36 E2E-X2D[]-M3G_Dim

Diagram 29
E2E-X4MD[]-M3G/E2E-X2ME[]-M3/X2MF[]-M3

E2E Dimensions 37 E2E-X4MD[]-M3G_Dim

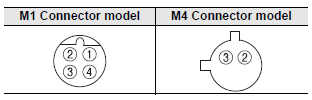

M12 Connector Models
(Shielded)

E2E Dimensions 38 M12 Connector Models (Shielded)_Dim

M12 Connector Models
(Unshielded)

E2E Dimensions 39 M12 Connector Models (Unshielded)_Dim

Diagram 18
E2E-X2D[]-M1(G)
E2E-X1R5E[]-M1/E2E-X1R5F[]-M1

E2E Dimensions 40 E2E-X2D[]-M1(G)_Dim

Diagram 19
E2E-X4MD[]-M1(G)
E2E-X2ME[]-M1/E2E-X2MF[]-M1

E2E Dimensions 41 E2E-X4MD[]-M1(G)_Dim

Diagram 20
E2E-X3D[]-M1(G)
E2E-X2E[]-M1/E2E-X2F[]-M1

E2E Dimensions 42 E2E-X3D[]-M1(G)_Dim

Diagram 21
E2E-X8MD[]-M1(G)
E2E-X5ME[]-M1/E2E-X5MF[]-M1

E2E Dimensions 43 E2E-X8MD[]-M1(G)_Dim



Diagram 22
E2E-X2Y[]-M1

E2E Dimensions 45 E2E-X2Y[]-M1_Dim

Diagram 23
E2E-X5MY[]-M1

E2E Dimensions 46 E2E-X5MY[]-M1_Dim

Diagram 24
E2E-X7D[]-M1(G)/E2E-X5E[]-M1/X5F[]-M1
E2E-X5Y[]-M1

E2E Dimensions 47 E2E-X7D[]-M1(G)_Dim

Diagram 25
E2E-X14MD[]-M1(G)/E2E-X10ME[]-M1/X10MF[]-M1
E2E-X10MY[]-M1

E2E Dimensions 48 E2E-X14MD[]-M1(G)_Dim

Diagram 26
E2E-X10D[]-M1(G)/E2E-X10E[]-M1/X10F[]-M1
E2E-X10Y[]-M1

E2E Dimensions 49 E2E-X10D[]-M1(G)_Dim

Diagram 27
E2E-X20MD[]-M1(G)/E2E-X18ME[]-M1/X18MF[]-M1
E2E-X18MY[]-M1

E2E Dimensions 50 E2E-X20MD[]-M1(G)_Dim

Mounting Hole Dimensions

E2E Dimensions 52 E2E_Mounting Hole Dimensions_Dim3

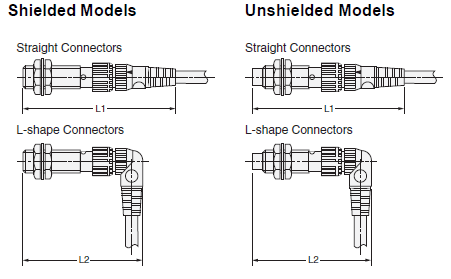

Pre-wired Connector Models (Shielded)

E2E Dimensions 54 E2E_Pre-wired Connector Models (Shielded)_Dim

Diagram 30
E2E-X2D[]-M1TGJ-U *3
E2E-X2D1-M1TGJ

E2E Dimensions 56 E2E-X2D[]-M1TGJ-U_Dim

Diagram 31
E2E-X3D[]-M1GJ
E2E-X3D1-M1J-T
E2E-X3D[]-M1TGJ-U *3
E2E-X3D1-M1TGJ

E2E Dimensions 58 E2E-X3D[]-M1GJ_Dim

Diagram 33
E2E-X7D[]-M1GJ
E2E-X7D[]-M1J-T
E2E-X7D[]-M1TGJ-U *3
E2E-X7D1-M1TGJ

E2E Dimensions 60 E2E-X7D[]-M1GJ_Dim

Diagram 35
E2E-X10D[]-M1GJ
E2E-X10D[]-M1J-T
E2E-X10D[]-M1TGJ-U *3
E2E-X10D1-M1TGJ

E2E Dimensions 62 E2E-X10D[]-M1GJ_Dim

Pre-wired Connector Models (Unshielded)

Diagram 32
E2E-X8MD1-M1GJ
E2E-X8MD1-M1TGJ

E2E Dimensions 65 E2E-X8MD1-M1GJ_Dim

Diagram 34
E2E-X14MD[]-M1GJ
E2E-X14MD1-M1TGJ

E2E Dimensions 67 E2E-X14MD[]-M1GJ_Dim

Diagram 36
E2E-X20MD1-M1GJ
E2E-X20MD1-M1TGJ

E2E Dimensions 69 E2E-X20MD1-M1GJ_Dim

Dimensions for Proximity Sensors with Sensor I/O Connectors

E2E Dimensions 70 Sensor I/O Connectors_Dim

Dimensions with the XS2F Connected

E2E Dimensions 71 XS2F_Dim

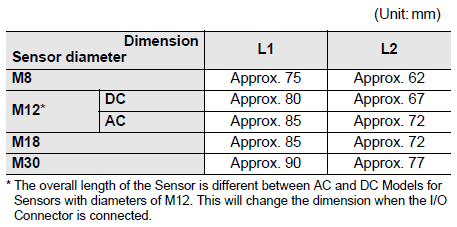

* The overall length of the Sensor is different between AC and DC Models for Sensors with diameters of M12. This will
    change the dimension when the I/O Connector is connected.

Dimensions with the XS3F Connected

E2E Dimensions 72 XS3F_Dim
