E2FQ

Chemical-resistant Proximity Sensor

E2FQ

Inductive Proximity Sensor with Chemical-resistant Fluororesin Case

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

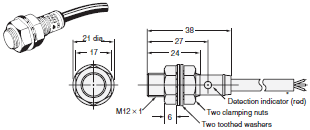

E2FQ-X2E1

E2FQ Dimensions 2

* 6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator
  diameter: 1.9 mm), Standard length: 2 m
  The cable can be extended up to 200 m (separate metal conduit).

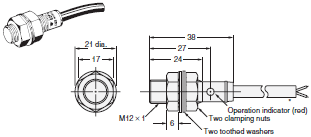

E2FQ-X2D1

E2FQ Dimensions 3

* 6-dia. vinyl-insulated round cable with 2 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator
   diameter: 1.9 mm), Standard length: 2 m
  The cable can be extended up to 200 m (separate metal conduit).

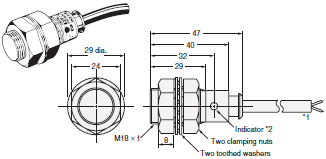

E2FQ-X5E1

E2FQ Dimensions 4

* 6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator
   diameter: 1.9 mm), Standard length: 2 m
  The cable can be extended up to 200 m (separate metal conduit).

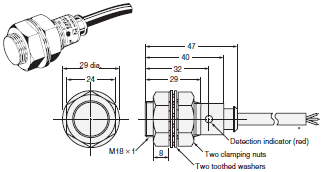

E2FQ-X5D1
E2FQ-X5Y1

E2FQ Dimensions 5

*1. 6-dia. vinyl-insulated round cable with 2 conductors (Flameresistant, Conductor cross section: 0.5 mm2, Insulator
       diameter: 1.9 mm), Standard length: 2 m
       The cable can be extended up to 200 m (separate metal conduit).
*2. D1: Operation indicator (red) and Setting indicator (green)
       Y1: Operation indicator (red)

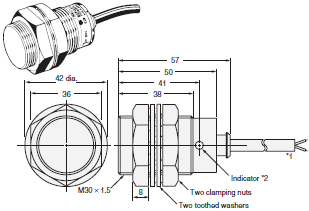

E2FQ-X10E1

E2FQ Dimensions 6

* 6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator
  diameter: 1.9 mm), Standard length: 2 m
  The cable can be extended up to 200 m (separate metal conduit).

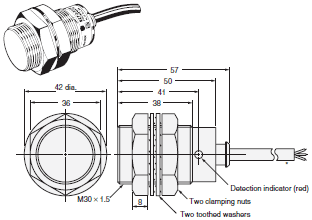

E2FQ-X10D1
E2FQ-X10Y1

E2FQ Dimensions 7

*1. 6-dia. vinyl-insulated round cable with 2 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator
       diameter: 1.9 mm), Standard length: 2 m
       The cable can be extended up to 200 m (separate metal conduit).
*2. D1: Operation indicator (red) and Setting indicator (green)
       Y1: Operation indicator (red)

Mounting Hole Dimensions

E2FQ Dimensions 8
