E2S

Super-compact Proximity Sensor

E2S

Advanced Performance and Wide Range of Selections in a Supercompact Size

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

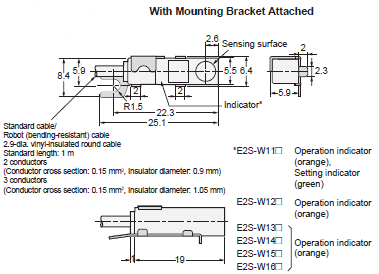

E2S-W1[]

E2S Dimensions 3

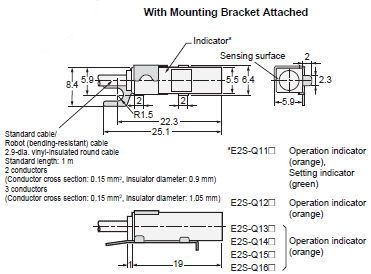

E2S-Q1[]

E2S Dimensions 4

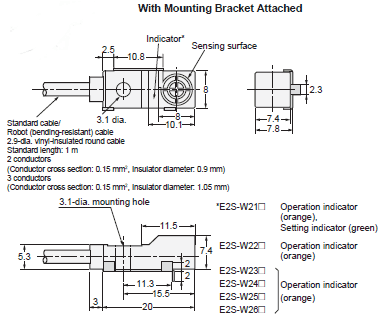

E2S-W2[]

E2S Dimensions 5

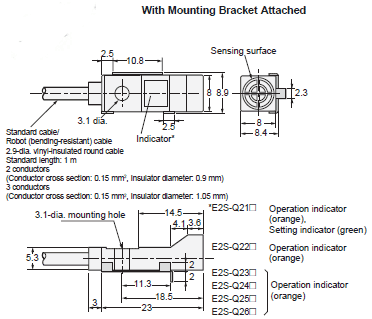

E2S-Q2[]

E2S Dimensions 6

Accessories (Order Separately)

Mounting Bracket

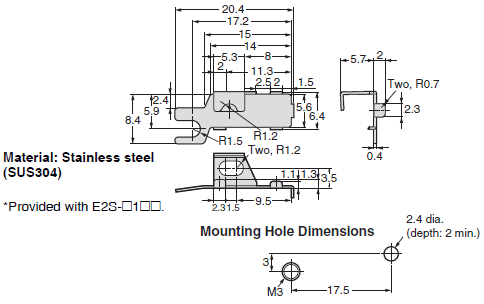

Y92E-C1R6

E2S Dimensions 8

Material: Stainless steel (SUS304)
* Provided with E2S-[]1[][].

Mounting Bracket

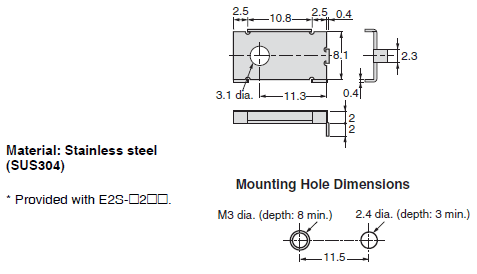

Y92E-C2R5

E2S Dimensions 9

Material: Stainless steel (SUS304)
* Provided with E2S-[]2[][].

Mounting Bracket

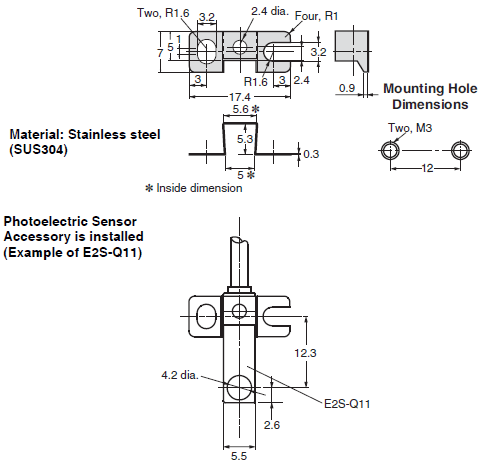

Y92E-D1R6

E2S Dimensions 10

Material: Stainless steel (SUS304)
* Inside dimension

Mounting Bracket

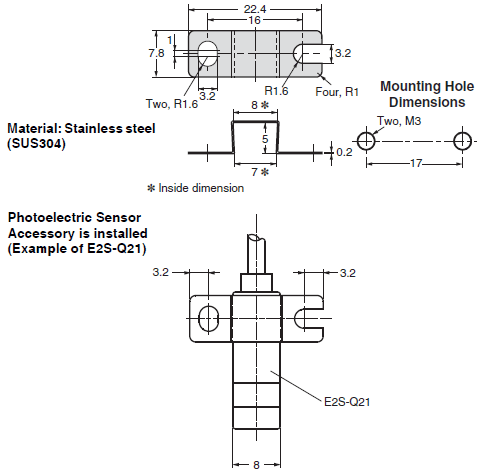

Y92E-D2R5

E2S Dimensions 11

Material: Stainless steel (SUS304)
* Inside dimension
