TL-W

Flat Inductive Proximity Sensor

TL-W

Standard Flat Sensors in Many Different Variations

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

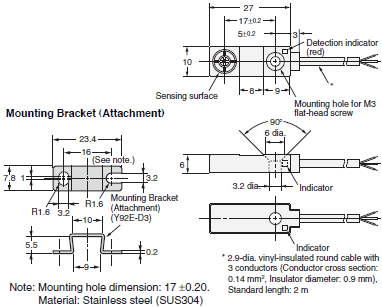

TL-W1R5MC1

TL-W Dimensions 2

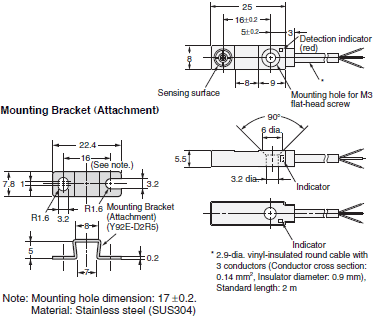

TL-W3MC[]

TL-W Dimensions 3

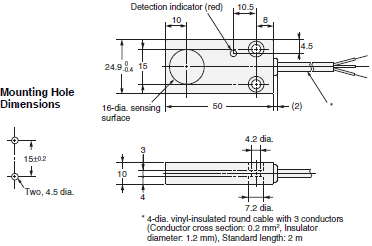

TL-W5MC[]
TL-W5MD[]

TL-W Dimensions 4

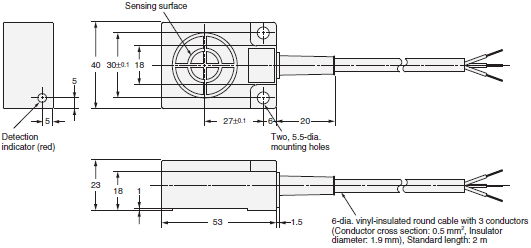

TL-W5E[]
TL-W5F[]

TL-W Dimensions 5

TL-W20ME[]

TL-W Dimensions 6
