Cable Amplifier Proximity Sensor

E2EC

Subminiature Sensors with Long-distance Detection

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Main Units

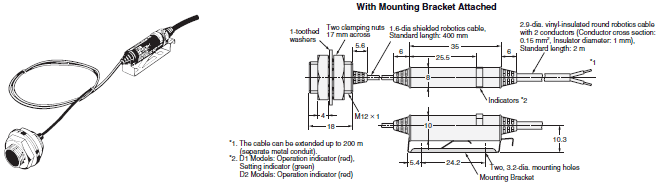

E2EC-CR8D[]

E2EC Dimensions 3

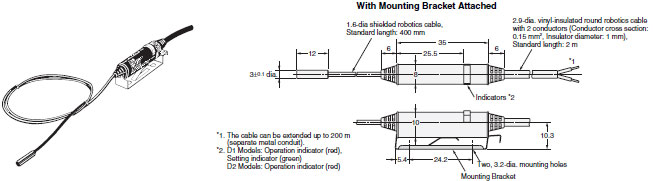

E2EC-C1R5D[]

E2EC Dimensions 4

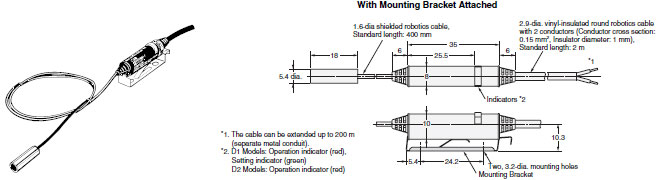

E2EC-C3D[]

E2EC Dimensions 5

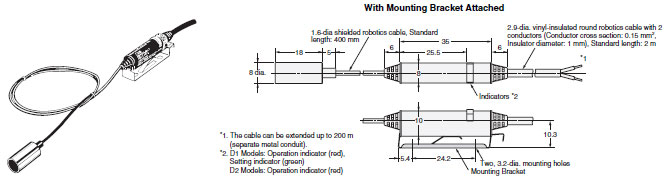

E2EC-X4D[]

E2EC Dimensions 6

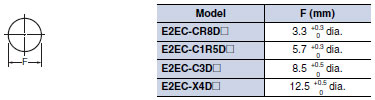

Mounting Hole Dimensions

E2EC Dimensions 7

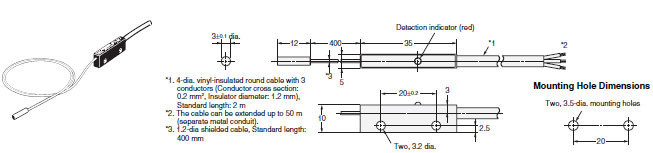

E2EC-CR5C1

E2EC Dimensions 8

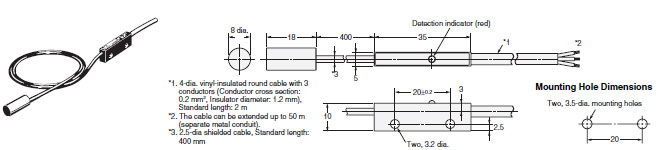

E2EC-C2R5C1

E2EC Dimensions 9

Mounting Hole Dimensions

E2EC Dimensions 10

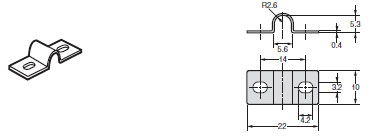

Mounting Bracket

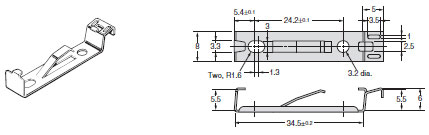

E2EC Dimensions 11

Material: Stainless steel (SUS301)
Note: Provided with DC 2-Wire Models.

Accessories (Order Separately)

Mounting Bracket (for 5.4 dia.)
Y92E-F5R4

E2EC Dimensions 13

Material: Stainless steel (SUS304)
Note: Used for E2EC-C1R5D[] Head.
