E2K-C

Long-distance type

E2K-C

Long-distance Capacitive Sensor with Adjustable Sensitivity

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

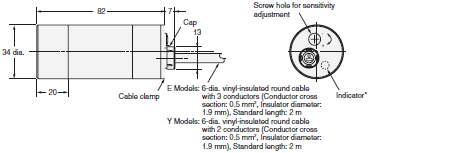

E2K-C25M[][]

E2K-C Dimensions 3

* E and F Models: Detection indicator (red)
   Y Models: Operation indicator (red)

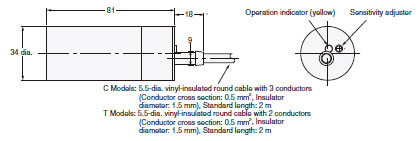

E2K-C20M[][]

E2K-C Dimensions 4

Accessories (Order Separately)

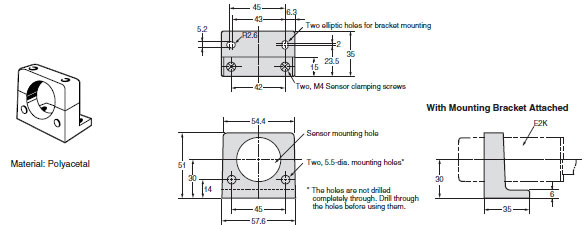

Mounting Bracket (Accessory)
Y92E-A34

E2K-C Dimensions 6

Note: Provided with the product.
