E2J

Long Sensing-distance Capacitive Separate Amplifier Proximity Sensor

E2J

Flat Capacitive Sensor with Separate Amplifier Ideal for Mounting on Robot Hands.

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Main Units

Sensors

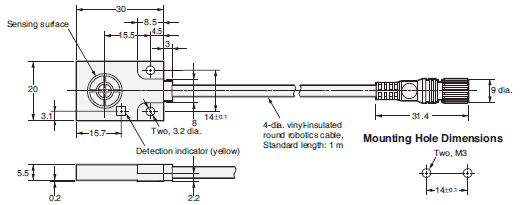

E2J-W10MA

E2J Dimensions 4

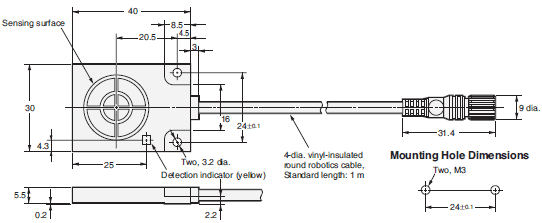

E2J-W20MA

E2J Dimensions 5

Amplifier Units

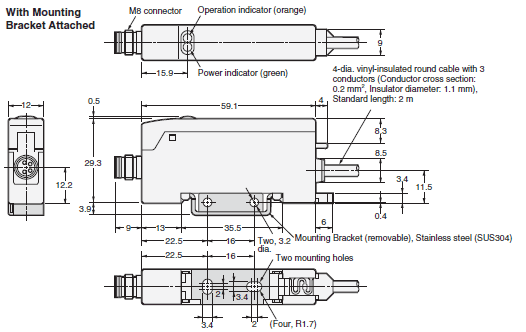

E2J-JC4A

E2J Dimensions 7

Accessories (Order Separately)

Dust Cover

Material: polyvinyl chloride (red)

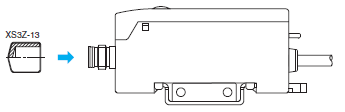

XS3Z-13 (for E2J-JC4A Amplifier Unit)

E2J Dimensions 10

XS3Z-15 (for E2J-W[]MA Sensor)

E2J Dimensions 11
