E2K-L

Liquid Level Sensor

E2K-L

Liquid Level Sensor That Is Unaffected by the Color of the Pipe or Liquid

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

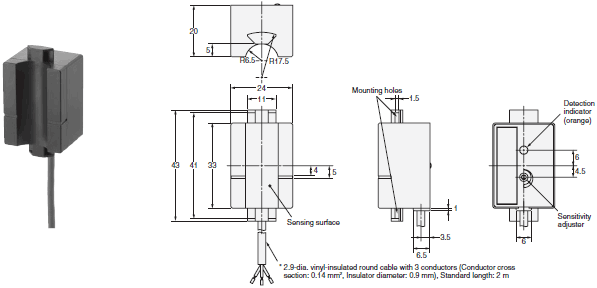

E2K-L13MC1

E2K-L Dimensions 2

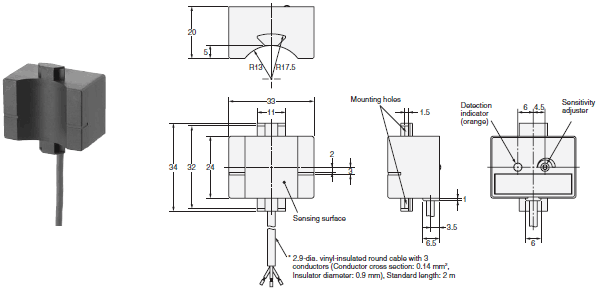

E2K-L26MC1

E2K-L Dimensions 3
