K3MA-L

Temperature Meter

K3MA-L

Highly Visible LCD Display with 2-color (Red and Green) LEDs

Caution: All units are in millimeters unless otherwise indicated.

K3MA-L

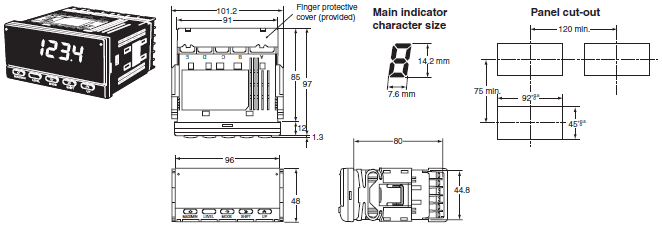

K3MA-L Dimensions 1

Mounting Recommended Panel Thickness 1 to 8 mm.
Mount the product horizontally.

The K3MA-L uses M3 terminals.
A terminal cover is provided.
