R87B

Box Fan

R87B

Comprehensive Lineup of Single, Double, and Triple Axial Fans with Easy One-step Mounting

Caution: All units are in millimeters unless otherwise indicated.

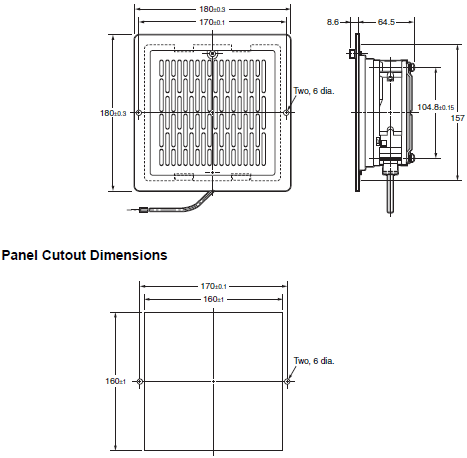

R87B-[]A[]A15[]PF(R)
Single Box Fan

R87B Dimensions 1

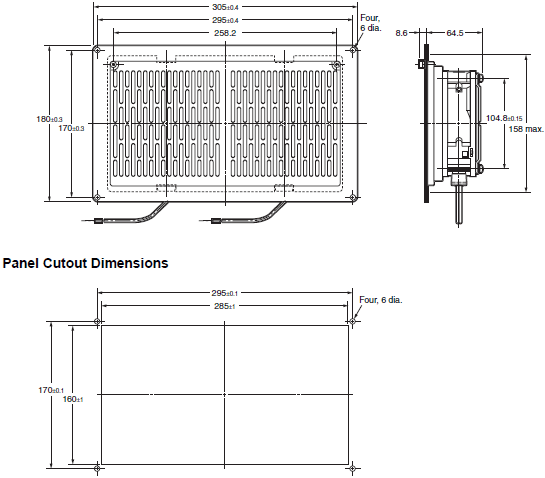

R87B-[]A[]A15[]PF(R)2
Double Box Fan

R87B Dimensions 2

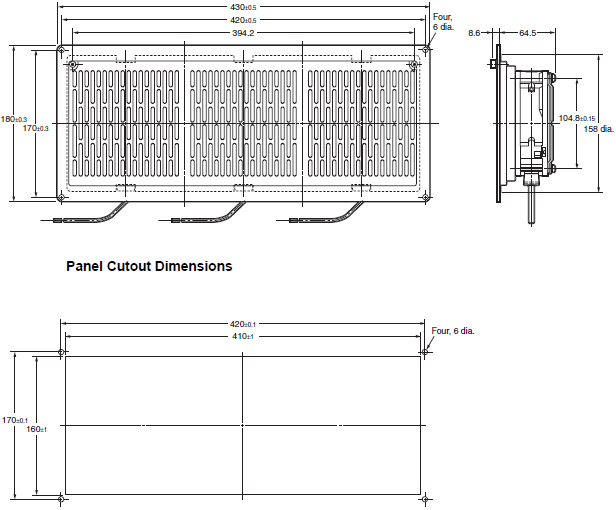

R87B-[]A[]A15[]PF(R)3
Triple Box Fan

R87B Dimensions 3

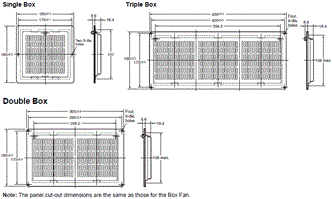

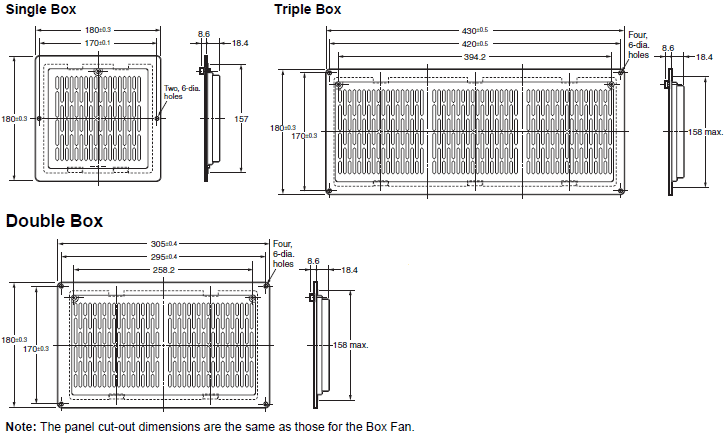

R87B-N[]/R87B-PF
Optional Parts

Single Box

R87B Dimensions 5

Triple Box

R87B Dimensions 6

Double Box

R87B Dimensions 7

R87B-PF01 (Replacement Filter)

R87B Dimensions 8
