Question
What is an alternative model for the H3BA Multi-functional Timer?
Answer

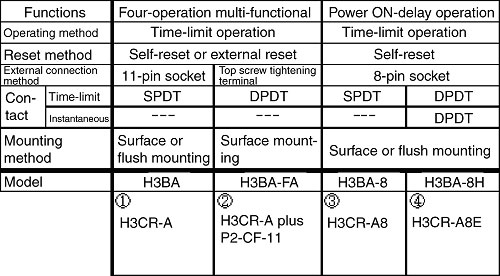

1. It depends on the H3BA model. Refer to the following table.
Note:
1.
The bottom row gives recommended alternative models or models with alternative functions. For details, see the following information.
2.
The alternative model in column (1) is the H3CR-A. Because the length of the body is about 12 mm shorter than that of the H3BA, the Y92H-7 Hold-down Clips should be used instead of the Y92H-1 Hold-down Clips when using the PL11 Socket.
3.
There is no alternative in column (2) because the H3CR-A has no top-wired terminal. However, an alternative timer function can be achieved by using the H3CR-A and the P2CF-11 Front Connecting Socket, and wiring to the Front Connecting Socket. If a top-wired terminal is required, see whether the H3DE-M/S Solid-state Timer or H2C-F Motor Timer can be used.
4.
The alternative model in column (3) is the H3CR-A8. Because the length of the body is about 12 mm shorter than that of the H3BA-8H, the Y92H-8 Hold-down Clips should be used instead of the Y92H-2 Hold-down Clips when using the PF085A Socket and the Y92H-7 Hold-down Clips should be used instead of the Y92H-1 Hold-down Clips when using the PL08 Socket.
5.
The alternative model in column (4) is the H3CR-A8E. The Hold-down Clips to be used are the same as those described for the H3BA-8 in column (3).
6.
The alternative model in column (4) is the H3CR-A8E. The Hold-down Clips to be used are the same as those described for the H3BA-8 in column (3).

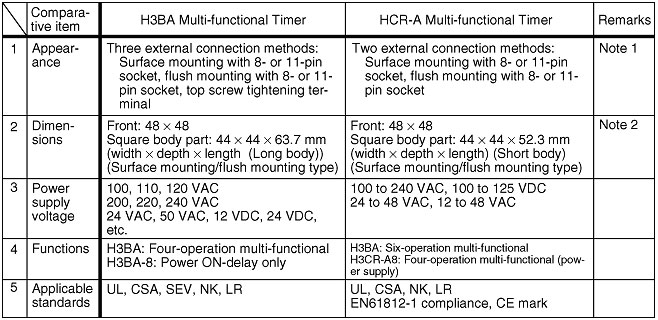

Note 1:
The H3CR-A has no model that is equivalent to the top-wired terminal model of the H3BA-FA.
Note 2:
The length of the square body part of the H3CR-A is 52.3 mm (short body), which is approximately 12 mm shorter than the 63.7-mm (long body) length of the H3BA surface mounting/flush mounting type. Because of this, when using Hold-down Clips with an alternative model, the Hold-down Clips must be changed for models with a shorter body. The H3CR Series also has a long-body model, which is distinguished from the short-body model by adding the letter "L" to the model number.
