Question
Which 61F Floatless Level Controller is best to use for a Programmable Controller input? Pump control is being performed by the Programmable Controller.
Answer
We recommend the following models.

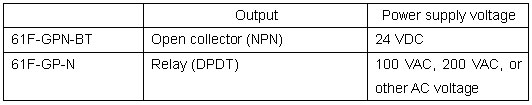

| Output | Power supply voltage | |
| 61F-GPN-BT | Open collector (NPN) | 24 VDC |
| 61F-GP-N | Relay (DPDT) | 100 VAC, 200 VAC, or other AC voltage |
Recommended Products
Other Level Switches FAQ
-
Why do the specifications for the High-sensitivity 61F Floatless Level Controller say, "possible to use with 15 kOHM or less, however, this may cause reset failure"?
-
Can two 61F Floatless Level Controllers and two Electrode Holders be used in the same tank?
-
When voltage is applied to 61F Floatless Level Controller, it operates regardless of the actual liquid level. What is the cause of the problem and how can it be corrected?
