Question

What does the time chart look like for a basic signal ON/OFF-delay operation (operating mode C)?

Answer

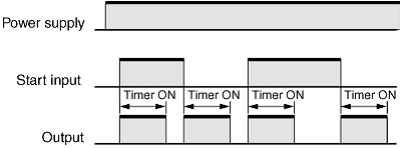

Timers Triggered by Start Input

C: Signal ON/OFF delay

Note:The start input is valid while the Timer is in operation.

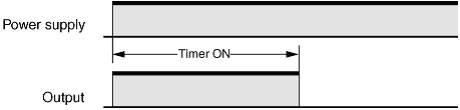

Timers Triggered by Power ON

(C: Signal ON/OFF-delay with start input held ON)
