Question

What does the time chart look like for a basic one-shot output operation (operating mode J)?

Answer

Timers Triggered by Start Input

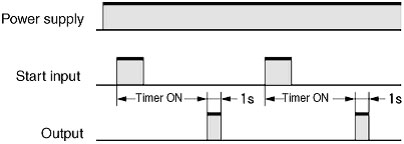

J: One-shot output

Note:Start input is valid while the Timer is in operation.

Timers Triggered by Power ON

(J: One-shot output with start input held ON)
