What is the maintenance forecast monitor on S8VS Switch Mode Power Supply?
Answer
As time passes, the characteristics of the electrolytic capacitor inside the Power Supply deteriorate. The maintenance forecast monitor indicates the approximate time that is left until the Power Supply will stop performing sufficiently, by calculating the deterioration of the electrolytic capacitor.

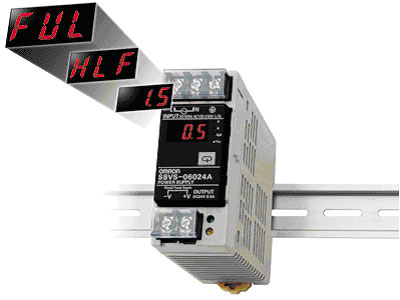

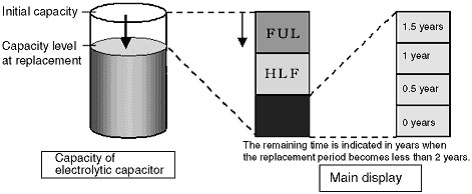

Example Using S8VS-06024A
*As a guideline, replace the Power Supply within one month when the remaining years reaches 0.0 years.

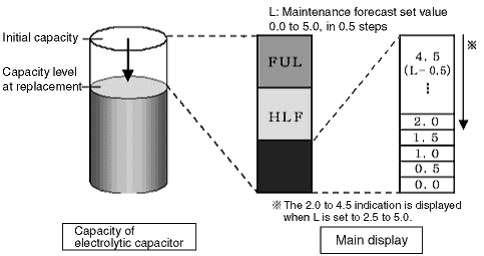

Example Using S8VS-[][][]24A (Excluding S8VS-06024A)
*As a guideline, replace the Power Supply within one month when the remaining years reaches 0.0 years.
Applicable model: S8VS-[][][]A
Model numbers with the suffix "A" are equipped with the maintenance forecast monitor.
