What are push-on and push-off alternating bits?

Answer



The ladder program and data trace results are as follows:

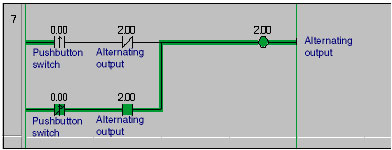

Ladder Diagram

Programming: CS1/CJ1-series Programmable Controllers

Figure 1

Data Trace Results

Figure 2

CIO000000: Pushbutton switch (CIO 0.00)
CIO000200: Alternating output (CIO 2.00)
