FAQ00562 of Temperature Controllers FAQ

Use the input shift. The setting method is given below.

E5CS

1. Setting Input Shift

2. Operation Type Setting

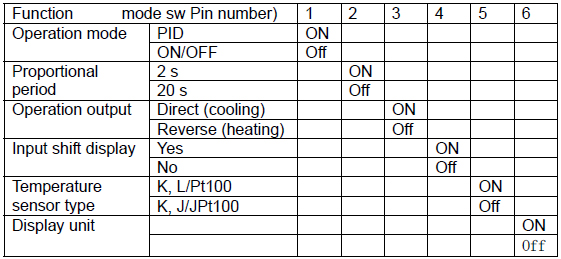

Use the operation mode switches to change the operation mode. (All switches are OFF by default.)

Note: The previous Pt100 has been changed to JPt100 accompanying JIS revisions. The previous J-DIN has been changed to L accompanying DIN standard revisions.

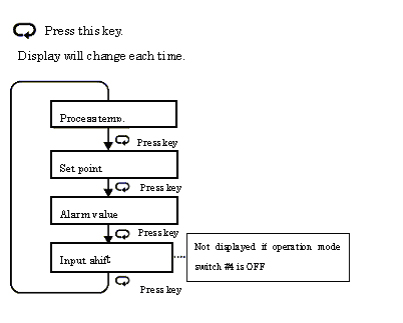

To set an input shift, turn ON pin 4, turn ON the power supply, and then press the switch key to display H0 (input shift = 0). at this point, the Up and Down Keys can be used to set the shift value.

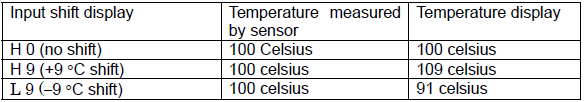

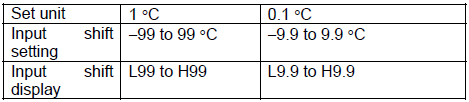

Note: If control mode switch 4 is OFF (no input shift), the input shift will not be displayed, but the shift will function. The setting ranges are as follows for the set unit:

Applicable Models: E5CS
