FAQ00946 of Rotary Encoders FAQ

FAQ No. FAQ00946

Primary Contents

Question

What timing is pulse signal of phase Z output?

Answer



Phase Z outputs signal only once per a rotation.

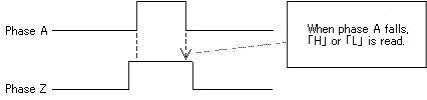

Phase Z signal rises before phase A rises and falls after phase A falls.

We recommend using to make phase A and phase Z serial, to take timing with rising or falling of phase A to improve accuracy.
