Question
How many G3PX Power Controllers can be connected to one Temperature Controller?
Answer
1. Current Outputs
Up to two G3PX Controllers can be connected in a serial drive. However, an OMRON Temperature Controller (allowable load impedance: 600 Ω) must be used.
2. Voltage Outputs

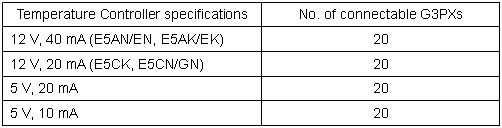

| Temperature Controller specifications | No. of connectable G3PXs |
| 12 V, 40 mA (E5AN/EN, E5AK/EK) | 20 |
| 12 V, 20 mA (E5CK, E5CN/GN) | 20 |
| 5 V, 20 mA | 20 |
| 5 V, 10 mA | 20 |
Recommended Products
Other Power Controllers FAQ
-
Which terminals should the G3PX Power Controller inputs be connected to?
-
Can three G3PX Power Controllers for single-phase applications be combined for control of three-phase loads?
-
What are the conditions for detecting disconnection for G3PX-2[][]EHN-CT Power Controllers that detect disconnection for multiple heaters?
