Question
What is a level indicator?
Answer
A level indicator is a series of 6 level LEDs used to visually check the output level. It is not a very accurate indicator, however, and only provides an indication of the load output.

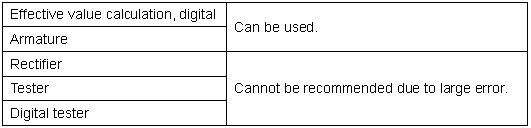

To accurately find out the output amount, use a meter that displays the effective values of AC circuit voltage and current.
| Effective value calculation, digital | Can be used. |
| Armature | |
| Rectifier | Cannot be recommended due to large error. |
| Tester | |
| Digital tester |
