Question
Are there cables available to connect Mitsubishi PLC I/O Modules and I/O Relay Terminals?
Answer

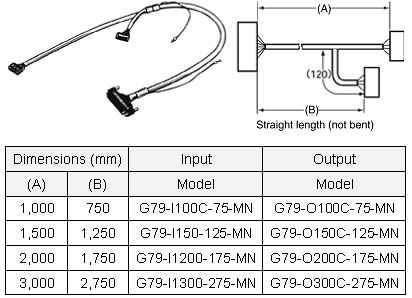

Cables are available to connect 32-point and 64-point Connector-type I/O Modules for Mitsubishi Programmable controllers.
Note 1: Insert a 2- or 3-digit number corresponding to the cable dimensions.
Note 2: Insert a 2- or 3-digit number corresponding to the cable dimensions.
Note:Before use, check the input voltage and other specifications of the Programmable controller Module as well as the model and rated voltage of the I/O Relay Terminal.
