Question
Is there a model of G7TC-O[][] Output Relay Terminal that use relays with NC contacts?
Answer
No. There are no Relay Terminals that provide relays with NC contacts.
You can purchase the I/O Relay Terminal and I/O Relays separately and use them together.
Note: The coil voltage must be specified for the I/O Terminal and the I/O Relays.

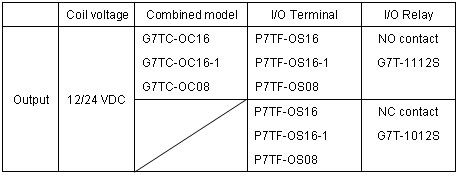

Example: Creating a Relay Terminal using the G7TC-OC16 24 VDC (NC contacts).
Sixteen G7T-1012S 24-VDC Relays are required for one G7TF-OS16 24-VDC I/O Terminal.
Applicable models: G7TC-OC16, G7TC-OC16-1, and G7TC-OC08
