FAQ01914 of Power Controllers FAQ

FAQ No. FAQ01914

Primary Contents

Question

How many G3PX Power Controllers can be connected to one Temperature Controller?

Answer



1. Current Outputs

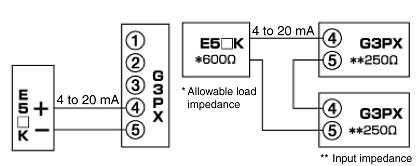

Up to two G3PX Controllers can be connected in a serial drive. However, an OMRON Temperature Controller (allowable load impedance: 600 Ω) must be used.

2. Voltage Outputs

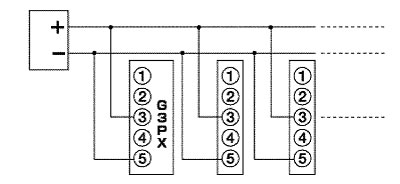

Temperature Controller specificationsNo. of connectable G3PXs
12 V, 40 mA (E5AN/EN, E5AK/EK)20
12 V, 20 mA (E5CK, E5CN/GN)20
5 V, 20 mA20
5 V, 10 mA20
