■ Thermocouples

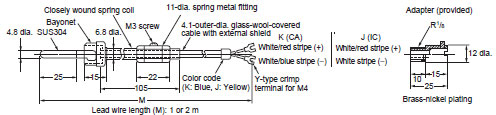

E52-CA2GV, E52-IC2GV
E52-CA2GV/E52-IC2GV_Dim
Thermocouples with Crimp Terminals
E52-CA1GT, E52-IC1GT
E52-CA1GT/E52-IC1GT_Dim
■ Platinum Resistance Thermometers
Platinum Resistance Thermometers for Surface Temperature Measurement
E52-P2GS
Platinum Resistance Thermometers for Room Temperature Measurement
E52-P10GR
E52-P10GR_Dim
Double-element Platinum Resistance Thermometers
E52-P20GW
E52-P20GW_Dim
Note: The protective tubing is of pipe construction, which must not be bent.
Waterproof Platinum Resistance Thermometers

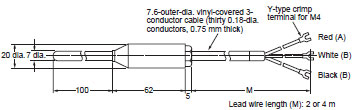

E52-P10GP
E52-P10GP_Dim
Note: The lead wires are vinyl-covered, and cannot be used underwater. Use the E52-P5A-40 if waterproof lead wires are required for use underwater. Refer to Datasheet.
■ Corrosion-resistant Models with Fluororesin-covered Protective Tubing
Thermocouples(Exposed-lead Models)
E52-CA20A-1
E52-CA20A-1_Lineup,Dim
Platinum Measurement(Exposed-lead Models)
E52-P20A-1
E52-P20A-1_Dim
FEP-molded Models (Completely Waterproof)
E52-P5A-40
E52-P5A-40_Dim
■ Pressure-resistant Explosion-proof (d2G4) Models
Thermocouples(Enclosed-terminal Models)
E52-CA□□C-6
E52-CA□□C-6_Dim
Platinum Resistance Thermometers for Surface Temperature Measurement(Enclosed-terminal Models)
E52-P□□C-6
E52-P□□C-6_Dim
■ Double-element Models
Thermocouple(Exposed-lead Models)
E52-CA20A-7
E52-CA20A-7_Dim
Platinum Resistance Thermometers(Exposed-lead Models)

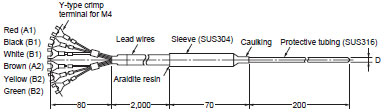

E52-P20A-7
E52-P20A-7_Dim
Platinum Resistance Thermometers(Enclosed-terminal Models)
E52-P20C-7
E52-P20C-7_Dim
■ Models with Silicone-covered Lead Wires for Movable Parts
Thermocouples(Exposed-lead Models with Screws)

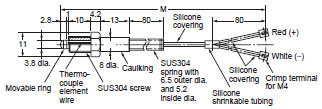

E52-CA1D-40
E52-CA1D-40_Dim
Thermocouples with Crimp Terminals

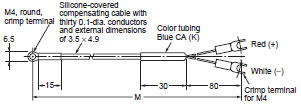

E52-CA1GT-14
E52-CA1GT-14_Dim
