Functions

V600-HAR91/-HAR81 (Read-only type)

V600-HAR92 (Read-only type)

Reads the 8-bit data (1 byte) of the set address and outputs to the 8 data output lines.

Reads the 16-bit data (2 bytes) of the set address and outputs to the 16 data output lines.

V600-HAM91/-HAM81 (Multi-functional type)

The amplifier has the following three basic functions.

Read

Reads the 8-bit (1 byte) data of the set address and outputs to the 8 data output lines.

Write

Writes on the set address the 8-bit (1 byte) data designated via the 8 data input lines.

Verify

Reads the 8-bit data (1 byte) of the set address, compares with the
8-bit (1 byte) data input via the 8 verification data input lines, and outputs
the verification result.

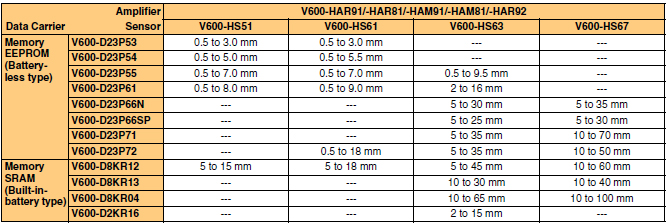

■	Transmission Distance Specifications

Recommended Combinations

Note: 1. The specifications take fluctuations in ambient temperature and slight differences between products into account.

2. The read distance and write distance are the same.

3. Sensor Installation Conditions

V600-HS51: When flush-mounted in iron
Axial offset from the Data Carrier: ±2.0 mm

V600-HS61: When surface-mounted on metal (ferrous)
Axial offset from the Data Carrier: ±2.0 mm

V600-HS63: When surface-mounted on metal (ferrous)
Axial offset from the Data Carrier: ±10.0 mm

V600-HS67: When surface-mounted on metal (ferrous)
Axial offset from the Data Carrier: ±10.0 mm

4. Data Carrier Installation Conditions

V600-D23P53/-P54:

When flush-mounted in iron

V600-D23P55/-P66N/-P66SP/-P71/-P72:

When surface-mounted on resin (no metal on the backside)

V600-D23P61:

When surface-mounted on metal (ferrous)

V600-D8KR12/-13/-04:

When surface-mounted on metal (ferrous)

V600-D2KR16:

When the Data Carrier attached to the holder is mounted on a metal (ferrous) surface

5. The transmission distance specified in the specifications is also applicable when the Data Carrier is mounted on non-metallic surfaces.

6. The Data Carrier is stationary.
