GlobalD5C-1AS0
Touch Switch
Touch switches (18 dia.), Equivalent to IP67, Coil spring, LED, Vinyl insulated round cable (oil and shock resistant type) 3 m
| Shape/Structure |
Touch switches (18 dia.) |
|---|---|
| Actuator |
Coil spring |
| Electrical ratings |
100 to 240 VAC (45 to 264 VAC) |
| Cable specifications |
Vinyl insulated round cable (oil and shock resistant type), 2 cores, 3 m |
| Degree of protection |
Equivalent to IP67 |
- Ratings / Performance
As of July 25, 2022
| Shape/Structure | Touch switches (18 dia.) |
|---|---|
| ctuator | Coil spring 1.2 dia. |
| Electrical ratings | 100 to 240 VAC (45 to 264 VAC) |
| Frequency | 50/60 Hz |
| 30 to 100 pF | |
| Leakage current | Antenna: 1 mA max. Circuit: 2 mA max. |
| Response time | 8 ms max. |
| Indicator | LED |
| Cable specifications | Vinyl insulated round cable (oil and shock resistant type), 2 cores, 3 m Nominal sectional area: 0.3 mm2 Diameter: 4 dia. |
| Ambient temperature | Operating: -25 to 70 ℃ (with no icing) |
| Ambient humidity | 35 to 95 % |
| Insulation resistance | Between lead wires and case: 50 MΩ min. (at 500 VDC) |
|---|---|
| Dielectric strength | Between charged parts and non-live-metallic part: 2,000 VAC 50/60 Hz 1 min |
| Durability | Mechanical: 10,000,000 operations min. (at rated overtravel value) |
| Vibration resistance | 10 to 55 Hz, 1.5 mm double amplitude |
| Shock resistance | 1,000 m/s2 max. |
| Degree of protection | Equivalent to IP67 |
| Classification of protection against electric shock | Class II |
| Weight | Approx. 120 g |
As of July 25, 2022

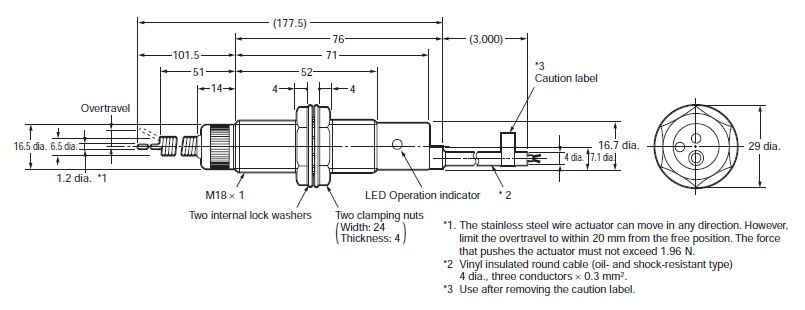

- Dimensions
As of July 25, 2022
Mounting hole dimensions
As of July 25, 2022

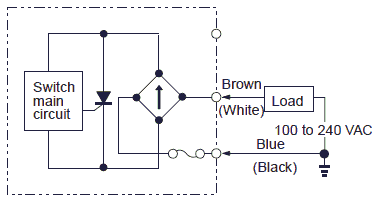

- Circuits configuration
As of July 25, 2022
As of July 25, 2022
