GlobalD5C-1DP0
Touch Switch
Touch switches (18 dia.), Equivalent to IP67, Plunger, LED, Vinyl insulated round cable (oil and shock resistant type) 3 m
| Shape/Structure |
Touch switches (18 dia.) |
|---|---|
| Actuator |
Plunger |
| Electrical ratings |
12 to 24 VDC (10 to 30 VDC) ripple(p-p) 10% max. |
| Cable specifications |
Vinyl insulated round cable (oil and shock resistant type), 3 cores, 3 m |
| Degree of protection |
Equivalent to IP67 |
- Ratings / Performance
As of July 25, 2022
| Shape/Structure | Touch switches (18 dia.) |
|---|---|
| ctuator | Plunger 5 dia. Stainless steel plunger |
| Electrical ratings | 12 to 24 VDC (10 to 30 VDC) ripple(p-p) 10% max. |
| Current consumption/Power consumption | 17 mA max. |
| 30 to 100 pF | |
| Leakage current | Antenna: 1 mA max. |
| Response time | 2 ms max. |
| Indicator | LED |
| Cable specifications | Vinyl insulated round cable (oil and shock resistant type), 3 cores, 3 m Nominal sectional area: 0.2 mm2 Diameter: 4 dia. |
| Ambient temperature | Operating: -25 to 70 ℃ (with no icing) |
| Ambient humidity | 35 to 95 % |
| Insulation resistance | Between lead wires and case: 50 MΩ min. (at 500 VDC) |
|---|---|
| Dielectric strength | Between charged parts and non-live-metallic part: 1,000 VAC 50/60 Hz 1 min |
| Durability | Mechanical: 10,000,000 operations min. (at rated overtravel value) |
| Vibration resistance | 10 to 55 Hz, 1.5 mm double amplitude |
| Shock resistance | 1,000 m/s2 max. |
| Degree of protection | Equivalent to IP67 |
| Classification of protection against electric shock | Class II |
As of July 25, 2022

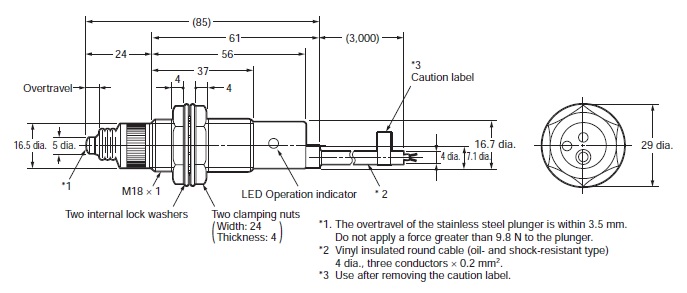

- Dimensions
As of July 25, 2022

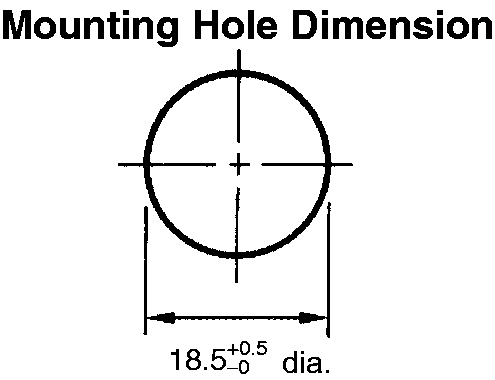

Mounting hole dimensions
As of July 25, 2022

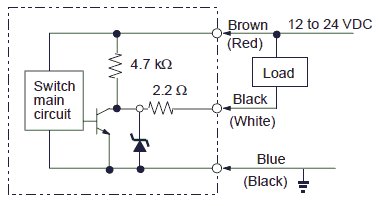

- Circuits configuration
As of July 25, 2022
As of July 25, 2022
