GlobalM2SJ-90A1-05SR
Indicator (Square) Ultra Bright LED Type
Square body, LED bulb, Red, Lamp:5 VDC Red, Quick connect terminal (#110)
| Type |
Indicator (Square) Ultra Bright LED Type |
|---|---|
| Shape |
Square body type |
| Color of lamp unit |
Rectangular Single screen Red |
| Lighted method |
LED bulb |
| Terminal |
Quick connect terminal (#110) |
- Ratings
As of September 7, 2020
| Type | Indicator (Square) Ultra Bright LED Type | |
|---|---|---|
| Shape | Square body type | |
| Operating portion | Shape of lamp unit | Rectangular | Split method | Single screen | Color of lamp unit | Red |
| Lamp | Method of lamp unit | LED bulb | Lamp color | Red | Rated voltage | 5 VDC | Operating voltage | 5 VDC ±5% | Rated current | 8 mA |
| Terminal specifications | Quick connect terminal (#110) | |
| Ambient temperature range | Operating: -10 to 50 ℃ (with no freezing or condensation) Storage: -25 to 65 ℃ (with no freezing or condensation) | |
| Ambient humidity range | Operating: 35 to 85% RH | |
As of September 7, 2020

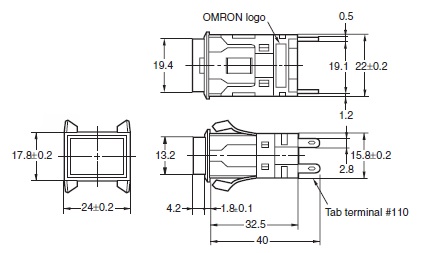

- Dimensions
As of September 7, 2020
As of September 7, 2020

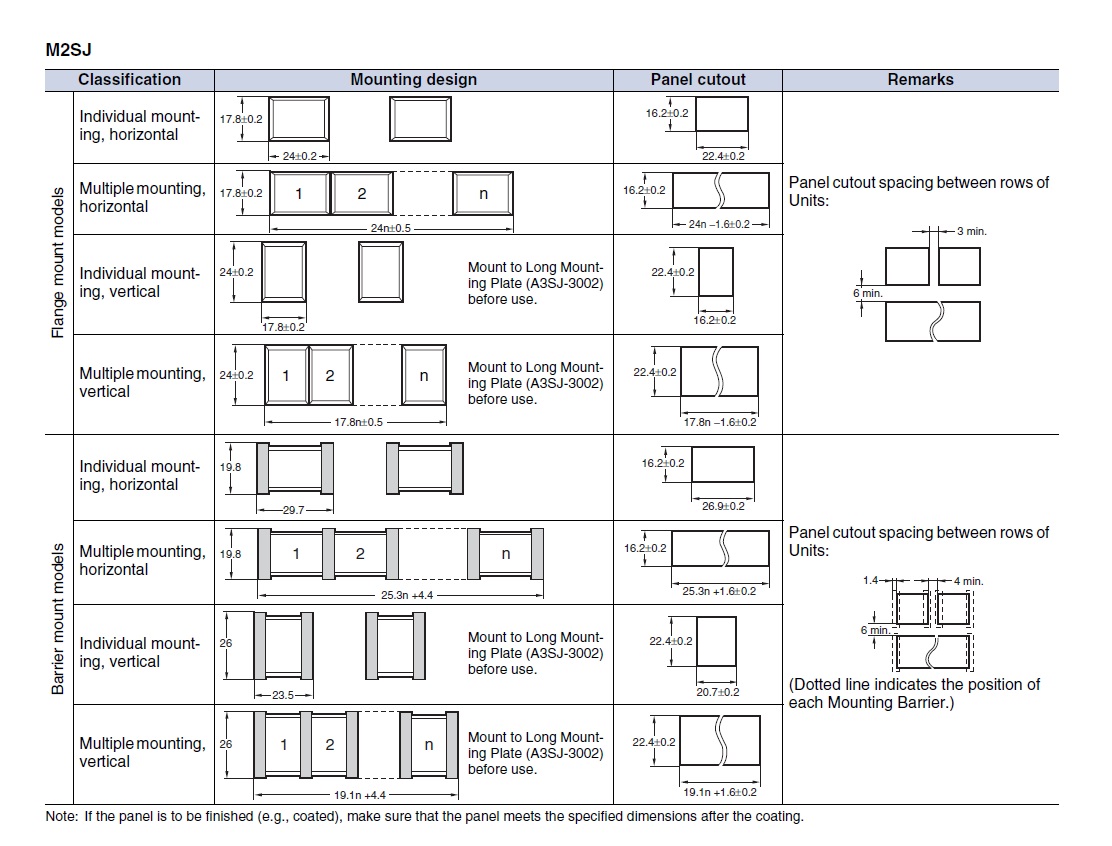

- Mounting hole dimensions
As of September 7, 2020
As of September 7, 2020
