H5AN-4DM AC100-240

Digital Timer


72 mm x 72 mm x 130 mm, 100 to 240 VAC (50/60 Hz), Time range (8 range), Output SPDT, Screw terminal, Memory backup

Rated supply voltage	100 to 240 VAC
Time range	0.01 s to 9999 h
Input method	Contact: Contact open and short-circuit input No-contact: Open-collector transistor ON/OFF input
Control output	SPDT
Display mode	Elapsed time (UP) and remaining time (DOWN) (selectable)
Display method	7-segment LED 4 digit
External connection method	Screw terminal

Item list of H5AN

Ratings/Performance

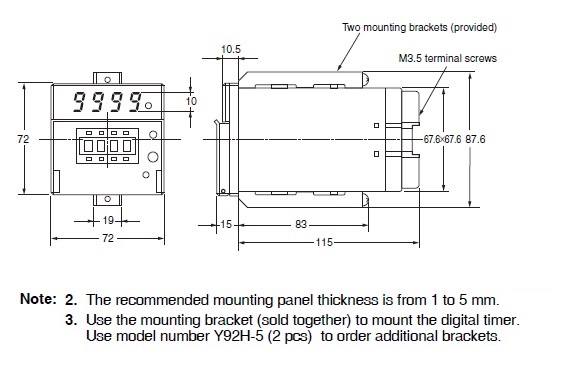

Dimensions

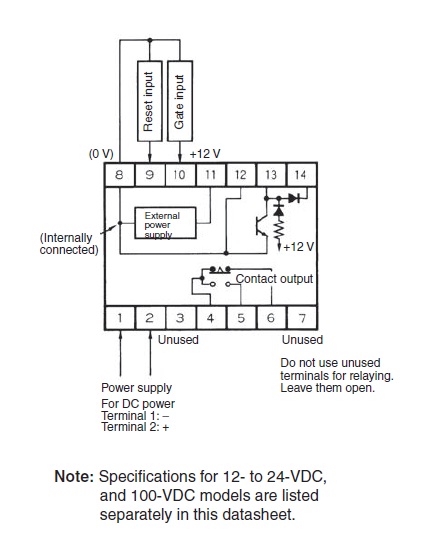

Terminal arrangement

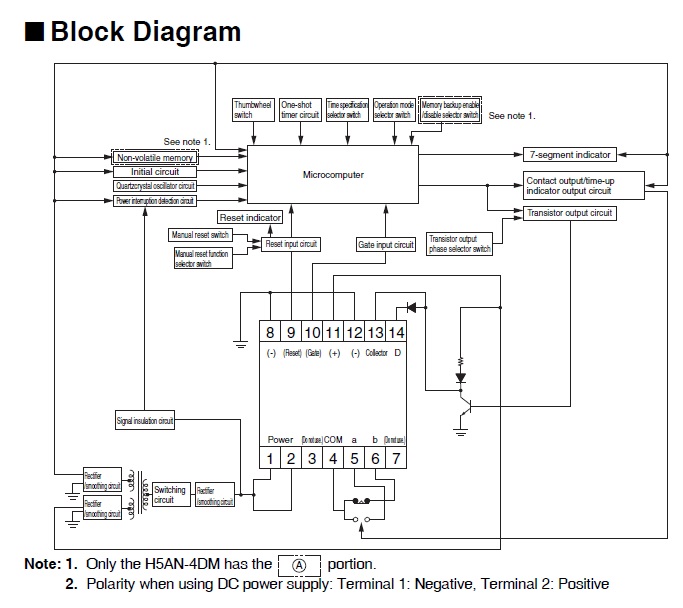

Block diagram

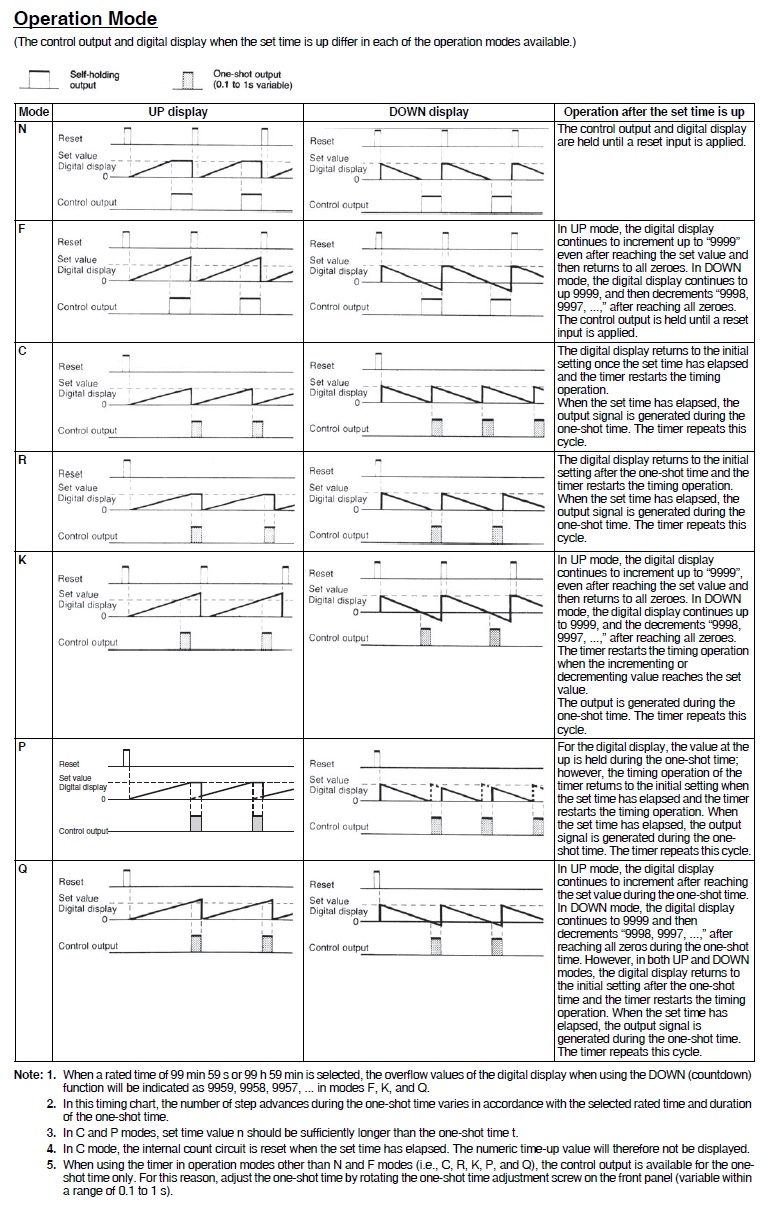

Operating chart

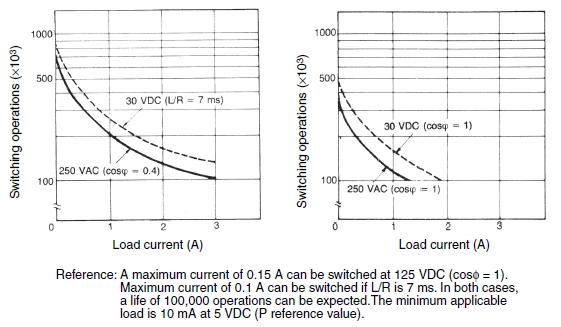

Electrical life

Ratings/Performance

As of August 25, 2020


Rated supply voltage	100 to 240 VAC (50/60 Hz)
Operating voltage range	85 to 110% of rated supply voltage
External power supply	12 VDC ±10% 80 mA (5% ripple max.)
Power consumption	Approx. 10 VA (at 240 VAC)
Time ranges（Number of ranges）	8
Time ranges	0.01 to 99.99 s 0.1 to 999.9 s 1 to 9999 s 0.1 to 999.9 min 0.1 to 999.9 h 1 to 9999 h 1 s to 99 min 59 s 1 min to 99 h 59 min
Input method	Contact: Contact open and short-circuit input No-contact: Open-collector transistor ON/OFF input
Output modes	N/F/C/R/K/P/Q
Control output （Contact output）	SPDT Resistive load: 3 A at 250 VAC (cosφ=1) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value)
Control output （Solid state output）	1 pointTransistor output (open collector) Switching capacities: 30 VDC max., 100 mA max.
Reset system	External reset/Manual reset/Automatic reset
External reset and Gate	Minimum input signal width: 0.02 s
Timer mode	Elapsed time (UP) and remaining time (DOWN) (selectable)
Display method	7-segment LED 4 digit
Character height	10 mm
Memory backup method	Non-volatile memory (number of writes: 1,000,000 operations min., Service life: Approx. 10 years)
Ambient temperature (Operating)	-10 to 55 ℃ (with no icing)
Ambient temperature (Storage)	-25 to 65 ℃ (with no icing)
Ambient humidity (Operating)	35 to 85%
Accuracy of operating time	Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.)
Setting error	Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.)
Influence of voltage	Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.)
Influence of temperature	Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.)
Insulation resistance	Between current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC) Between non-continuous contacts: 100 MΩ min. (at 500 VDC)
Dielectric strength	Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min Between non-continuous contacts: 750 VAC 50/60 Hz 1 min
Impulse withstand voltage	Between operating power supply terminals: 6 kV Between current carrying terminals and exposed non-current carrying metal parts: 6 kV
Noise immunity	Between operating power supply terminals: ±2 kV Between input terminals: ±500 kV Square-wave noise by noise simulator
Static immunity	Mulfunction: 8 kV
Vibration resistance	Destruction: 10 to 55 Hz, 0.375 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.25 mm single amplitude each in 3 directions for 10 min
Shock resistance	Destruction: 300 m/s², 3 times each in 6 directions Malfunction: 100 m/s², 4 times each in 6 directions
Life expectancy	Electrical: 100,000 operations min. (3 A at 250 VAC resistive load) Mechanical: 10 million operations min.
Mounting method	Flush mounting
External connection method	Screw terminal
Case color	Light gray (Munsell 5Y7/1)
Attachment	Mounting Bracket
Accessory (sold separately)	Mounting Bracket: Y92H-5
Weight	Approx. 360 g
