GlobalG3B-205S-VD DC5-24
Solid State Relays G3[]-VD
Input: 5 to 24 VDC, Output: 100 to 240 VAC, Load current: 0.1 to 5 A, Zero cross function, Plug-in terminal, International standard certified
| Product classification |
Relay compatible |
|---|---|
| Zero cross function |
Equipped |
| Operating indicator |
Equipped |
| Rated voltage |
5 to 24 VDC |
| Rated load voltage |
100 to 240 VAC |
| Load current |
0.1 to 5 A (at 40 ℃) |
| Terminal structure |
Plug-in terminal |
- Ratings / Performance
As of April 14, 2021
| Product classification | Relay compatible | |
|---|---|---|
| Isolation method | Photocoupler | |
| Zero cross function | Equipped | |
| Operating indicator | Equipped | |
| Terminal structure | Plug-in terminal | |
| Mounting | Socket | |
| Input | Rated voltage | 5 to 24 VDC | Operating voltage range | 4 to 30 VDC | Input impedance | 15 mA max. (Constant-current input circuit) | Operate voltage | 4 VDC max. | Release voltage | 1 VDC min. |
| Output | Rated load voltage | 100 to 240 VAC | Load voltage range | 75 to 264 VAC | Load current | 0.1 to 5 A (at 40 ℃) | Inrush current resistivity | 80 A (60 Hz 1 cycle) |
| Operate time | 1/2 cycle of load power source + 1 ms max. |
|---|---|
| Release time | 1/2 cycle of load power source + 1 ms max. |
| Output ON voltage drop | 1.6 V max. (RMS) |
| Leakage current | 5 mA max. (at 100 VAC) 10 mA max. (at 200 VAC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 2000 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock resistance | 1000 m/s2 |
| Ambient temperature (Operating) | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85% RH |
| Weight | Approx. 70 g |
| Other feature | Certified by UL, CSA, and EN (VDE) |
As of April 14, 2021
- Outline drawing
As of April 14, 2021
As of April 14, 2021
- Connection diagra
As of April 14, 2021
Terminal arrangement and internal connection
As of April 14, 2021
- Characteristic chart
As of April 14, 2021

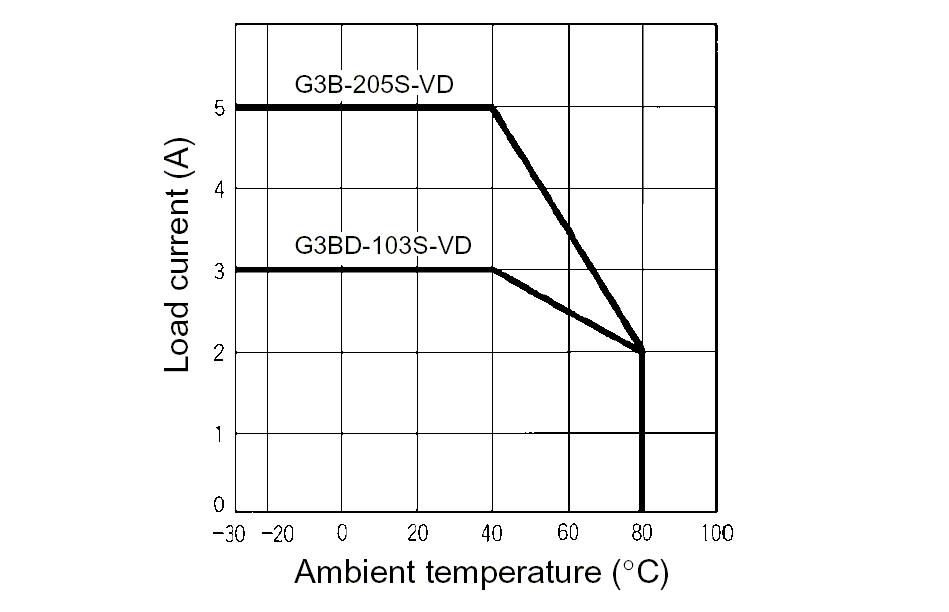

Load current-ambient temperature
Inrush current resistivity (Non-repetitive)
As of April 14, 2021
