Touch Switch
Unique 18-mm-dia. Capacitive Touch Switch with Choice of Three Actuators is Activated with Only a Very Slight Physical Contact
Related Contents
- Limit Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: January 24, 2013
DC Models
Coil Spring

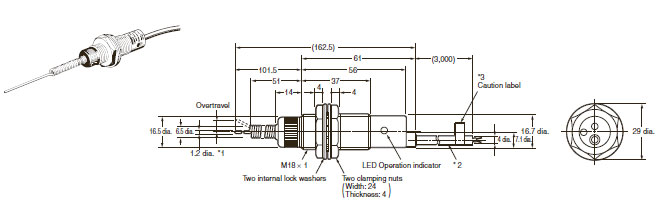

D5C-1DS0
*1. The stainless steel wire actuator can move in any direction. However, limit the overtravel to within 20 mm from the
free position. The force that pushes the actuator must not exceed 1.96 N.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm2.
*3. Use after removing the caution label.
free position. The force that pushes the actuator must not exceed 1.96 N.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm2.
*3. Use after removing the caution label.

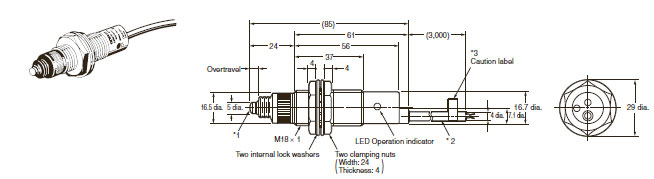

Plunger

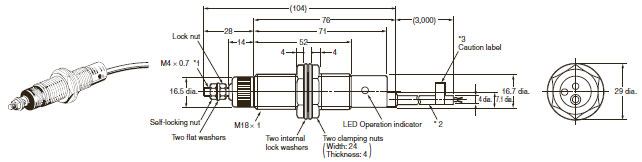

D5C-1DP0
*1. The overtravel of the stainless steel plunger is within 3.5 mm.
Do not apply a force greater than 9.8 N to the plunger.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm2.
*3. Use after removing the caution label.
Do not apply a force greater than 9.8 N to the plunger.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm2.
*3. Use after removing the caution label.
Free-attachment

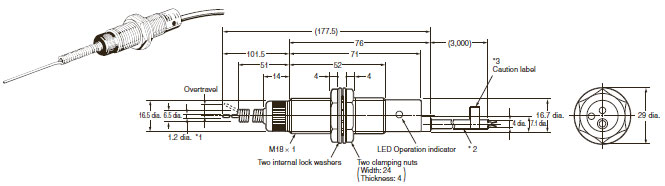

D5C-1DA0
*1. Limit the total length of actuator wire to 1 m or less.
When mounting the Switch to a metal plate, do not exceed an area of 200 cm2.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm2.
*3. Use after removing the caution label.
When mounting the Switch to a metal plate, do not exceed an area of 200 cm2.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm2.
*3. Use after removing the caution label.
AC Models
Coil Spring
D5C-1AS0
*1. The stainless steel wire actuator can move in any direction. However, limit the overtravel to within 20 mm from the
free position. The force that pushes the actuator must not exceed 1.96 N.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm2.
*3. Use after removing the caution label.
free position. The force that pushes the actuator must not exceed 1.96 N.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm2.
*3. Use after removing the caution label.
Plunger

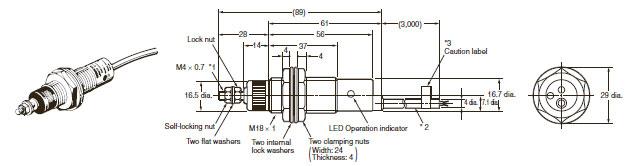

D5C-1AP0
*1. The overtravel of the stainless steel plunger is within 3.5 mm.
Do not apply a force greater than 9.8 N to the plunger.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm2.
*3. Use after removing the caution label.
Do not apply a force greater than 9.8 N to the plunger.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm2.
*3. Use after removing the caution label.
Free-attachment

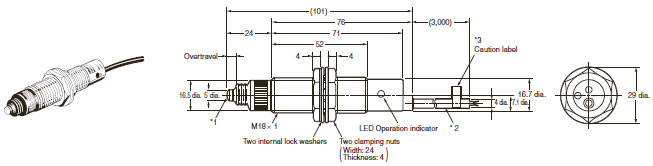

D5C-1AA0
*1. Limit the total length of actuator wire to 1 m or less.
When mounting the Switch to a metal plate, do not exceed an area of 200 cm2.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm2.
*3. Use after removing the caution label.
When mounting the Switch to a metal plate, do not exceed an area of 200 cm2.
*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm2.
*3. Use after removing the caution label.
