E2C-JC4EH 2M

Separate Amplifier Proximity Sensor with Adjustment Potentiometer


Amplifier unit, DC Three-wires models, Operation mode NO/NC selectable, NPN open collector, Heat-resistance model, Pre-wired models (2 m)

Sensing head size 14 mm x 30 mm x 60 mm
Type Amplifier Unit
Operation mode NO/NC selectable

Item list of E2C / E2C-H

  • Ratings/Performance
Sensing head size14 mm x 30 mm x 60 mm
Type Amplifier Unit
Power sourceDC Three-wires models
Power supply voltage12 to 24 VDC (ripple (p-p) 10% max.)
Operating voltage range10 to 30 VDC
Current consumption45 mA max.
Control output (Output type)NPN open collector
Control output (Switching capacity)100 mA max. (30 VDC max.)
Control output (Residual voltage)0.8 V max.
IndicatorDetection indicator (red)
Operation modeNO/NC selectable
Sensitivity settingSensitivity adjuster
Ambient temperatureOperating: -10 to 55℃
Storage: -10 to 55℃
Ambient humidityOperating: 35 to 85%
Storage: 35 to 85%
Temperature influence±0.08%/℃
Voltage influence±2% max. of sensing distance at rated voltage in the rated voltage ±20% range
Insulation resistanceBetween charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strengthBetween charged parts and the case: 1000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 100 m/s**2 3 times each in X, Y, and Z directions
Degree of protectionIEC: IP20
Connection methodPre-wired models (Cable length: 2 m)
WeightPackage: Approx. 80 g
AccessoriesCaution labe, Mounting bracket, Instruction manual
Amplifier unit/sensor head of combinationE2C-GE4A, E2C-GF4A, E2C-JC4AP, E2C-JC4A, E2C-AM4A, E2C-AK4A

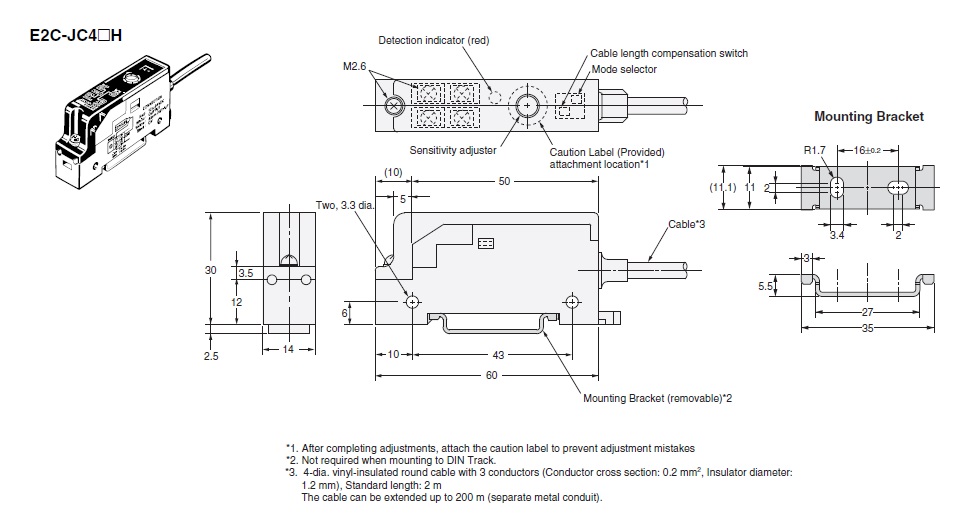

  • Dimensions

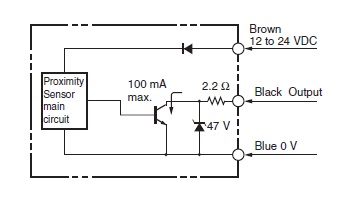

  • Output circuit

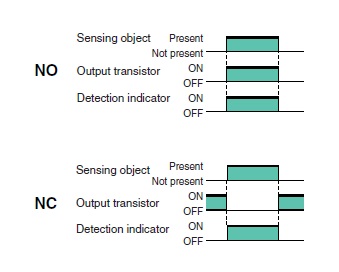

Timing chart
