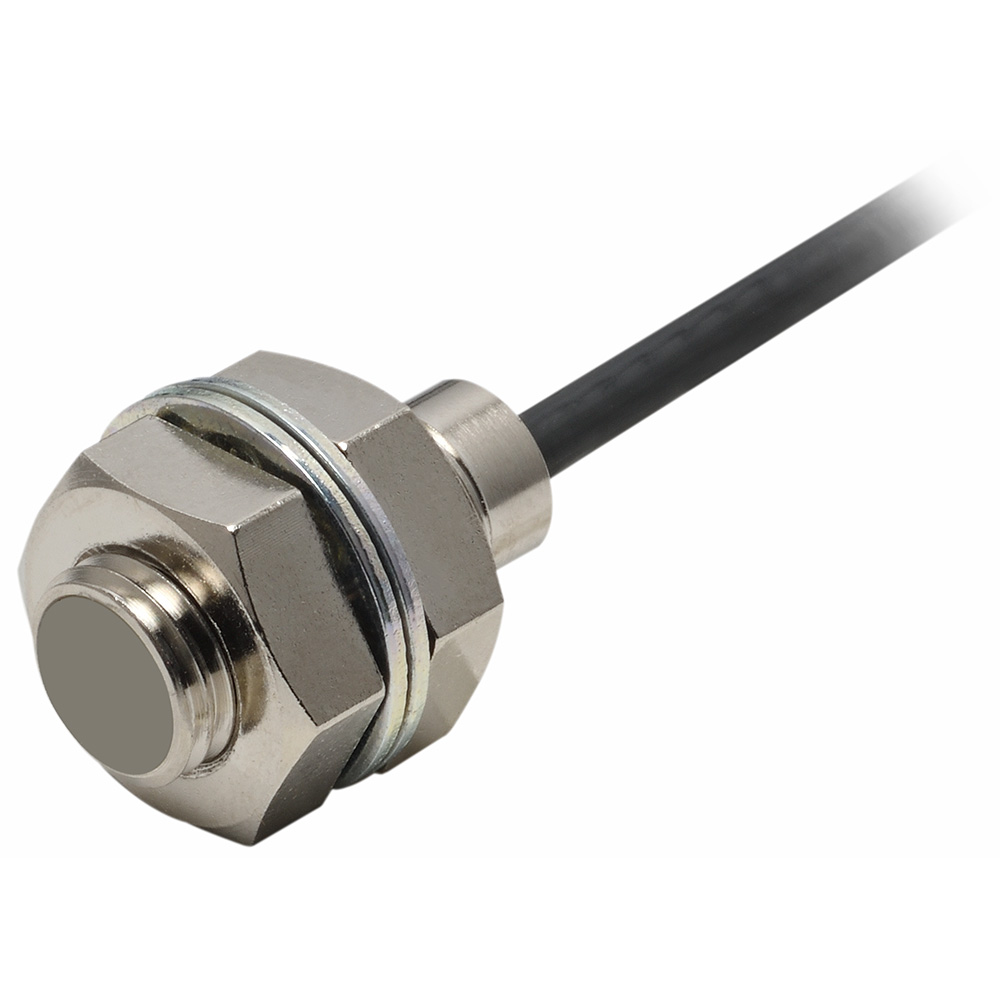

E2C-X1R5AH 3M

Separate Amplifier Proximity Sensor with Adjustment Potentiometer


Sensor Head, Shielded, Cylinder typeM8, Sensing distance 1.5 mm, Heat-resistance model, Pre-wired models (3 m)

Sensing head size M8
Type Cylinder type (with screw) Sensor Head、Shielded
Sensing distance 1.5 mm

Item list of E2C / E2C-H

  • Ratings/Performance
Sensing head sizeM8
TypeCylinder type (with screw) Sensor Head、Shielded
Sensing distance1.5 mm
Differential distance0.04 mm max.
Sensing objectFerrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing objectIron 8 x 8 x 1 mm
Response frequency300 Hz
Ambient temperatureOperating: -10 to 200℃
Storage: -10 to 200℃
Ambient humidityOperating: 35 to 95%
Storage: 35 to 95%
Temperature influence±0.2%/℃
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP60
Connection methodPre-wired models (Cable length: 3 m)
WeightPackage: Approx. 50 g
MaterialCase: Brass
Sensing surface: PEEK
Cable: Fluoride resin
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating
Amplifier unit/sensor head of combinationE2C-AM4A, E2C-AK4A
  • Dimensions

  • Mutual interference

A: 20 mm min., B: 15 mm min.

  • Effects of surrounding metals

l: 0 mm min., dia. d: 8 mm min., D: 0 mm min., m: 4.5 mm min.

  • Characteristic chart

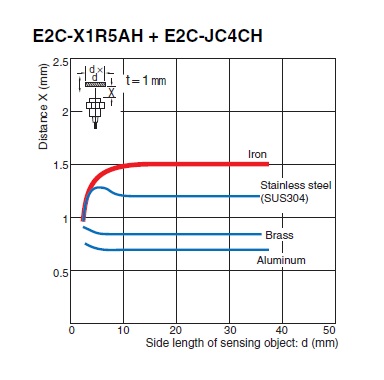

Sensing distance vs. size and material of sensing object

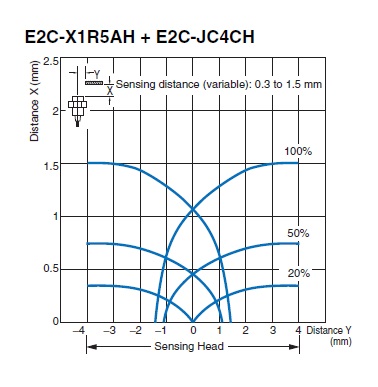

Sensing range

Series

Separate Amplifier Proximity Sensor with Adjustment Potentiometer

E2C / E2C-H

about this Product
