E2C-X5AH 3M

Separate Amplifier Proximity Sensor with Adjustment Potentiometer


Sensor Head, Shielded, Cylinder typeM18, Sensing distance 5 mm, Heat-resistance model, Pre-wired models (3 m)

Sensing head size M18
Type Cylinder type (with screw) Sensor Head、Shielded
Sensing distance 5 mm

Item list of E2C / E2C-H

  • Ratings/Performance
Sensing head sizeM18
TypeCylinder type (with screw) Sensor Head、Shielded
Sensing distance5 mm
Differential distance0.1 mm max.
Sensing objectFerrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing objectIron 18 x 18 x 1 mm
Response frequency300 Hz
Ambient temperatureOperating: -10 to 200℃
Storage: -10 to 200℃
Ambient humidityOperating: 35 to 95%
Storage: 35 to 95%
Temperature influence±0.2%/℃
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP60
Connection methodPre-wired models (Cable length: 3 m)
WeightPackage: Approx. 140 g
MaterialCase: Brass
Sensing surface: PEEK
Cable: Fluoride resin
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating
Amplifier unit/sensor head of combinationE2C-JC4EH
  • Dimensions

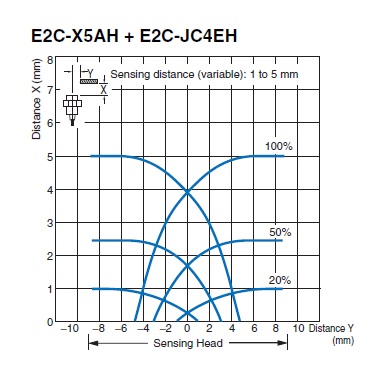

  • Sensing range

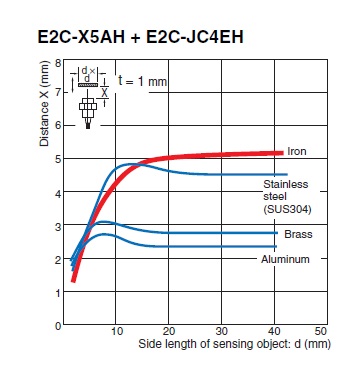

  • Sensing distance vs. size and material of sensing object

  • Mutual interference

  • Effects of surrounding metals
