E2EC-QC2D1-M1GJ-T 0.3M

Stainless Steel Sensing Surface Amplifier Proximity Sensor


Stainless Steel Sensing Surface Amplifier Proximity Sensor, Spatter-resistant type, Shielded, 8 dia., Sensing distance: 2 mm, DC 2-wire, No polarity, NO, Pre-wired connector model, 0.3 m

Sensing head size	8 dia.
Type	Cylinder type, Shielded
Power source	DC 2-wire models
Sensing distance	2 mm ±10%
Setting distance	0 to 1.4 mm
Operation mode	NO

Item list of E2EC-M / -Q

Ratings/Performance

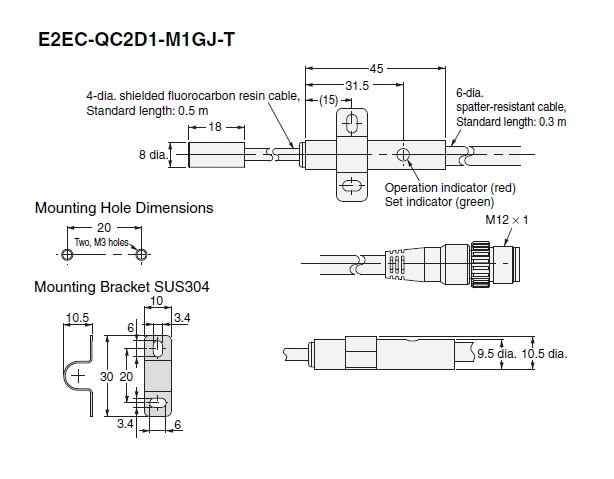

Dimensions

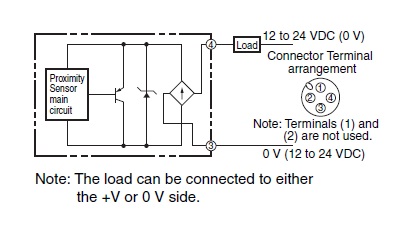

Output circuit
Mutual interference
Effects of surrounding metals
Characteristic chart

Ratings/Performance

As of August 8, 2024


Sensing head size	8 dia.
Type	Cylinder type, Shielded
Power source	DC 2-wire models
Sensing distance	2 mm ±10%
Setting distance	0 to 1.4 mm
Differential distance	15% max. of sensing distance
Sensing object	Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object	Iron 8 x 8 x 1 mm
Response frequency	100 Hz
Power supply voltage	12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range	10 to 30 VDC
Leakage current	0.8 mA max.
Control output (Switching capacity)	3 to 50 mA
Control output (Residual voltage)	5 V max. (Load current 50 mA with cable length of 2 m)
Indicator	Operation indicator (red), Operation setting indicator (green)
Operation mode	NO
Polarity	No polarity
Protective circuit	Output short-cut protection Surge suppressor
Ambient temperature (Operating)	-25 to 70 ℃
Ambient temperature (Storage)	-25 to 70 ℃
Ambient humidity (Operating)	35 to 95 %
Ambient humidity (Storage)	35 to 95 %
Temperature influence	±20% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃
Voltage influence	±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance	Between charged parts and the case: 50 MΩ min. at 500 VDC
Dielectric strength	Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance	Destruction: 1000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC: IP67 Company standard: Oil-proof (For Sensor Head only)
Connection method	Pre-wired M12 connector models (0.3 m)
Weight	Package: Approx. 95 g
Material	Sensor Head Case: Stainless steel (SUS303) Fluoride resin coating Sensing surface: Stainless steel (SUS303) Fluoride resin coating Sensor Head Cable: Fluoro-rubber (Shielded) Cable Amplifier Case: Stainless steel (SUS303) Cable Amplifier Cable: Fluorocarbon cable (flameresistant)
Accessories	Instruction manual, Amplifier Mountig Brackets
