GlobalE2J-W10MA 1M
Long Sensing-distance Capacitive Separate Amplifier Proximity Sensor
Long Sensing-distance Capacitive Separate Amplifier Proximity Sensor, Sensor, Flat, Unshielded, Sensing distance: 10 mm, Pre-wired model, 1 m
| Sensing head size |
20 mm x 5.5 mm x 30 mm |
|---|---|
| Type |
Long-distance type, Flat Model Sensor Head, Capacitive type, Unshielded |
| Sensing distance |
10 mm |
- Ratings/Performance
As of August 8, 2024
| Sensing head size | 20 mm x 5.5 mm x 30 mm |
|---|---|
| Type | Long-distance type, Flat Model Sensor Head, Capacitive type, Unshielded |
| Sensing distance | 10 mm |
| Differential distance | 15% max. of sensing distance |
| Sensing object | Conductor and dielectrics |
| Standard sensing object | With grounded metal 50 x 50 x 1 mm |
| Response frequency | 70 Hz |
| Indicator | Detection indicator (yellow) |
| Ambient temperature (Operating) | -10 to 55 ℃ |
| Ambient temperature (Storage) | -10 to 55 ℃ |
| Ambient humidity (Operating) | 35 to 85 % |
| Ambient humidity (Storage) | 35 to 85 % |
| Vibration resistance | Destruction: 10 to 500 Hz, 2 mm double amplitude or 150 m/s2 each in X, Y, and Z directions for 2 h |
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directions |
| Degree of protection | IEC: IP66 |
| Connection method | Pre-wired M8 connector models (1 m) |
| Weight | Package: Approx. 30 g |
| Material | Case: Heat-resistant ABS resin |
| Amplifier unit/sensor head of combination | E2J-JC4A |
As of August 8, 2024
- Dimensions
As of August 8, 2024

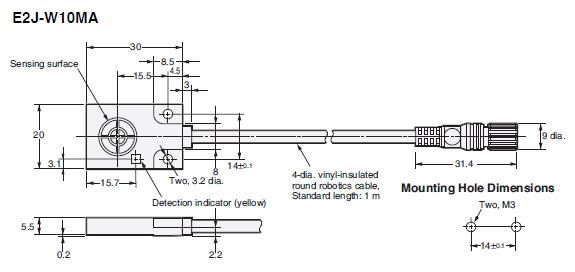

Dimensions
As of August 8, 2024
- Output circuit
As of August 8, 2024
Timing chart
As of August 8, 2024
- Mutual interference
As of August 8, 2024
Mutual interference
A: 20 mm min., B: 30 mm min.
As of August 8, 2024
- Effects of surrounding metals
As of August 8, 2024
Effects of surrounding metals
A: 10 mm min., B: 20 mm min.
As of August 8, 2024
- Characteristic chart
As of August 8, 2024

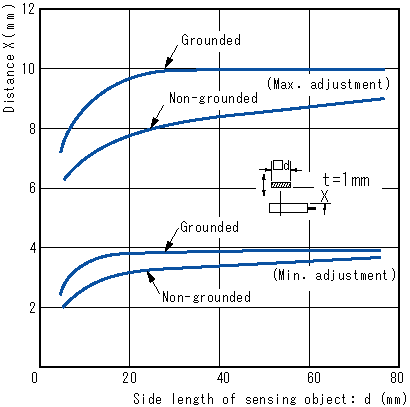

Sensing distance vs. size and material of sensing object

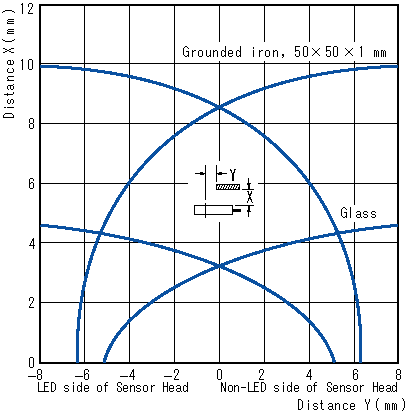

Sensing range
As of August 8, 2024
