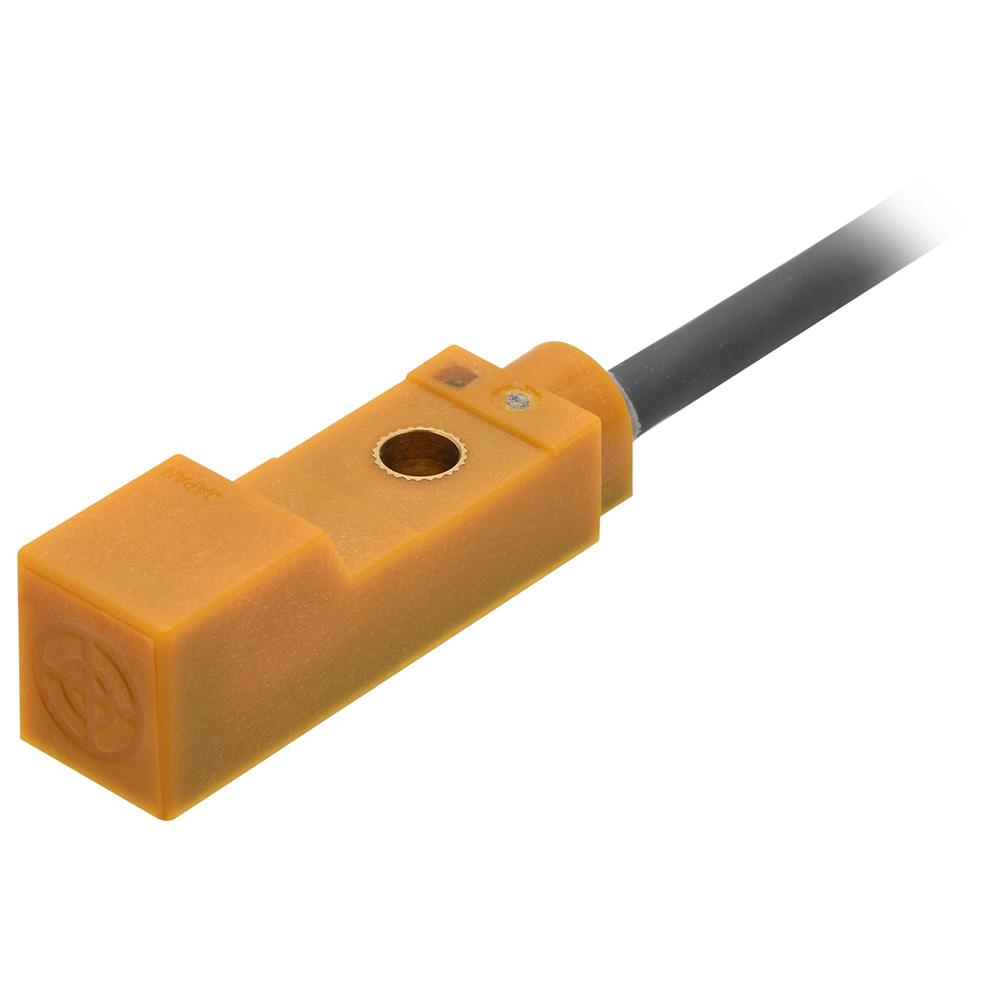

TL-Q2MC1 2M

Rectangular Standard Proximity Sensor


Unshielded, Square type, DC Three-wires models, Sensing distance 2 mm ±15%, NO, NPN open collector, Pre-wired models

Sensing head size 9 mm x 8 mm x 28 mm
Type Square type, Unshielded
Power source DC Three-wires models
Sensing distance 2 mm ±15%
Setting distance 0 to 1.5 mm
Operation mode NO

Item list of TL-N / -Q

  • Ratings/Performance
Sensing head size9 mm x 8 mm x 28 mm
TypeSquare type, Unshielded
Power sourceDC Three-wires models
Sensing distance2 mm ±15%
Setting distance0 to 1.5 mm
Differential distance10% max. of sensing distance
Sensing objectFerrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing objectIron 8 x 8 x 1 mm
Response frequency500 Hz (Average value)
Power supply voltage12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range10 to 30 VDC
Current consumptionat 24 VDC, no load: 15 mA max.
Control output (Output type)NPN open collector
Control output (Switching capacity)100 mA max. (30 VDC max.)
Control output (Residual voltage)1 V max. (Load current 100 mA with cable length of 2 m)
IndicatorDetection indicator (red)
Operation modeNO
Protective circuitReverse polarity protection
Surge suppressor
Ambient temperature (Operating)-10 to 60 ℃
Ambient temperature (Storage)-10 to 60 ℃
Ambient humidity (Operating)35 to 95% RH
Ambient humidity (Storage)35 to 95% RH
Temperature influence±10% max. of sensing distance at 23 ℃ in the temperature range of −10 to 60 ℃
Voltage influence±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistanceBetween charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strengthBetween charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protectionIEC: IP67
Company standard: Oil-proof
Connection methodPre-wired models (2 m)
WeightPackage: Approx. 60 g
MaterialCase: Heat-resistant ABS resin
Sensing surface: Heat-resistant ABS resin
AccessoriesInstruction manual
  • Dimensions

Dimensions

  • Output circuit

Output circuit

Timing chart

  • Mutual interference

Mutual interference

A: 30 mm min., B: 90 mm min.

Different frequency

A: 8 mm min., B: 45 mm min.

  • Effects of surrounding metals

Effects of surrounding metals

A: 12 mm min., B: 3 mm min.

  • Characteristic chart

Sensing distance vs. size and material of sensing object

Sensing range
