E3S-GS3E4 5M

Grooved-type Photoelectric Sensor


Grooved type photoelectric sensor, Sensing Distance 30mm, Cable length 5 m

Sensing distance 30 mm
Light source Infrared LED (950 nm)
Connection method Pre-wired models

Item list of E3S-GS3E4

  • Ratings/Performance
ShapeGrooved Type
Sensing distance30 mm
Standard sensing objectOpaque: 6 mm dia. min.
Minimum sensing object3 mm min. dia. (black mark on transparent sheet)
Light sourceInfrared LED (950 nm)
Power supply voltage12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption40 mA max.
Control outputNPN voltage output
24 VDC max.
80 mA max.
Residual voltage: 2 V max.
Operation modeLight-ON/Dark-ON selectable
Protective circuitOutput short-circuit protection, Power supply reverse polarity protection
Response timeOperate or reset: 1 ms max.
Sensitivity settingSingle-turn adjustment
Ambient illuminanceIncandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating)-25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage)-40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating)35 to 85 % (with no condensation)
Ambient humidity range (Strage)35 to 95 % (with no condensation)
Insulation resistance20 MΩ min. (500 VDC megger)
Dielectric strength1000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP67
Connection methodPre-wired models (Cable length 5 m)
IndicatorLight indicator (red), Stability indicator (green)
AccessoriesInstruction manual, Adjustment driver, Sensitivity adjuster
MaterialCase: Zinc diecast
Lens: Polycarbonate
Display: Polycarbonate

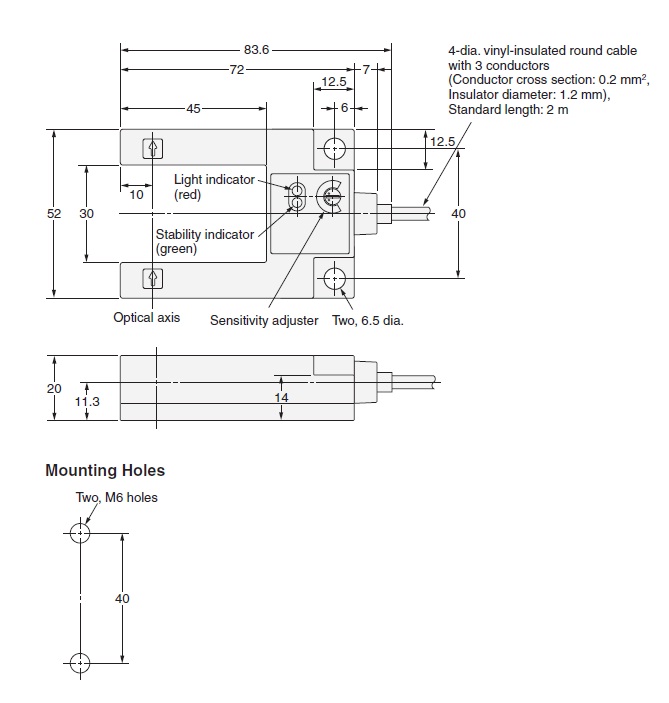

  • Dimensions

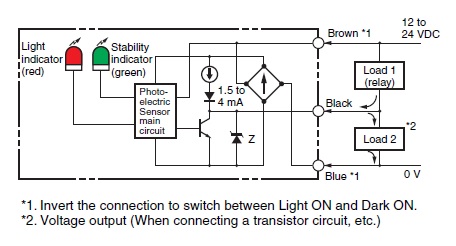

  • Output circuit diagram

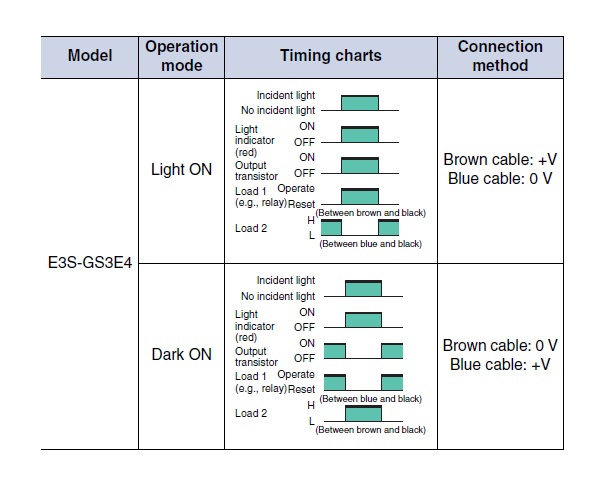

  • Timing chart

Series

Grooved-type Photoelectric Sensor

E3S-GS3E4
